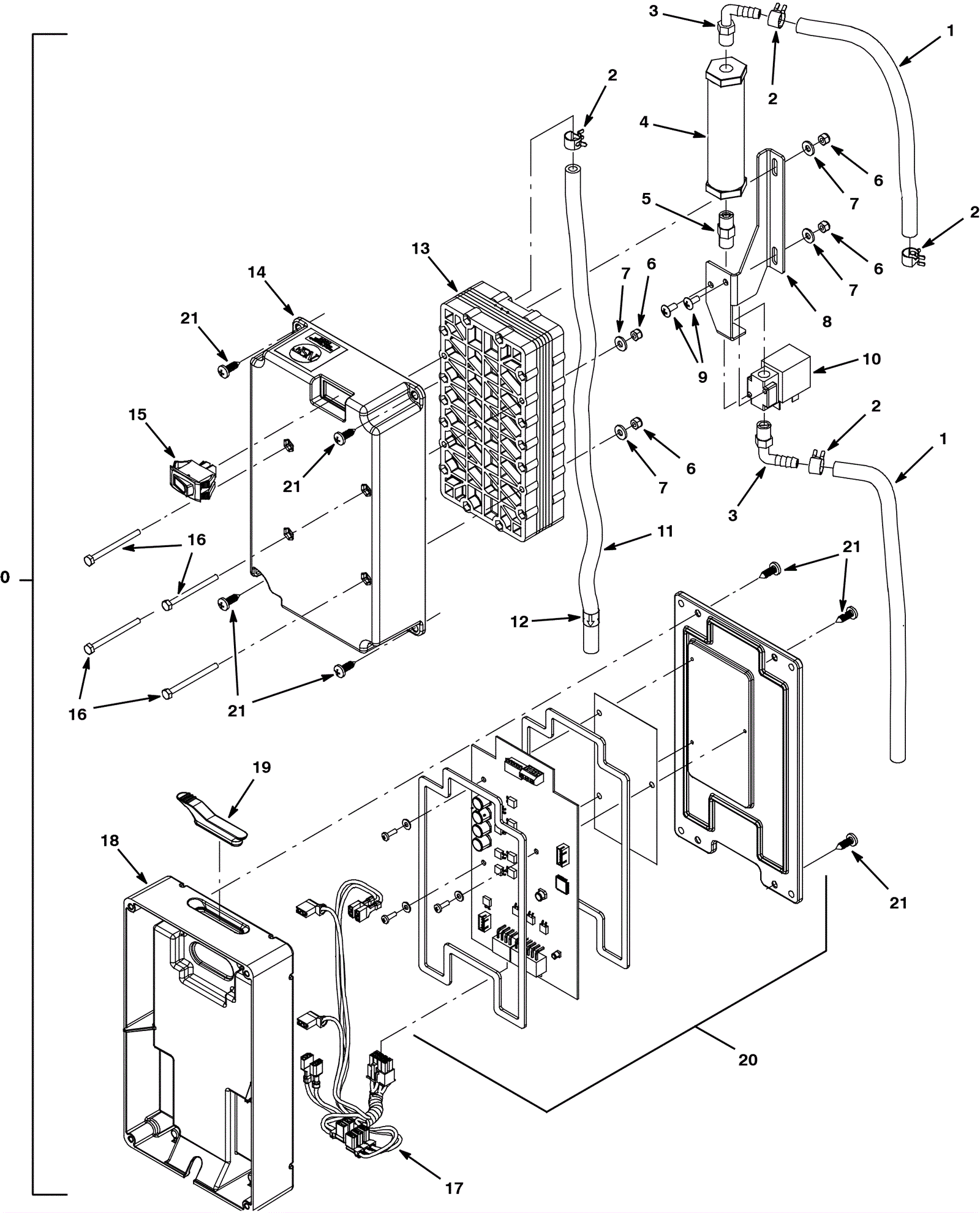

| # | Part | Description |
Req | Notes | Availability |
|---|
0 |
275-9935
|
ec-H20 module (OBSOLETE) |
1 |
(includes 1a-21) |
|
1a |
275-4953
|
Module plumbing kit |
1 |
(includes 1b-17) |
|
1b |
175-6347
|
Hose 1/4 inch x 13 foot |
1 |
|
|
2 |
175-1656
|
Hose clamp |
4 |
|
|
3 |
175-1662
|
90 degree elbow fitting |
2 |
|
|
4 |
275-9936
|
Cylindrical electrode |
1 |
|
|
5 |
275-4770
|
Straight brass fitting |
1 |
|
|
6 |
999-0954
|
Nut M4-.7 nylon insert lock stainless steel |
4 |
|
|
7 |
999-0266
|
Washer #8 SAE flat stainless steel |
4 |
|
|
8 |
275-4954
|
Valve bracket |
1 |
|
|
9 |
999-1165
|
Screw 8-32 x 3/8 truss head phillips stainless steel |
2 |
|
|
10 |
275-4769
|
24V solenoid valve (OBSOLETE) |
1 |
|
|
11 |
275-4955
|
PVC hose |
1 |
|
|
12 |
275-5731
|
Direction decal |
1 |
|
|
13 |
275-4956
|
5 plate electrode |
1 |
|
|
14 |
275-4957
|
Front module housing |
1 |
|
|
15 |
275-4773
|
Rocker switch |
1 |
|
|
16 |
999-1947
|
Screw M4-.7 x 50 hex stainless steel |
4 |
|
|
17 |
275-4958
|
Main wiring harness |
1 |
|
|
18 |
275-4761
|
Rear module housing |
1 |
|
|
19 |
275-5946
|
Grommet |
1 |
|
|
20 |
275-4775
|
Controller replacement kit (ec-H2O) |
1 |
|
|
21 |
999-0531
|
Screw M5-.8 x 16mm pan head slotted zinc |
8 |
|
|
