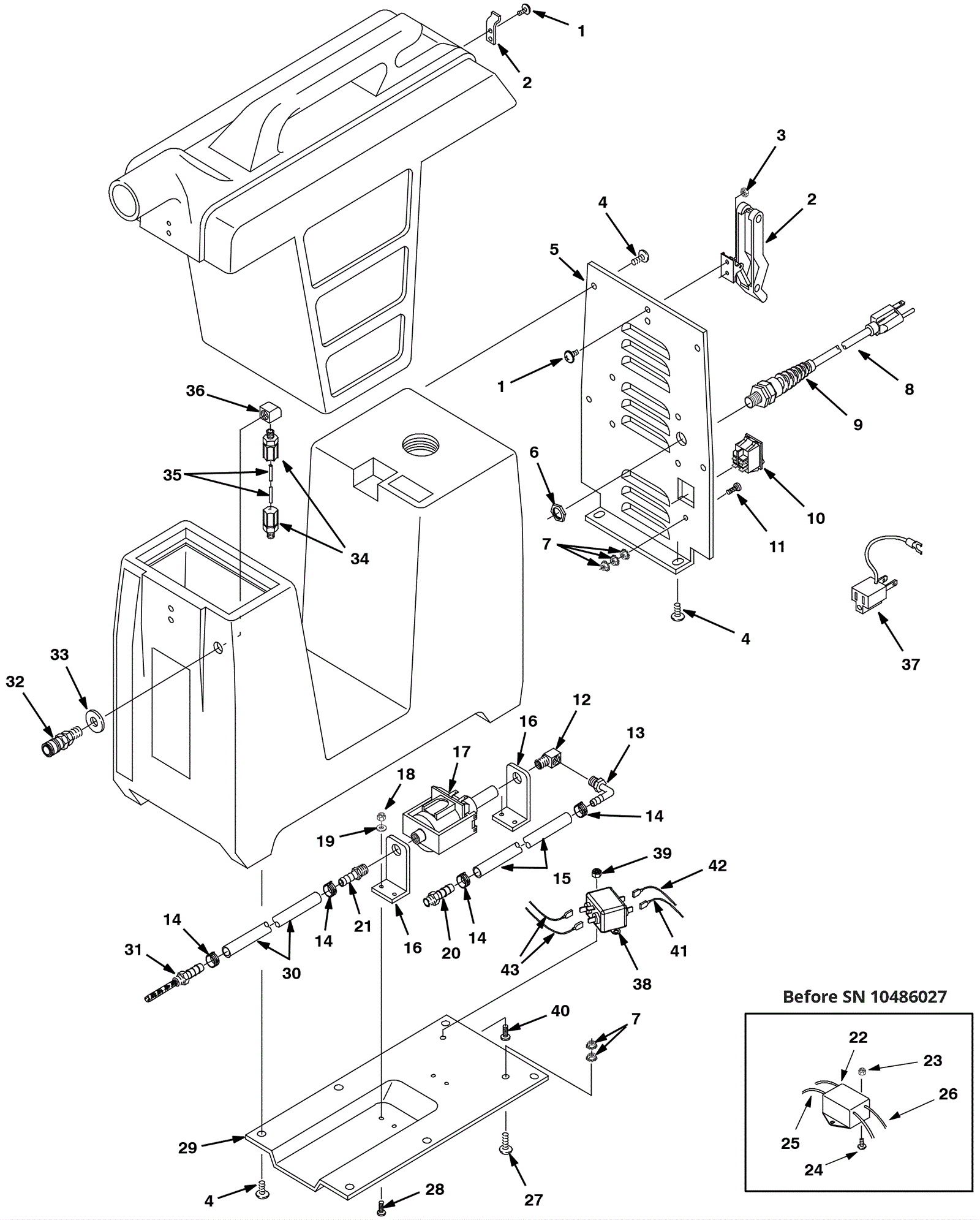

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-1165
|
Screw 8-32 x 3/8 truss head phillips stainless steel |
4 |
|
|
2 |
375-7802
|
Latch |
1 |
|
|
3 |
999-0151
|
Nut 8-32 nylon insert lock zinc plated |
2 |
|
|
4 |
999-0999
|
Screw 10-24 x 3/8 truss head phillips stainless steel |
10 |
|
|
5 |
175-1668
|
Rear cover panel (black) |
1 |
|
|
6 |
999-0188
|
Nut 3/8-16 nylon insert lock zinc plated |
1 |
|
|
7 |
999-0356
|
Nut 10-24 lock stainless steel |
5 |
|
|
8a |
175-1669
|
18/3 power cord 25 foot |
1 |
(OEM) |
|
8b |
991-5007
|
18/3 replacement power cord 50 foot (black) |
1 |
(NON-OEM) |
|
9 |
175-6063
|
Strain relief |
1 |
|
|
10 |
175-0006
|
Rocker switch |
1 |
|
|
11 |
999-1008
|
Screw 10-32 x 3/4 round head phillips stainless steel |
1 |
|
|
12 |
175-1661
|
90 degree elbow fitting |
1 |
|
|
13 |
175-1662
|
90 degree elbow fitting |
1 |
|
|
14 |
175-1656
|
Hose clamp |
4 |
|
|
15 |
175-1657
|
Hose 1/4 x 5 1/4 inch |
1 |
|
|
16 |
175-1673
|
Pump mounting bracket |
2 |
|
|
17a |
175-1660
|
Solution pump (OBSOLETE) |
1 |
|
|
17b |
175-3907
|
Pump 30PSI 230V 50HZ |
1 |
|
|
18 |
999-0442
|
Nut 10-24 nylon insert lock stainless steel |
4 |
|
|
19 |
999-0393
|
Washer 3/16 flat aluminum |
4 |
|
|
20 |
175-1655
|
Adapter fitting |
1 |
|
|
21 |
175-1659
|
Fitting |
1 |
|
|
22a |
175-3911
|
Samil filter |
1 |
(before SN 10486027) |
|
22b |
375-1652
|
Noise filter kit |
1 |
(after SN 10486026) |
|
23 |
999-0144
|
Nut 6-32 k-lock zinc plated |
2 |
(before SN 10486027) |
|
24 |
999-1411
|
Screw 10-24 x 1 round head slotted nylon |
1 |
(before SN 10486027) |
|
25 |
175-0142
|
1/4 inch male terminal |
2 |
(before SN 10486027) |
|
26a |
175-3011
|
Female terminal |
2 |
(before SN 10486027) |
|
26b |
275-5241
|
T-tap female connector |
2 |
(before SN 10486027) |
|
27 |
999-0231
|
Screw 10-24 x 1/2 round head slotted zinc plated |
1 |
|
|
28 |
999-0231
|
Screw 10-24 x 1/2 round head slotted zinc plated |
4 |
|
|
29 |
175-1663
|
Bottom panel (black) (OBSOLETE) |
1 |
|
|
30 |
175-1658
|
Hose 1/4 x 10 1/2 inch |
1 |
|
|
31 |
175-1654
|
Solution tank filter |
1 |
|
|
32 |
175-1652
|
1/8 inch female brass quick coupler |
1 |
|
|
33 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
1 |
|
|
34 |
175-1650
|
1/8 inch male connector with nut |
2 |
|
|
35 |
175-1651
|
Nylon tubing .17 x 12 inch |
1 |
|
|
36 |
175-1649
|
90 degree elbow |
1 |
|
|
38 |
175-3911
|
Samil filter |
1 |
(after SN 10486026) |
|
39 |
999-0442
|
Nut 10-24 nylon insert lock stainless steel |
1 |
(after SN 10486026) |
|
40 |
999-0454
|
Screw 10-24 x 1/2 truss head phillips zinc plated |
1 |
(after SN 10486026) |
|
41 |
475-0274
|
WIRE, 18GA 08.0L WHITE .25QF /.25QF |
1 |
(after SN 10486026) |
|
42 |
475-0304
|
WIRE, 18GA 08.OL BLK .25QF /.25QF |
1 |
(after SN 10486026) |
|
43 |
475-0617
|
WIRE, 18GA 16.0L BLK .25QF /.25QF, TT |
2 |
(after SN 10486026) |
|
