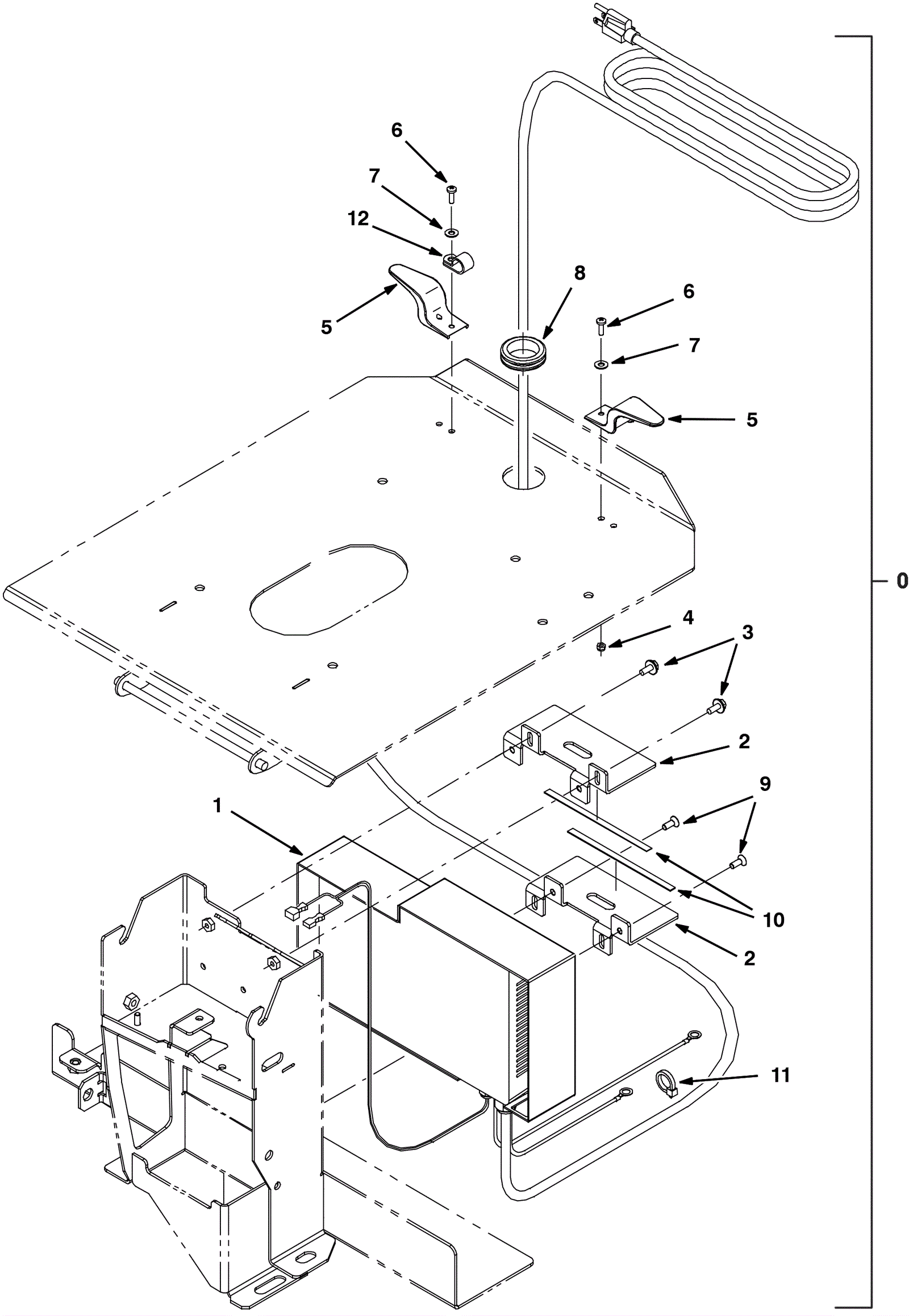

| # | Part | Description | Price | Req | Notes | Availability |
|---|
0 |
275-5121
|
24V onboard charger kit (AGM/wet capable) |
$1,707.50
|
1 |
(includes 1a-12) |
ships same day |
1a |
475-2799
|
CHARGER, 24VDC 25A 115VAC [WET/GEL] |
$623.30
|
1 |
(includes 1c) (after SN 10847944) |
usually ships 6-16 days |
1b |
275-9751
|
24V 25amp onboard charger |
$1,156.40
|
1 |
(includes 1c) (before SN 10847945) |
ships same day |
1c |
275-7092
|
15amp fuse |
$21.30
|
1 |
|
ships same day |
2a |
475-1519
|
BRACKET, CHRGR, ON-BOARD [T7] |
$44.30
|
2 |
(after SN 10847944) |
usually ships 6-16 days |
2b |
275-4960
|
Bracket (OBSOLETE) |
$8.90
|
2 |
(before SN 10847945) (replaced by 2c) |
usually ships 6-16 days |
2c |
475-1965
|
BRACKET KIT, CHRGR [ON-BOARD, T7] |
$104.30
|
2 |
|
usually ships 6-16 days |
3 |
999-1383
|
Screw M6-1 x 16mm hex head stainless steel |
$0.99
|
2 |
(after SN 10847944) |
ships same day |
4 |
175-2894
|
Nut M5-.8 hex nylon locking |
$2.20
|
4 |
|
usually ships 6-16 days |
5 |
175-1756
|
Cord hook |
$21.10
|
2 |
|
ships same day |
6 |
999-0901
|
Screw M5-.8 x 16mm pan head phillips stainless steel |
$0.99
|
4 |
|
ships same day |
7 |
999-0006
|
Washer 3/16 flat zinc plated |
$0.99
|
4 |
|
ships same day |
8 |
175-2366
|
Rubber grommet |
$5.83
|
1 |
|
ships same day |
9 |
999-0773
|
Screw M6-1 x 16mm flat socket head stainless steel |
$0.90
|
2 |
(after SN 10847944) |
ships same day |
10 |
275-5893
|
Seal |
$22.90
|
1 |
(after SN 10847944) |
usually ships 1-5 days |
11 |
175-0037
|
Wire tie |
$2.90
|
5 |
(after SN 10847944) |
usually ships 6-16 days |
12 |
175-2366
|
Rubber grommet |
$5.83
|
1 |
(after SN 10847944) |
ships same day |
N/S |
175-5421
|
P clamp |
$3.60
|
1 |
(before SN 10740598) |
usually ships 6-16 days |
