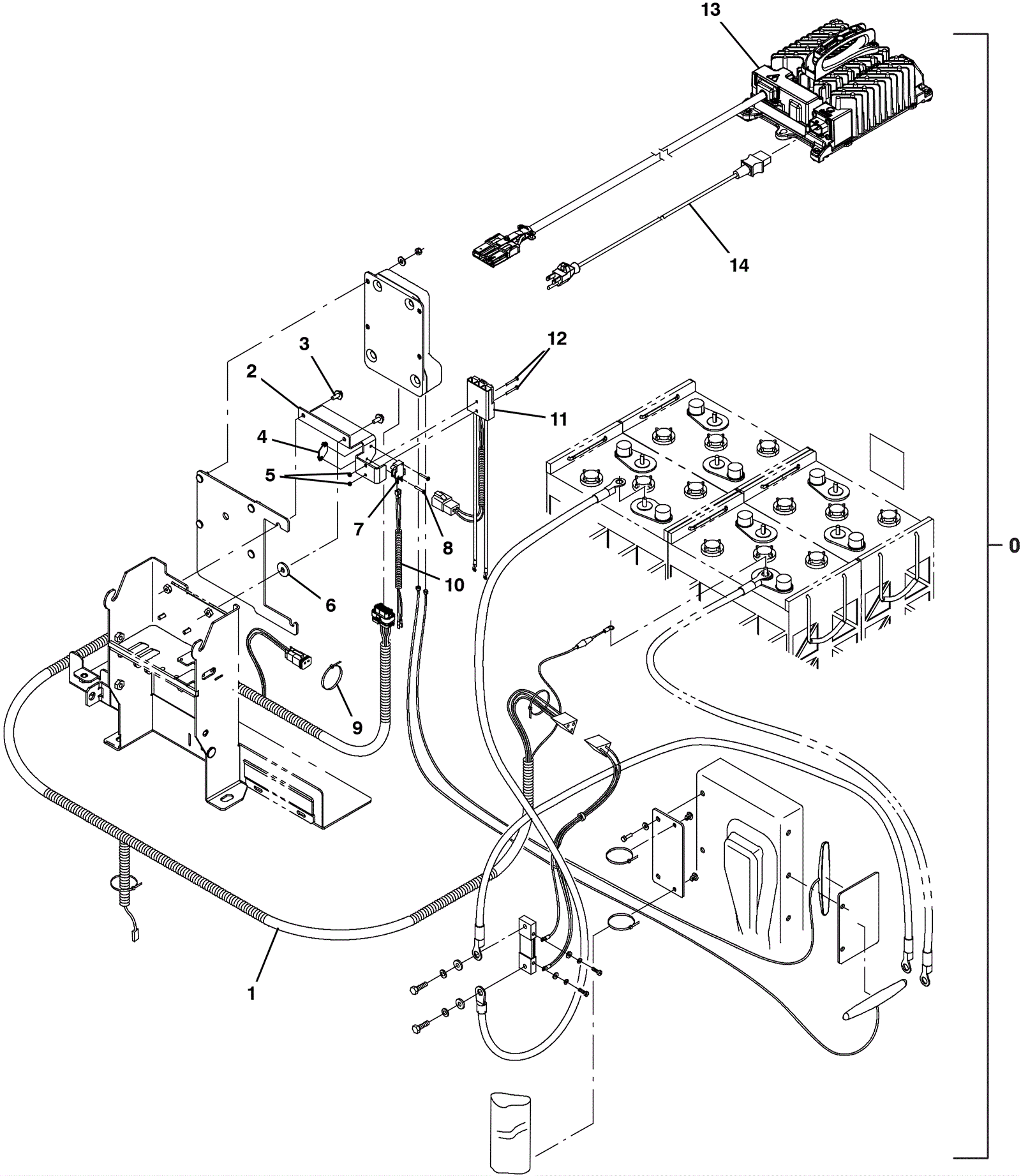

| # | Part | Description |
Req | Notes | Availability |
|---|
0 |
475-4167
|
HARNESS KIT, AMII, CI |
1 |
(includes 1a-13) (needed to add Iris battery manager functionality to Telemetry models) (after SN 10740597) |
|
1a |
475-3679
|
HARNESS, ELE, TELEM |
1 |
(includes 1b) (after SN 10740597) |
|
1b |
275-7904
|
Fuse (Tennant Industrial) |
1 |
(after SN 10740597) |
|
2 |
475-3402
|
BRACKET, SWITCH, CHARGER |
1 |
|
|
3 |
999-1383
|
Screw M6-1 x 16mm hex head stainless steel |
2 |
|
|
4 |
175-7839
|
Switch plate |
1 |
|
|
5 |
999-1161
|
Nut M3-.5 hex nylock stainless steel |
2 |
|
|
6 |
175-7920
|
Washer M8 flat stainless steel |
1 |
|
|
7 |
175-4273
|
Switch |
1 |
|
|
8 |
999-1040
|
Screw M3-.5 x 20mm pan head |
2 |
|
|
9 |
175-7795
|
Cable tie |
5 |
|
|
10 |
475-3357
|
CABLE, ASSY, EXTENSION |
1 |
|
|
11 |
475-3711
|
CABLE, ASSY, TELEM |
1 |
|
|
12 |
999-1221
|
Screw M3-.5 x 25mm pan head stainless steel |
2 |
|
|
13 |
475-2814
|
CHARGER, 24VDC, 650W,100-240VAC[OFF BRD] |
1 |
(models with Iris battery manager functionality only) |
|
14 |
275-0052
|
16/3 charger extension cord 10 foot |
1 |
(not included in kit) (use cord from current off-board charger) |
|
