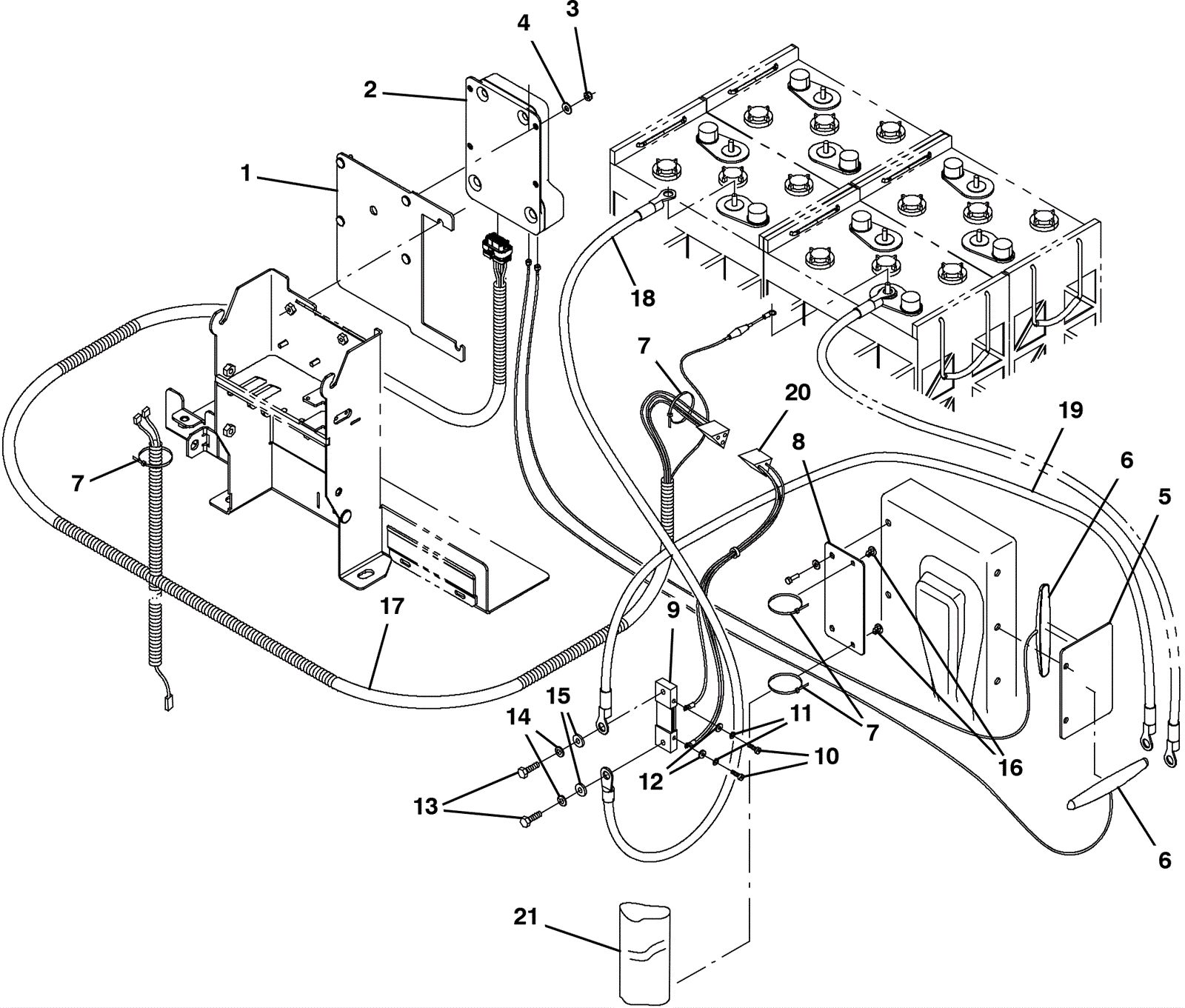

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
475-3549
|
BRACKET WLDT, CONTROLLER |
1 |
|
|
2 |
275-2615
|
Telemetry control box assembly kit |
1 |
|
|
3 |
999-0469
|
Nut M6-1 nylon insert lock zinc plated |
4 |
|
|
4 |
999-0016
|
Washer 1/4 flat plain finish |
4 |
|
|
5 |
475-3422
|
PLATE, PVC, 0.12, 03.81 X 05.83L, 2/.32H |
1 |
|
|
6a |
375-7808
|
Telem antenna |
2 |
(after SN 10978463) |
|
6b |
275-7897
|
Antenna |
1 |
(between SN 10740598 and SN 10978463) (replaced by 6a) |
|
7 |
175-7795
|
Cable tie |
15 |
|
|
8 |
475-3269
|
BRACKET, SHUNT |
1 |
|
|
9 |
375-1151
|
Shunt |
1 |
|
|
10 |
175-3370
|
Screw M4-.7 x 8mm pan head stainless steel |
2 |
|
|
11 |
999-1083
|
Washer #8 internal star lock stainless steel |
2 |
|
|
12 |
999-1158
|
Washer #6 flat stainless steel |
2 |
|
|
13 |
999-0784
|
Screw M8-1.25 x 16mm hex head stainless steel |
2 |
|
|
14 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
2 |
|
|
15 |
999-1053
|
Washer 5/16 internal star lock stainless steel |
2 |
|
|
16 |
275-7625
|
Plastic clip |
2 |
|
|
17a |
475-3679
|
HARNESS, ELE, TELEM |
1 |
(includes 17b) (after SN 10740597) |
|
17b |
275-7904
|
Fuse (Tennant Industrial) |
1 |
|
|
18 |
475-3451
|
CABLE, 04GA 36.0L BLK .31RING /.31RING |
1 |
|
|
19 |
475-3470
|
CABLE, 04GA 40.0L BLK .25RING /.31RING |
1 |
|
|
20 |
375-1154
|
Shunt wiring harness |
1 |
|
|
21 |
375-1155
|
Heatshrink sleeve |
1 |
|
|
