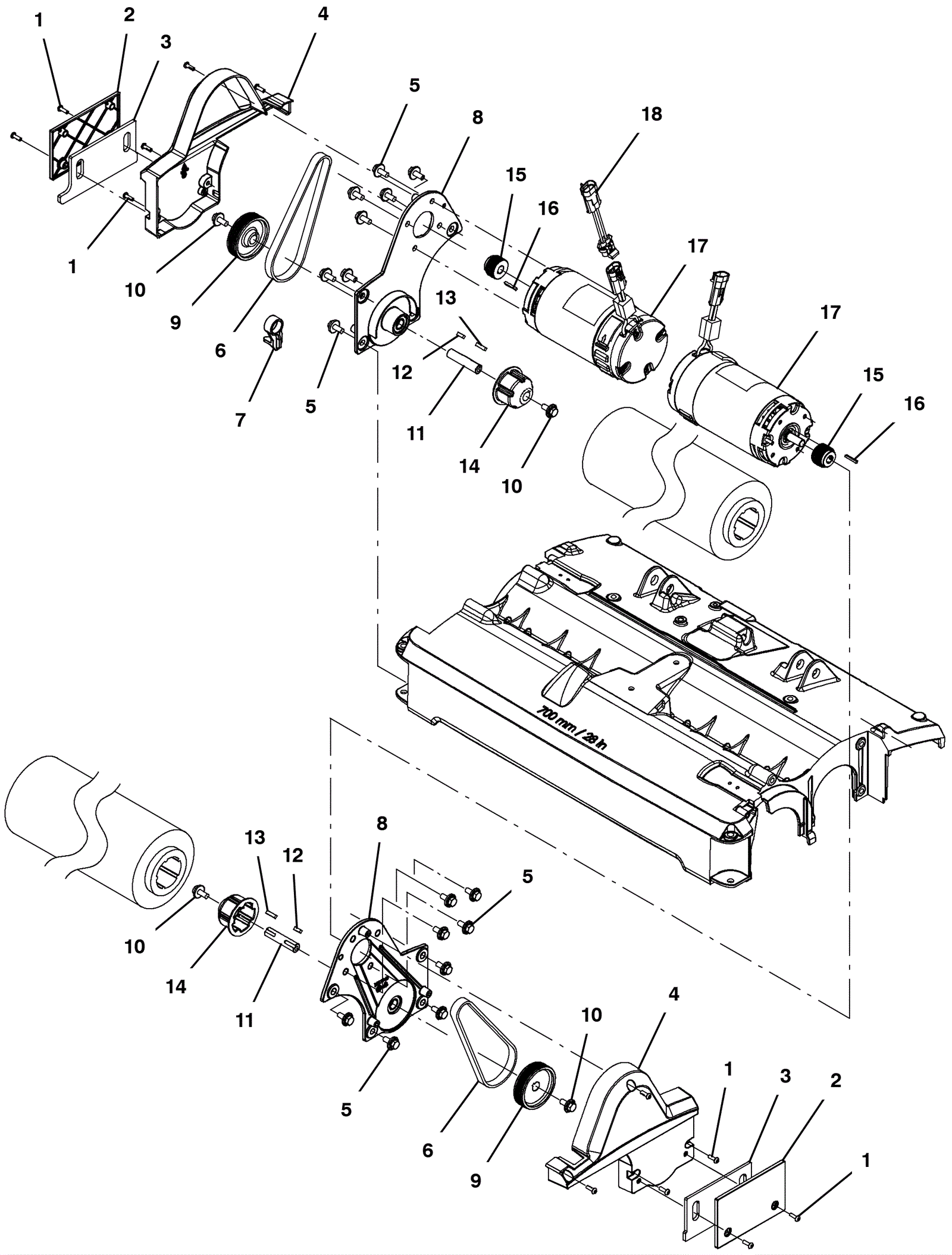

T500 Scrub Head Assembly - Cylindrical - Upper

#PartDescriptionPriceReqNotesAvailability
1 999-1403 Screw M8 x 16mm torx head $2.90 12 ships same day
2 375-3150 Skirt cover $10.23 2 usually ships 5-16 days
3 375-3158 Cylindrical side skirt $25.08 2 ships same day
4 375-3194 Belt cover $49.94 2 usually ships 5-16 days
5 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $3.30 16 ships same day
6a 375-3195 Belt replacement kit $94.93 1 (includes 6b-7) usually ships 5-16 days
6b 275-4735 Drive belt $34.32 2 ships same day
7 475-3728 TOOL, INSTALLATION, BELT $128.59 1 usually ships 5-16 days
8 475-3930 BRACKET ASSY, MOTOR, CI $396.66 2 (includes 9-14) (includes bearings and tube - not available separately) usually ships 5-16 days
9 275-4737 Sheave $111.76 1 usually ships 5-16 days
10 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS $3.30 2 ships same day
11 275-1492 Drive shaft $142.23 1 ships same day
12 275-1489 KEY, SQ, 0.19 X 0.19, 0.50L (Tennant Industrial) $6.01 1 ships same day
13 175-8818 Square keyway $3.30 1 usually ships 5-16 days
14 175-8819 Drive plug $54.78 1 ships same day
15 275-4738 Sheave $85.58 2 usually ships 5-16 days
16 175-4202 Square keyway $3.96 2 usually ships 5-16 days
17a 375-3197 24V 1500RPM brush motor $1,038.62 2 (includes 17b) ships same day
17b 275-1458 Carbon brush (pkg of 2) $137.48 1 ships same day
18 275-5309 Wiring harness adapter $24.42 1 usually ships 5-16 days
