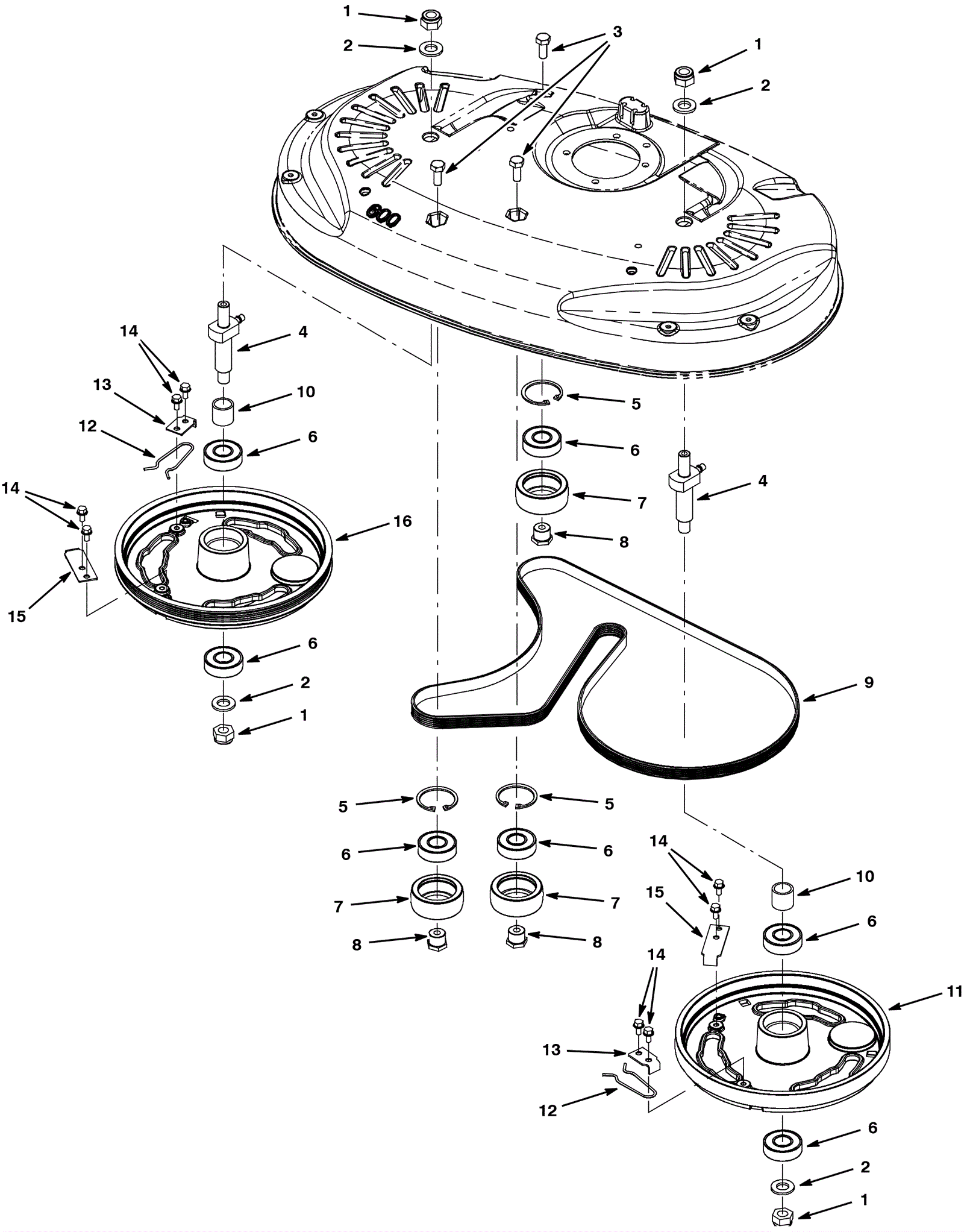

T3 Dual Disk Scrub Head Assembly - Lower

#PartDescriptionPriceReqNotesAvailability
1 999-0519 Nut M12-1.75 nylon insert lock stainless steel $3.85 4 ships same day
2 175-5407 Washer M12 flat stainless steel $4.36 4 usually ships 10-16 days
3 999-0499 Bolt M8-1.25 x 20mm hex head full thread stainless steel $1.85 3 ships same day
4 275-9913 Pulley mounting shaft weldment $197.34 2 usually ships 10-16 days
5 275-9914 Retaining ring $25.52 3 usually ships 10-16 days
6 375-0036 Ball bearing $22.77 7 ships same day
7 275-9915 Idler pulley $73.48 3 usually ships 10-16 days
8 275-9916 Spacer $13.20 3 usually ships 10-16 days
9 275-9917 Drive belt $60.06 1 usually ships 10-16 days
10 275-9918 Tube $7.04 2 usually ships 10-16 days
11 275-9919 Drive hub $66.99 1 usually ships 10-16 days
12 175-7924 Spring clip $7.37 2 usually ships 10-16 days
13 275-9920 Release stop $19.80 2 usually ships 10-16 days
14 999-1228 Screw M5-.8 x 10mm hex head stainless steel $0.99 8 ships same day
15 175-7921 Brush plate clamp $22.77 2 usually ships 10-16 days
16 275-9921 Drive hub $105.82 1 usually ships 10-16 days
