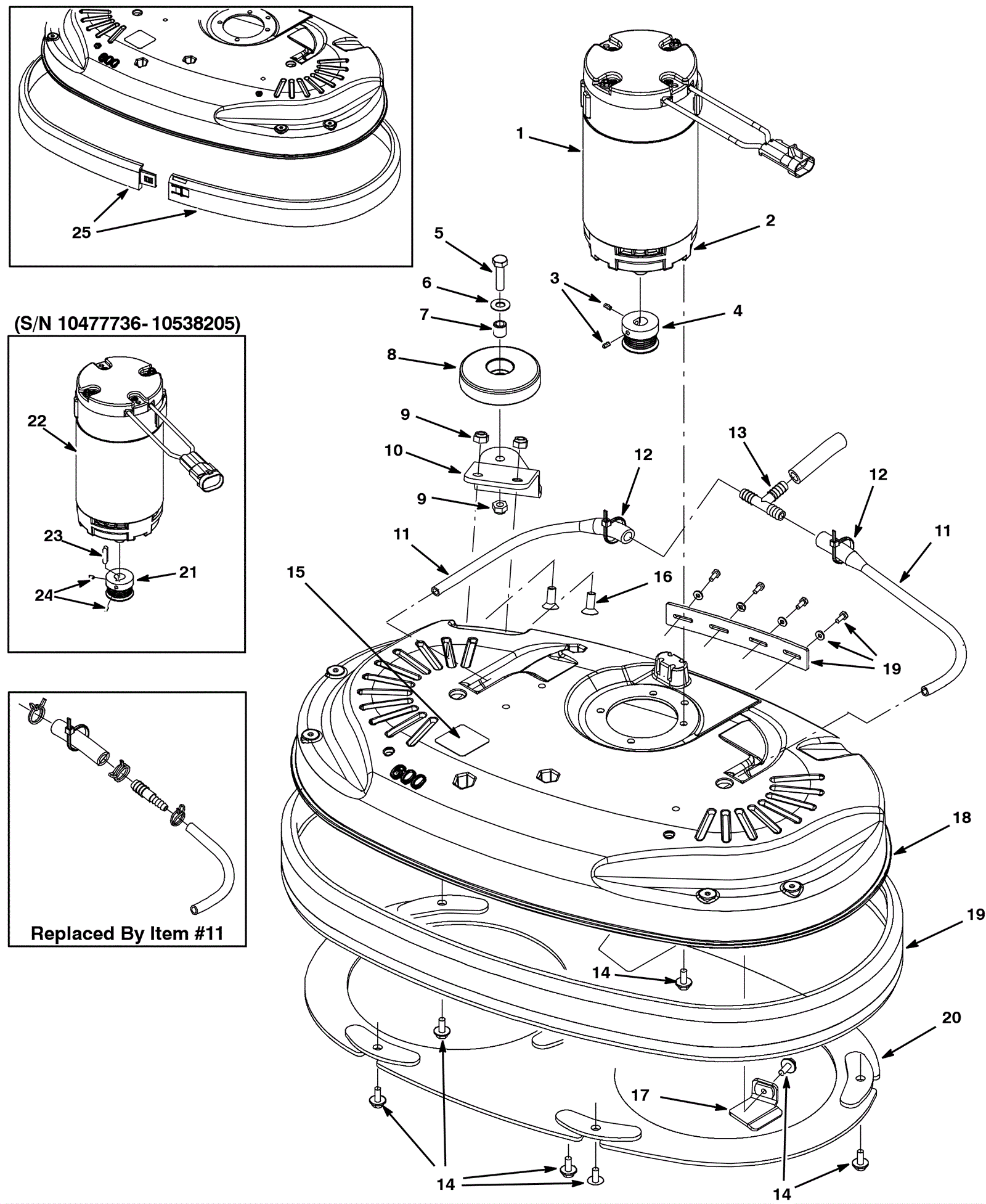

T3 Dual Disk Scrub Head Assembly - Upper

#PartDescriptionPriceReqNotesAvailability
1 275-9903 24V brush motor $1,217.37 1 (includes 2) (after SN 10538205) usually ships 5-16 days
2 275-9904 Carbon brush (pkg of 4) $85.58 1 usually ships 5-16 days
3 275-9911 Screw M5-.8 x 8 set stainless steel $3.96 2 usually ships 5-16 days
4 275-9905 Sheave $55.99 1 (after SN 10538205) usually ships 5-16 days
5 999-0785 Screw M8-1.25 x 30mm hex head stainless steel $2.09 1 ships same day
6 999-0024 Washer 5/16 flat stainless steel $1.34 1 ships same day
7 175-2249 Sleeve $3.08 1 ships same day
8 175-7919 Guide wheel $4.95 1 ships same day
9 999-0496 Nut M8-1.25 nylon insert lock stainless steel $1.08 3 usually ships 11-24 days
10 275-9906 Bracket $30.25 1 usually ships 5-16 days
11 275-9907 Solution hose $12.98 2 usually ships 5-16 days
12 175-7795 Cable tie $3.85 2 ships same day
13 175-1615 Tee fitting $6.60 1 usually ships 5-16 days
14 999-1383 Screw M6-1 x 16mm hex head stainless steel $0.99 10 ships same day
15 175-1238 Moving parts decal $5.28 1 usually ships 5-16 days
16 999-1324 Screw M8-1.25 x 20mm flat head stainless steel $0.99 2 ships same day
17 275-9908 Guide belt bracket $30.14 1 usually ships 1-5 days
18 275-9909 Scrub deck $268.40 1 usually ships 1-5 days
19 275-1466 24 inch (600mm) bumper skirt assembly $279.95 1 (includes mounting hardware and retaining strap) ships same day
20 275-9910 Splash guard bracket $214.83 1 usually ships 5-16 days
21 275-9912 Sheave $42.35 1 (before SN 10538206) usually ships 1-5 days
22a 275-6612 Motor kit $1,144.99 1 (includes 22b) usually ships 5-16 days
22b 275-9904 Carbon brush (pkg of 4) $85.58 1 usually ships 5-16 days
23 275-1468 Square keyway $3.96 1 (before SN 10538206) ships same day
24 275-9911 Screw M5-.8 x 8 set stainless steel $3.96 2 usually ships 5-16 days
25 N/A Not available Call for price 1 (replaced by 19) usually ships 3-26 days
