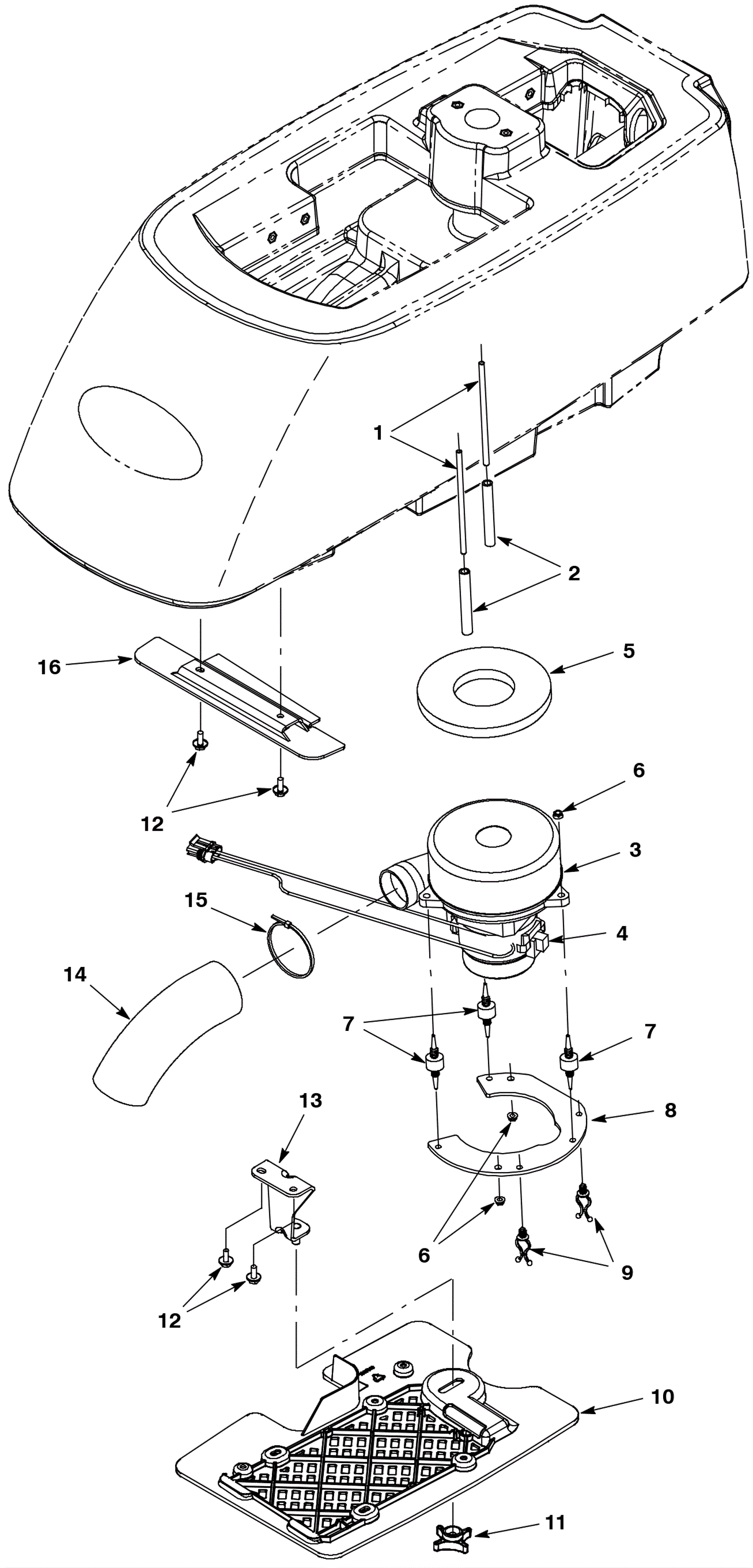

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
175-7788
|
Rod M6-1 x 5.5mm full thread |
$5.28
|
2 |
|
ships same day |
2 |
175-7789
|
Steel spacer |
$24.86
|
2 |
|
ships same day |
3a |
175-7790
|
24V 2 stage vacuum fan |
$414.15
|
1 |
(includes 4) (standard NA only) |
ships same day |
3b |
375-1542
|
24V vacuum fan kit |
$485.65
|
1 |
(includes 4-5) (standard all markets except NA) (after SN 10655629) |
ships same day |
4 |
175-7791
|
Carbon brush (pkg of 2) |
$39.82
|
1 |
|
ships same day |
5 |
175-6085
|
Gasket |
$10.89
|
1 |
|
ships same day |
6 |
275-5085
|
Nut M6-1 x 16 hex head stainless steel |
$3.30
|
2 |
|
ships same day |
7 |
275-9897
|
Isolator |
$5.28
|
3 |
|
ships same day |
8 |
175-7793
|
Vacuum motor mounting bracket |
$36.63
|
1 |
|
ships same day |
9 |
175-2095
|
Keeper clip |
$4.22
|
2 |
|
usually ships 10-16 days |
10 |
275-5940
|
Cover |
$64.35
|
1 |
|
usually ships 10-16 days |
11 |
175-7954
|
Star knob |
$5.50
|
1 |
|
ships same day |
12 |
999-1383
|
Screw M6-1 x 16mm hex head stainless steel |
$3.96
|
4 |
|
ships same day |
13 |
275-5941
|
Bracket |
$34.65
|
1 |
|
usually ships 10-16 days |
14 |
175-7794
|
Vacuum exhaust hose |
$32.45
|
1 |
|
ships same day |
15 |
175-7795
|
Cable tie |
$5.15
|
1 |
|
ships same day |
16 |
275-5942
|
Bracket |
$37.84
|
1 |
|
usually ships 10-16 days |
