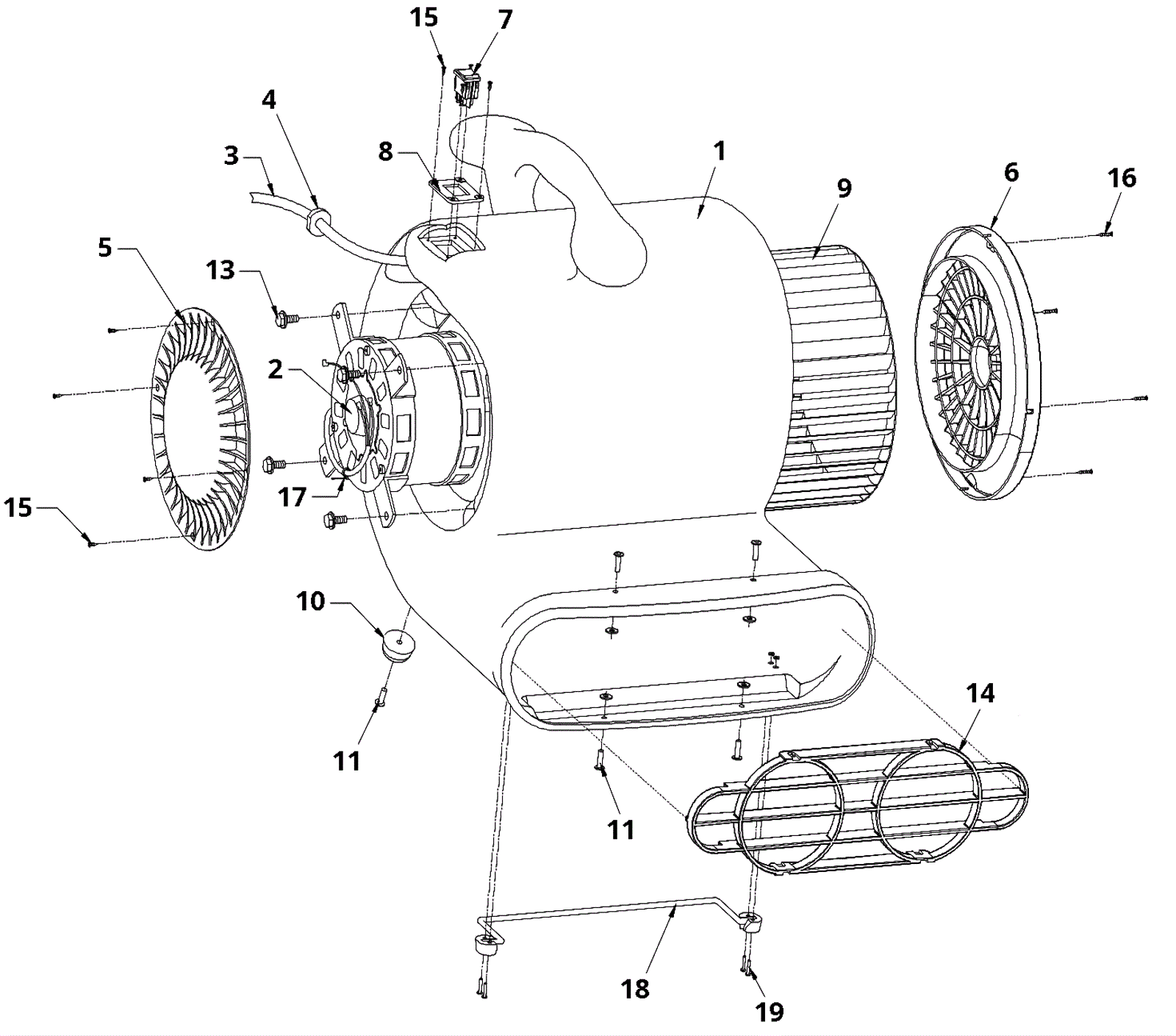

Entire Assembly

#PartDescription ReqNotesAvailability
1 175-8986 Polyethylene housing (black) (OBSOLETE) 1
2 N/A Not available 1 (115V motor)
3a 275-5204 Power cord (OBSOLETE) 1 (OEM)
3b 991-5006 16/3 replacement power cord 50 foot (yellow) 1 (NON-OEM)
4 275-5207 Strain relief (OBSOLETE) 1
5 175-9051 Motor side grill (OBSOLETE) 1
6 N/A Not available 1 (inlet side grill)
7 275-5208 On/off switch (OBSOLETE) 1
8 175-8988 Switch plate (black) (OBSOLETE) 1
9 N/A Not available 1 (blower wheel)
10 275-5206 Rubber foot (OBSOLETE) 2
11a 175-8989 Rivet (OBSOLETE) 6
11b 175-8990 Washer 6
13 175-8991 Screw 1/4-20 x 3/8 hex zinc plated (OBSOLETE) 3
14 175-8992 Snout grill (OBSOLETE) 1
15 175-8993 Screw #6 x 3/8 phillips zinc plated (OBSOLETE) 4
16 175-8994 Screw #6 x 7/8 phillips zinc plated 4
17 175-8995 4 inch nylon cable tie (OBSOLETE) 1
18 175-8996 Kickstand assembly (OBSOLETE) 1
19a 175-1005 Rivet 1/8 x 1/2 (OBSOLETE) 4
19b 175-1006 Washer (OBSOLETE) 4
