| # | Part | Description | Price | Req | Notes | Availability |
|---|
0 |
475-2857
|

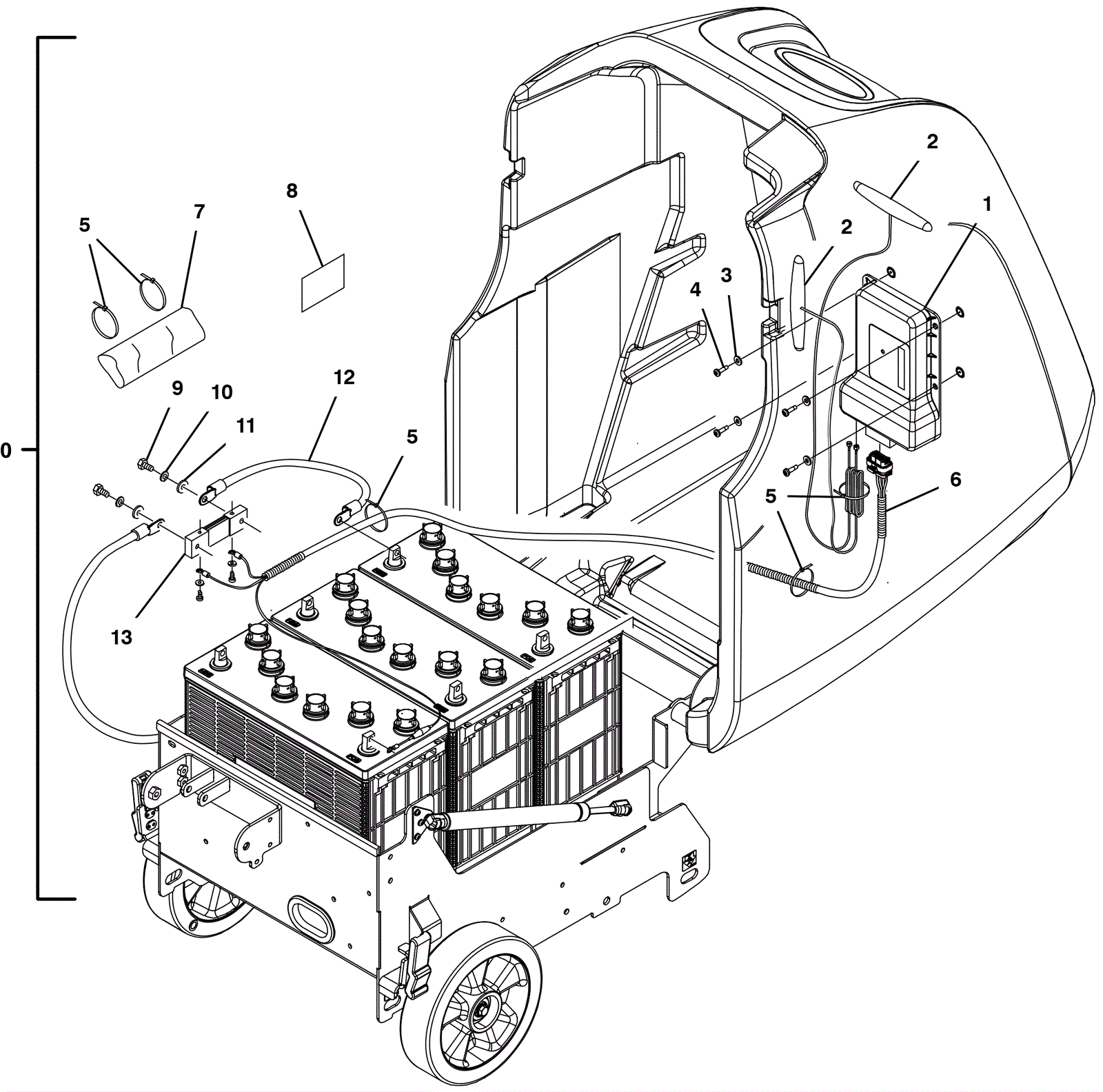

TELEMETRY KIT, CI [B7/SG7 B5/SG5 USA] |
$2,386.81
|
1 |
(includes 1-2a, 3-13) (requires Tennant True serviceor an authorized Tennant service provider) |
usually ships 5-16 days |
1 |
275-2615
|
Telemetry control box assembly kit |
$2,167.85
|
1 |
|
usually ships 1-5 days |
2a |
375-7808
|
Telem antenna |
$54.67
|
2 |
(after April 2020) |
usually ships 5-16 days |
2b |
275-7897
|
Antenna |
$60.61
|
1 |
(before May 2020) |
usually ships 1-5 days |
3 |
999-0998
|
Washer #10 flat stainless steel |
$0.99
|
4 |
|
ships same day |
4 |
175-7660
|
Screw #10-14 x .675 shoulder self-tapping |
$4.18
|
4 |
|
ships same day |
5 |
175-2162
|
Nylon wire tie |
$2.42
|
5 |
|
usually ships 5-16 days |
6a |
475-3617
|
HARNESS, ELE [TELEMETRY, 6200E] |
$83.49
|
1 |
(includes 6b) |
usually ships 5-16 days |
6b |
275-7904
|
Fuse (Tennant Industrial) |
$1.84
|
1 |
|
usually ships 1-5 days |
7 |
375-1155
|
Heatshrink sleeve |
$2.42
|
1 |
|
usually ships 1-5 days |
8 |
275-7899
|
Telemetry decal |
$4.29
|
1 |
|
usually ships 1-5 days |
9 |
999-0784
|
Screw M8-1.25 x 16mm hex head stainless steel |
$1.74
|
2 |
|
ships same day |
10 |
999-1053
|
Washer 5/16 internal star lock stainless steel |
$0.99
|
2 |
|
ships same day |
11 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
$0.99
|
2 |
|
ships same day |
12 |
175-2120
|
6 gauge black wire jumper cable |
$17.60
|
1 |
|
usually ships 5-16 days |
13 |
375-1151
|
Shunt |
$114.40
|
1 |
|
usually ships 1-5 days |
