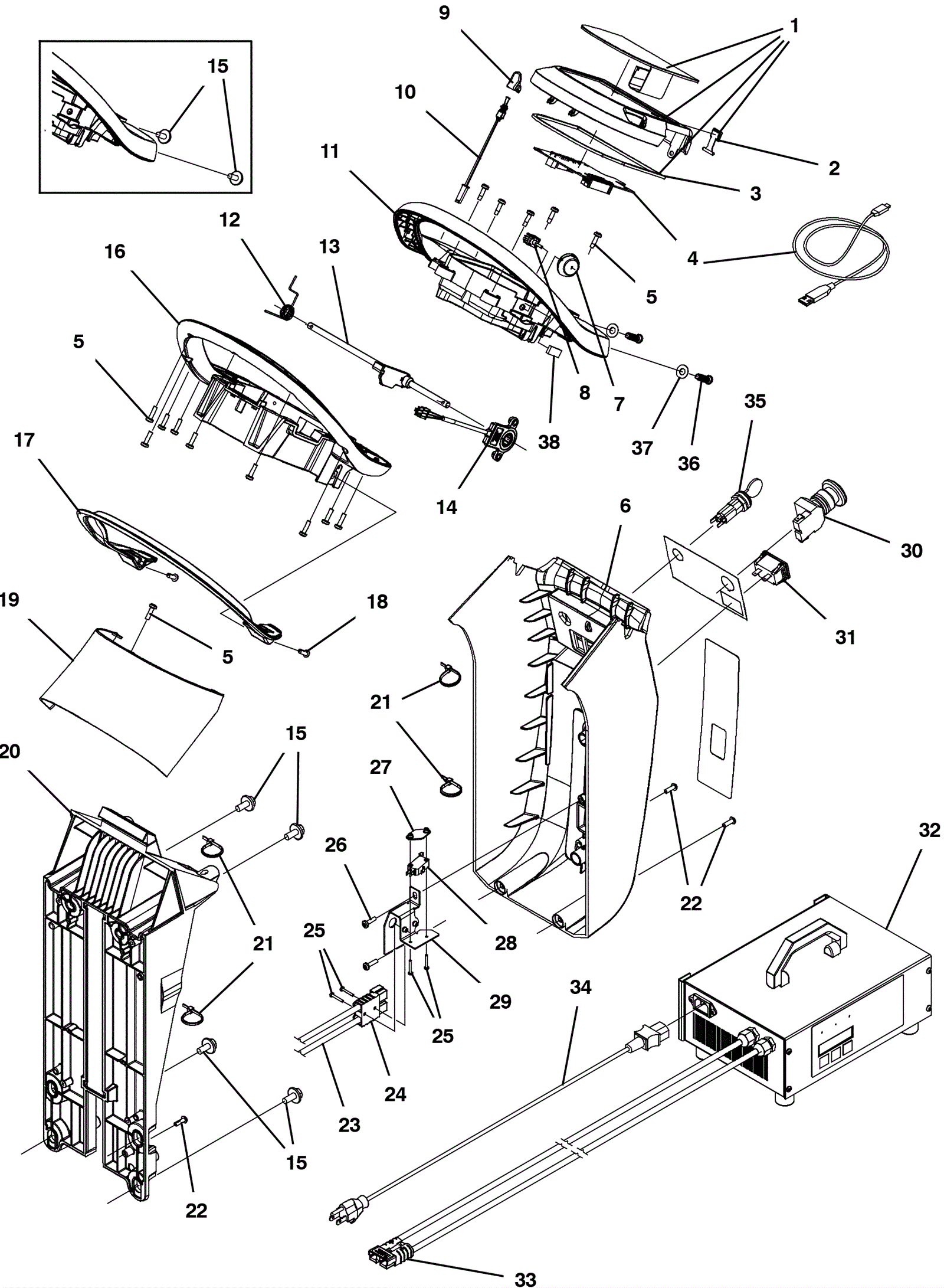

Charger Console Assembly

#PartDescription ReqNotesAvailability
1a 275-5455 Bezel kit (power drive model) 1 (power drive model) (includes 2-3) (requires Tennant True service or an authorized Tennant service provider)
1b 275-5450 Bezel kit (propel model) 1 (propel model) (includes 2-3) (requires Tennant True service or an authorized Tennant service provider)
1c 775-0105 Bezel kit (push model) 1 (push model) (includes 2-3) (requires Tennant True service or an authorized Tennant service provider)
2 275-5430 USB cap 1
3 375-9374 Console gasket 1 (after March 2020)
4a 275-5431 Circuit board kit (includes USB cable) 1 (includes 4b) (requires Tennant True service or an authorized Tennant service provider)
4b 375-1351 USB to USB mini cable 1
5 175-7660 Screw #10-14 x .675 shoulder self-tapping 16
6 275-5444 Console cover 1
7 375-4600 Speed range dial 1
8 275-5452 Potentiometer 1
9 275-5453 Toggle cap 1
10 275-5454 Toggle switch assembly 1
11 275-5434 Top handle housing 1
12 275-5435 Spring 1
13 275-5436 Handle shaft assembly 1
14a 275-5456 Rotary sensor 1 (power drive model)
15 275-4736 Screw M8-1.25 x 20mm hex washer head stainless steel SEMS 2 (qty 4 for models before SN 10795905)
16 275-5437 Bottom handle housing 1
17 275-5438 Bail 1
18 999-1403 Screw M8 x 16mm torx head 2
19 275-5439 Handle cover 1
20 375-0185 Control column frame 1
21 175-7795 Cable tie 4
22 999-1403 Screw M8 x 16mm torx head 3
23 275-5441 Cable assembly 1 (includes 25)
25 999-1040 Screw M3-.5 x 20mm pan head 1
26 175-7660 Screw #10-14 x .675 shoulder self-tapping 4
27 175-7839 Switch plate 1
28 375-0226 Mircroswitch 1
29 375-0046 Charger plug bracket 1
30 275-1416 Safety shut-off switch 1
31 275-9900 Hour meter 1
32a 275-5445 36V 25amp off board battery charger 1 (includes 33) (180-250ah WET batteries)
32b 375-1210 36V 25amp off board battery charger 1 (includes 33) (200-350ah AGM batteries)
32c 375-1396 36V 25amp off board battery charger 1 (includes 33) (260-360ah WET batteries)
33 991-2105 SB50 50amp charger plug with pins (gray) 1
34 275-5446 16/3 power cord 15 foot (black) 1
35a 175-7872 Key switch with 2 keys 1 (includes 35b)
35b 991-1634 Key (pkg of 2) 1
36 375-3186 Screw 2 (after SN 10795904)
37 999-0024 Washer 5/16 flat stainless steel 2 (after SN 10795904)
38 475-2983 SEAL, AFMKT, RBR, CLSD, ADH, 01FT 1 (after March 2020)
