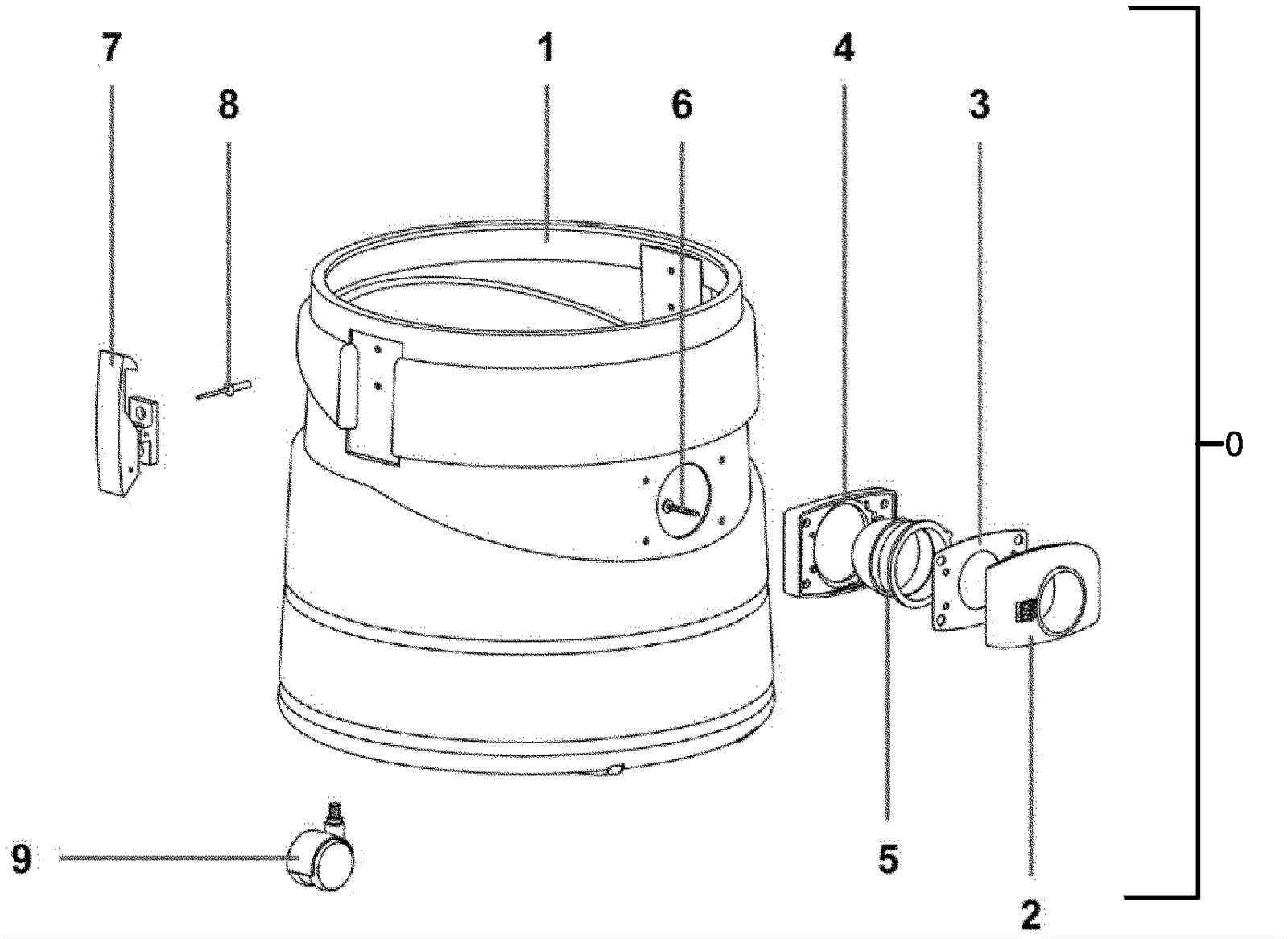

| # | Part | Description |
Req | Notes | Availability |
|---|
0 |
375-9148
|
Tank assembly |
1 |
(includes 1-9) |
|
1 |
N/A
|
Not available |
1 |
(Tank) |
|
2 |
N/A
|
Not available |
1 |
(Complete inlet switch) |
|
3 |
475-0111
|
GASKET (OBSOLETE) |
1 |
|
|
4 |
N/A
|
Not available |
1 |
(Gasket) |
|
5 |
475-0510
|
INLET, TANK |
1 |
|
|
6 |
475-0009
|
SCREW [V10/V12/V14] |
4 |
|
|
7 |
N/A
|
Not available |
2 |
(Hook) |
|
8 |
475-0011
|
RIVET, BLIND |
4 |
|
|
9 |
375-9149
|
Caster assembly (pkg 6) |
1 |
|
|
N/S |
N/A
|
Not available |
2 |
(Decal) (only available in 0) |
|
KIT1 |
375-9150
|
Hose fitting kit |
1 |
(includes 2-6) |
|
KIT2 |
375-9114
|
Vacuum latch kit |
1 |
(includes 7 and 8) |
|
