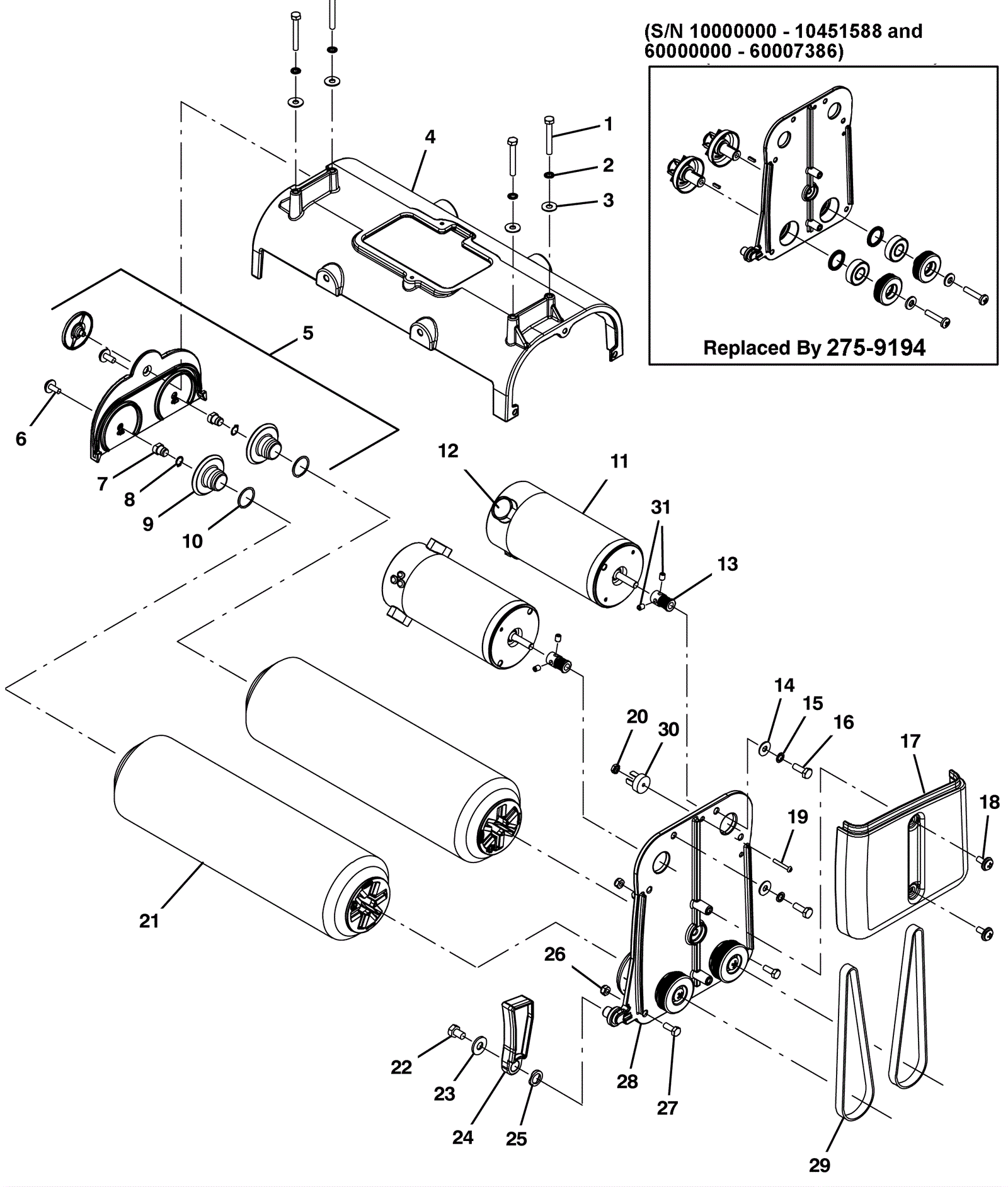

STRIVE COMPACT Scrub Head Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0781 Screw M6-1 x 45mm hex head $0.99 8 ships same day
2 175-4544 Washer M6 locking $4.62 8 ships same day
3 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 8 ships same day
4 275-9187 Brush housing $217.69 1 usually ships 5-16 days
5 275-6038 Brush door kit with hardware $228.80 1 (includes 6-10) usually ships 5-16 days
6 999-1084 Screw M6-1 x 16mm truss head slotted stainless steel $0.99 2 ships same day
7 275-2416 Shaft idler plug $20.79 2 ships same day
8 275-2415 Retaining ring $2.42 2 ships same day
9 275-2414 Brush idler hub $18.70 2 ships same day
10 275-2413 Seal $2.64 2 ships same day
11a 275-9189 120V brush motor $272.36 2 (includes 12a) (s/n from 10656884-60000000) usually ships 5-16 days
11b 275-9189 120V brush motor $272.36 2 (includes 12b) (replaced by 275-9189) (s/n from 10000000-10656883 and 60000000) usually ships 5-16 days
12a 275-9190 Carbon brush (pkg of 2) $30.25 4 (s/n 10656884-60000000) ships same day
12b 275-9190 Carbon brush (pkg of 2) $30.25 4 (s/n 10000000-10656883) ships same day
13 275-9191 Sheave $14.41 2 usually ships 5-16 days
14 999-0335 Washer 1/4 x 5/8 SAE flat stainless steel $0.99 4 ships same day
15 175-4544 Washer M6 locking $4.62 4 ships same day
16 275-2405 Screw 1/4-20 x 3/4 hex head $11.44 4 usually ships 5-16 days
17 475-1004 COVER, BELT, SPG (DUAL ROLLER) $17.71 1 usually ships 5-16 days
18 999-1084 Screw M6-1 x 16mm truss head slotted stainless steel $0.99 2 ships same day
19 999-0102 Screw 6-32 x 1 round head slotted zinc plated $0.99 1 ships same day
20 999-0227 Nut 6-32 hex nylon insert lock jam zinc plated $0.99 1 ships same day
21 275-4798 Roller assembly $169.51 2 ships same day
22 275-4798 Roller assembly $169.51 1 ships same day
23 175-4544 Washer M6 locking $4.62 1 ships same day
24 275-9193 Kickstand support $8.91 1 ships same day
25 175-3058 Washer 3/4 wave $3.85 1 ships same day
26 999-0497 Nut M6-1 nylon insert lock stainless steel $1.03 3 ships same day
27 999-0507 Bolt M6-1 x 16mm hex head full thread plain finish $0.99 3 ships same day
28 275-9194 Motor mount bracket kit with bearing and seal $269.17 1 usually ships 5-16 days
29 275-9135 Belt with installation tool (pkg of 2) $115.50 1 ships same day
30 175-4009 Rectifier $32.89 1 usually ships 5-16 days
31 175-9339 Screw M6-1 x 8mm set socket $3.96 4 usually ships 5-16 days
