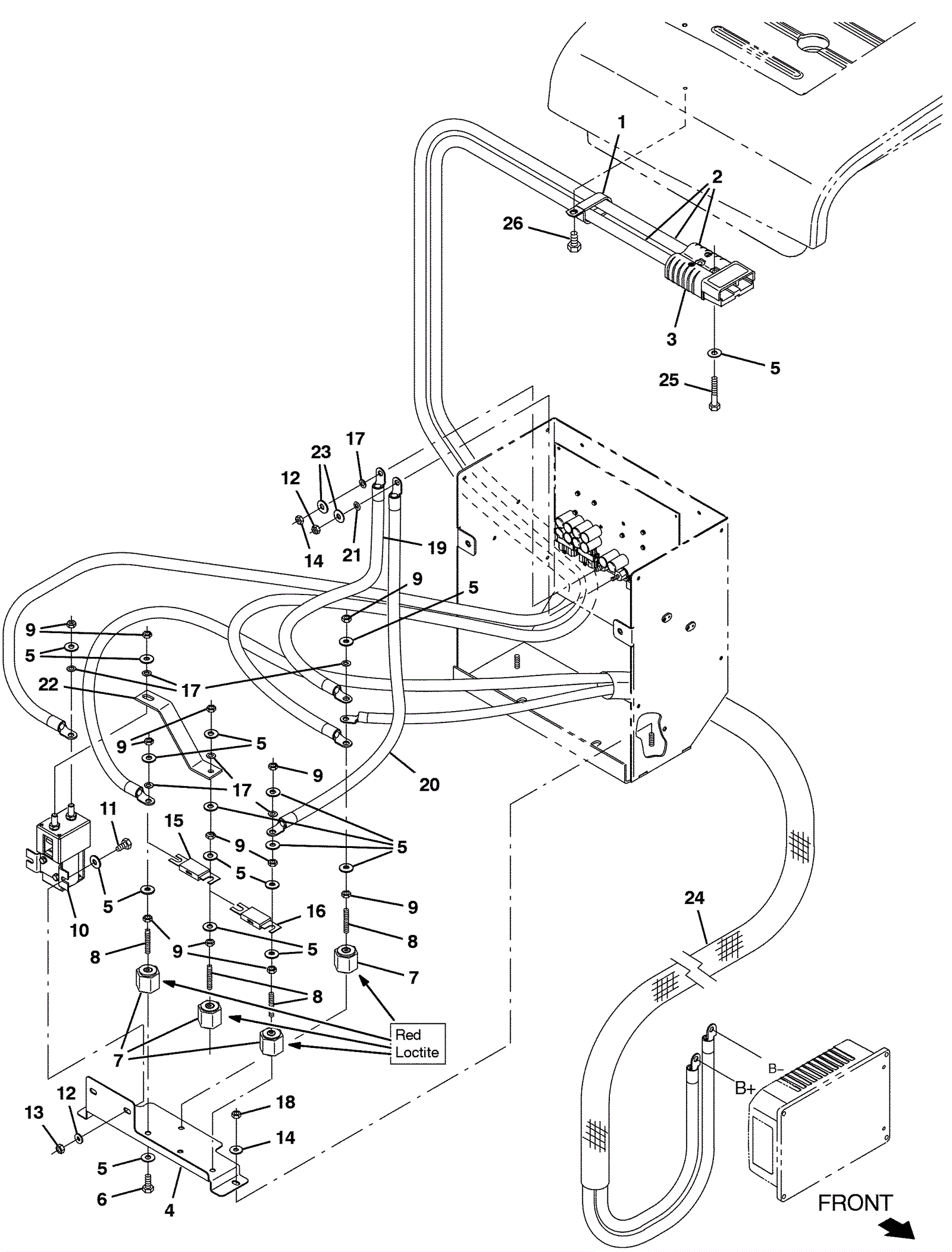

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
175-3171
|
Cable clamp |
1 |
|
|
2 |
675-4810
|
CABLE, BATTERY, 1/0GA [M8 RING/M6 RING] (Tennant Industrial) |
1 |
|
|
3 |
275-4284
|
CONNECTOR, 350A, GRAY [ANDERSON] (Tennant Industrial) |
1 |
|
|
4 |
575-3757
|
BRACKET, MTG, CONTACTOR (Tennant Industrial) |
1 |
|
|
5 |
999-0016
|
Washer 1/4 flat plain finish |
13 |
|
|
6 |
999-0361
|
Bolt 1/4-20 x 3/8 hex head grade 5 zinc |
4 |
|
|
7 |
175-3226
|
Insulated stand off |
4 |
|
|
8 |
175-3227
|
Threaded rod |
4 |
|
|
9 |
999-0190
|
Nut 1/4-20 hex plain finish |
10 |
|
|
10 |
275-2713
|
36V 200amp contactor (Tennant Industrial) |
1 |
|
|
11 |
999-0507
|
Bolt M6-1 x 16mm hex head full thread plain finish |
2 |
|
|
12 |
275-5473
|
Nut M5 x .8 hex brass |
2 |
|
|
13 |
999-0469
|
Nut M6-1 nylon insert lock zinc plated |
2 |
|
|
14 |
275-5479
|
Nut M6 x 1 (Tennant Industrial) |
1 |
|
|
15 |
175-0847
|
FUSE, 150A, 0.88 2.4L [SLO-BLO] (Tennant Industrial) |
1 |
|
|
16 |
275-1438
|
100amp fuse |
1 |
|
|
17 |
175-4544
|
Washer M6 locking |
6 |
|
|
18 |
999-0469
|
Nut M6-1 nylon insert lock zinc plated |
2 |
|
|
19 |
575-2137
|
CABLE, 04GA 6.5L BLK [M6 RING/M6 RING] (Tennant Industrial) |
1 |
|
|
20 |
575-2910
|
CABLE, 04GA 9.8L BLU [M5 RING/M6 RING] (Tennant Industrial) |
1 |
|
|
21 |
999-1026
|
Washer #10 internal lock stainless steel |
2 |
|
|
22 |
575-4712
|
BUSBAR, 200A (Tennant Industrial) |
1 |
|
|
23 |
999-0016
|
Washer 1/4 flat plain finish |
2 |
|
|
24 |
675-3208
|
CABLE ASSY, 02GA, POWER [M17, 2 COND.] (Tennant Industrial) |
1 |
|
|
25 |
175-0758
|
Bolt M6-1 x 40mm hex head stainless steel |
2 |
|
|
26 |
999-0783
|
Screw M8-1.25 x 16mm hex head |
3 |
|
|
