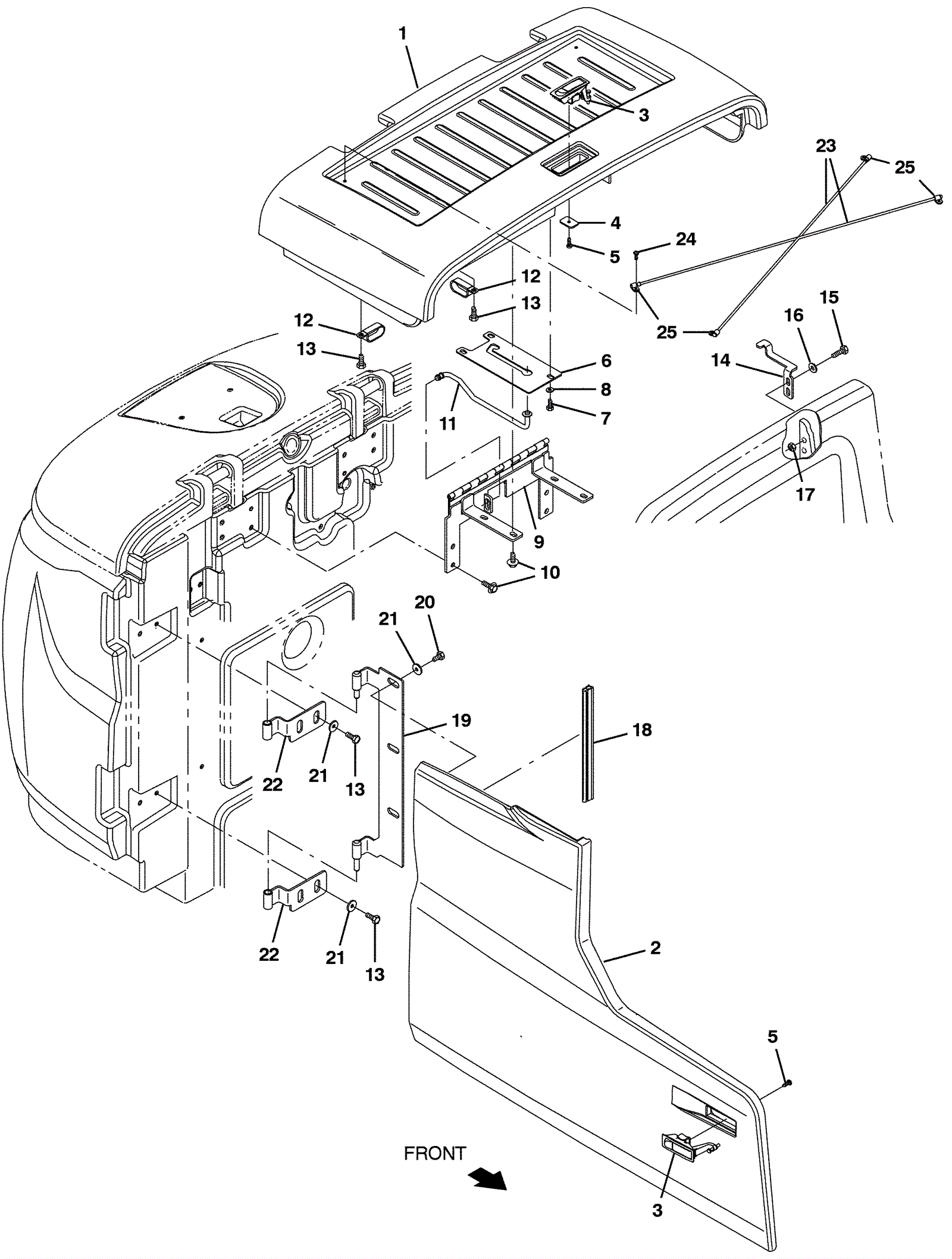

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
675-5261
|
COVER, BATTERY, TOP, AFMKT [T17] (Tennant Industrial) |
1 |
(before SN 013000) |
|
1b |
675-9589
|
COVER, ASSY, BATTERY [T17/M17] (Tennant Industrial) |
1 |
(after SN 012999) |
|
2a |
675-4983
|
COVER, SIDE, RH, AFMKT [T17] (Tennant Industrial) |
1 |
(before SN 013000) |
|
2b |
675-9590
|
COVER, SIDE, RH, STD, AFMKT [T/M17] (Tennant Industrial) |
1 |
(after SN 012999) |
|
3 |
275-0047
|
Latch |
2 |
|
|
4 |
475-8758
|
PLATE, LATCH [T17] (Tennant Industrial) |
1 |
|
|
5 |
175-5139
|
SCREW, PAN, PHL, M5 X 0.80 X 25, 4.8 (Tennant Industrial) |
2 |
|
|
6 |
575-0763
|
PLATE, PROP ROD, [T17] (Tennant Industrial) |
1 |
|
|
7 |
999-0507
|
Bolt M6-1 x 16mm hex head full thread plain finish |
3 |
|
|
8 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
3 |
|
|
9 |
575-8238
|
HINGE WLDT, COVER, BATTERY [T17] (Tennant Industrial) |
1 |
|
|
10 |
275-4736
|
Screw M8-1.25 x 20mm hex washer head stainless steel SEMS |
8 |
|
|
11 |
575-8697
|
ROD WLDT, SEAT, BATTERY COVER [T17] (Tennant Industrial) |
1 |
|
|
12 |
175-3171
|
Cable clamp |
3 |
|
|
13 |
999-0499
|
Bolt M8-1.25 x 20mm hex head full thread stainless steel |
7 |
|
|
14 |
575-1517
|
BRACKET, LATCH [T17] (Tennant Industrial) |
1 |
|
|
15 |
999-0248
|
Bolt M8-1.25 x 30mm hex head full thread plain finish |
2 |
|
|
16 |
999-0024
|
Washer 5/16 flat stainless steel |
4 |
|
|
17 |
999-0471
|
Nut M8-1.25 nylon insert lock zinc plated |
2 |
|
|
18 |
475-9875
|
SEAL, AFMKT, BULB, DUAL, 01FT [F/.30GAP] (Tennant Industrial |
1 |
|
|
19 |
575-9897
|
HINGE WLDT, RH [T17] (Tennant Industrial) |
1 |
|
|
20 |
999-0783
|
Screw M8-1.25 x 16mm hex head |
3 |
|
|
21 |
175-7920
|
Washer M8 flat stainless steel |
7 |
|
|
22 |
475-3421
|
HINGE WLDT, [T/M17] |
2 |
|
|
23 |
575-3675
|
CORD, BATTERY COVER [T17] (Tennant Industrial) |
2 |
|
|
24 |
475-7635
|
SCREW, PAN, PHL, 10-32 X 0.50, G2, BLK (Tennant Industrial) |
4 |
|
|
25 |
175-0144
|
P clamp |
4 |
|
|
