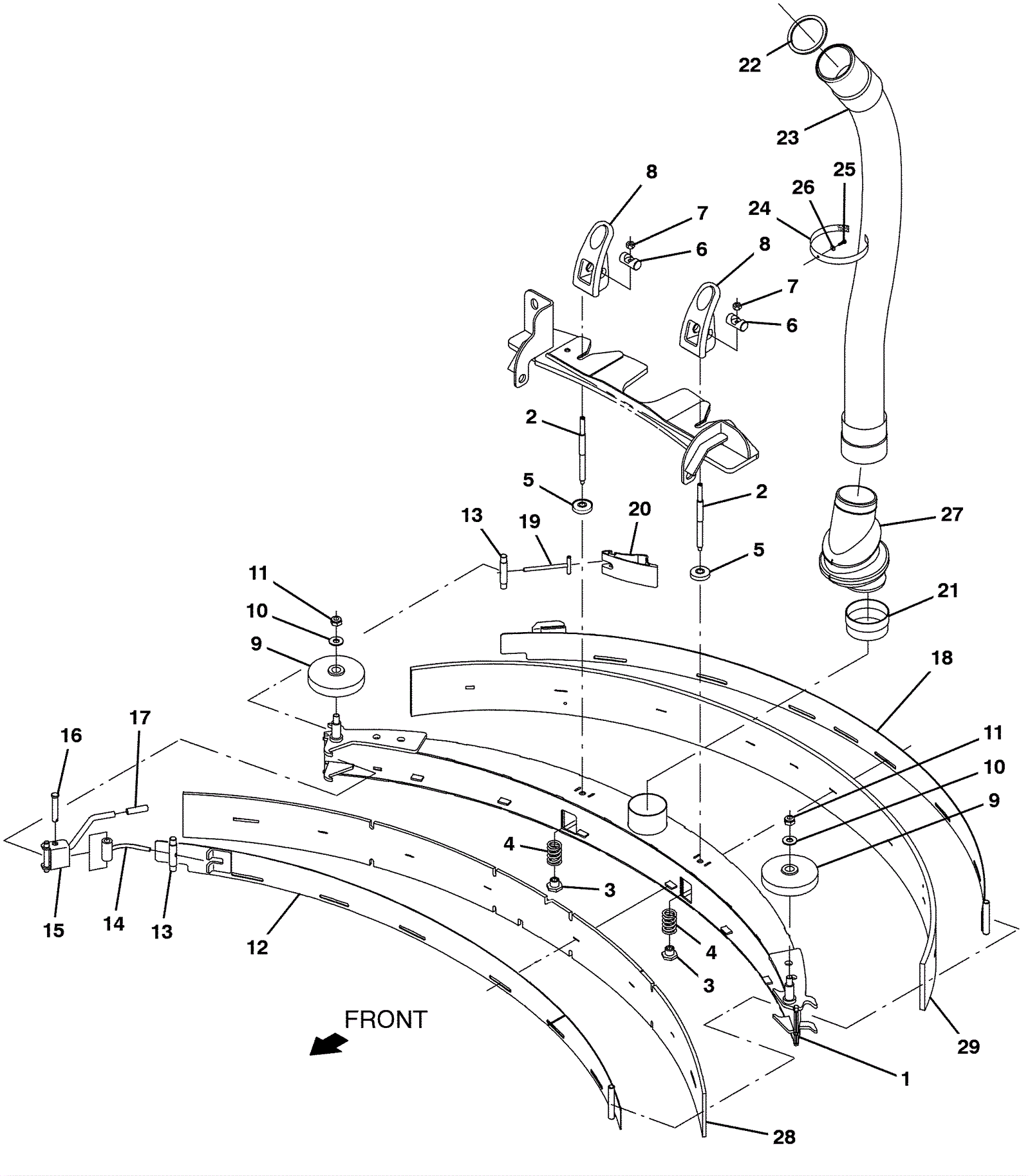

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
675-5280
|
SQUEEGEE FRAME ASSY (Tennant Industrial) |
1 |
(before SN 012500) |
|
1b |
675-9798
|
Squeegee frame assembly (Tennant Industrial) |
1 |
(after SN 012499) |
|
2 |
575-3520
|
ROD, THRD, 2END, M8X1.25/ M10X1.5 -02 (Tennant Industrial) |
2 |
|
|
3 |
175-3352
|
T-nut M10-1.5mm |
2 |
|
|
4 |
575-0702
|
SPRING, CMPR, 0.98OD .14WIR 02.00L, SS (Tennant Industrial) |
2 |
|
|
5 |
575-2260
|
RING, MTG, SQGE, .38L (Tennant Industrial) |
2 |
|
|
6 |
275-7725
|
Pin with screw M8 (Tennant Industrial) |
2 |
|
|
7 |
999-1424
|
Nut M8-1.25 hex stainless steel |
2 |
|
|
8 |
275-7724
|
Lock grip (Tennant Industrial) |
2 |
|
|
9 |
275-2208
|
WHEEL, 04.0D 0.89W 0.64B |
2 |
|
|
10 |
999-0355
|
Washer 3/8 x 7/8 SAE flat stainless steel |
2 |
|
|
11 |
999-1120
|
Nut M10-1.5 nylon insert lock stainless steel |
2 |
|
|
12 |
575-6411
|
STRAP WLDT (Tennant Industrial) |
1 |
|
|
13 |
575-2079
|
PIN, 0.43D 2.75L [303SS] (Tennant Industrial) |
2 |
|
|
14 |
575-6048
|
ARM WLDT (Tennant Industrial) |
1 |
|
|
15 |
575-6047
|
BRACKET WLDT (Tennant Industrial) |
1 |
|
|
16 |
275-2176
|
PIN, CLEVIS, 0.37D X 2.12L |
1 |
|
|
17 |
475-7591
|
COVER, HANDLE (Tennant Industrial) |
1 |
|
|
18 |
575-7131
|
CLAMP WLDT, REAR (Tennant Industrial) |
1 |
|
|
19 |
175-0818
|
BAR WLDT, RETAINER, SQGE, REAR (Tennant Industrial) |
1 |
|
|
20 |
175-0819
|
CAM, REAR (Tennant Industrial) |
1 |
|
|
21 |
575-0945
|
CUFF, ADAPTER, 2.75 X 3.00, PVC (Tennant Industrial) |
1 |
|
|
22 |
475-8756
|
GASKET, URE, .16, 3.23ID 3.63OD (Tennant Industrial) |
1 |
|
|
23 |
575-8698
|
HOSE ASSY, REAR SQUEEGEE (Tennant Industrial) |
1 |
|
|
24 |
575-0064
|
FASTENER, 11.00L [HOOK & LOOP] (Tennant Industrial) |
1 |
|
|
25 |
475-7574
|
SCREW, PAN, PHL, M6 X 1.00 X 12, BLK (Tennant Industrial) |
1 |
|
|
26 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
1 |
|
|
27 |
575-7877
|
HOSE TRAP ASSY (Tennant Industrial) |
1 |
|
|
28a |
375-1663
|
Squeegee blade front (linatex) |
1 |
|
|
28b |
375-1665
|
Squeegee blade front (polyurethane) (TENNANT INDUSTRIAL) |
1 |
|
|
28c |
375-1667
|
Squeegee blade front (gum) (TENNANT INDUSTRIAL) |
1 |
|
|
29a |
375-1664
|
Squeegee blade rear (linatex) (TENNANT INDUSTRIAL) |
1 |
|
|
29b |
375-1666
|
Squeegee blade rear (polyurethane) (TENNANT INDUSTRIAL) |
1 |
|
|
29c |
375-1668
|
Squeegee blade rear (gum) (TENNANT INDUSTRIAL) |
|
|
|
KIT1 |
675-6846
|
SQUEEGEE KIT, CI [T17] (Tennant Industrial) |
1 |
(includes 1-20) |
|
