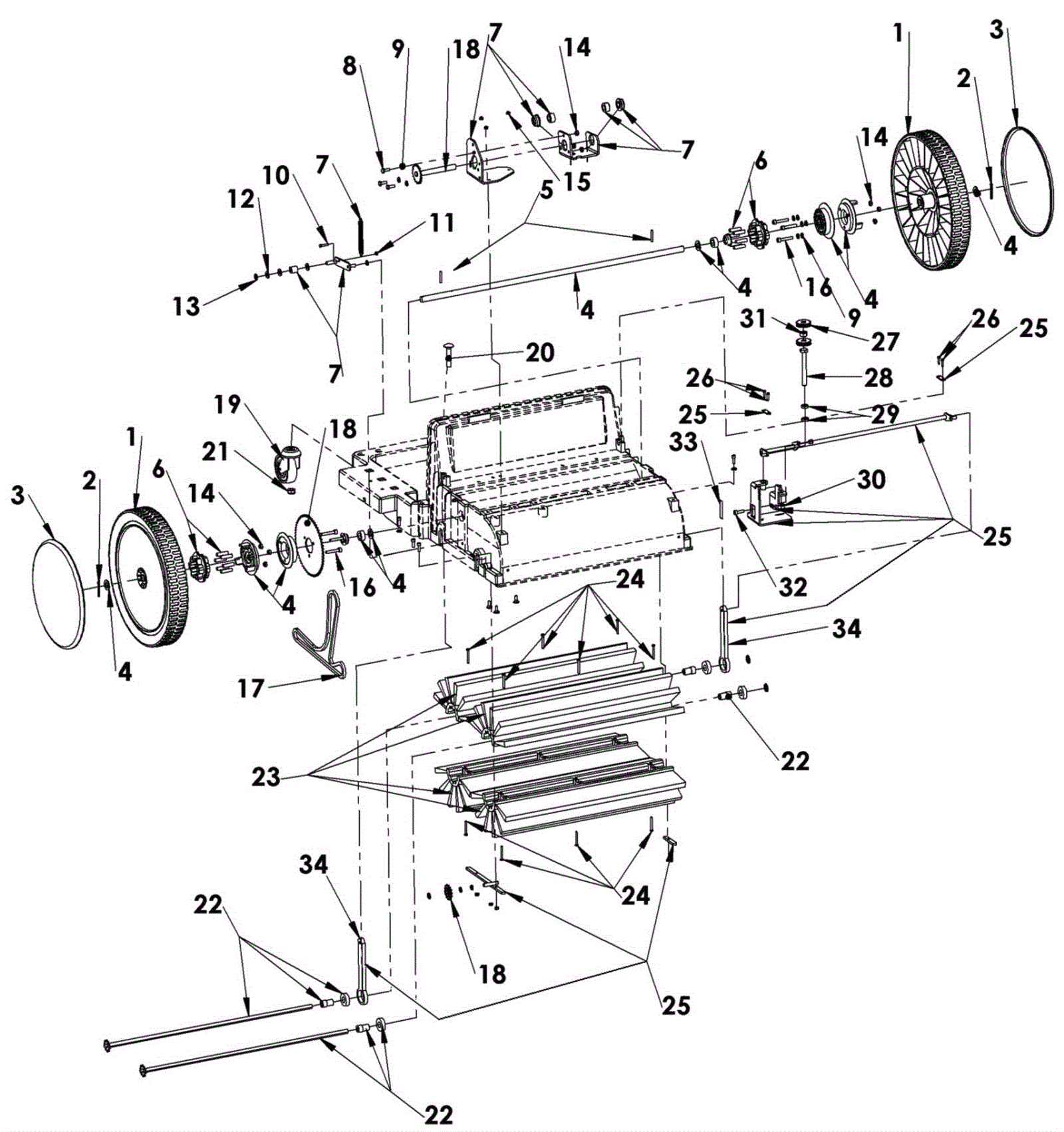

S3 Main Brush and Wheel Assembly

#PartDescriptionPriceReqNotesAvailability
1 275-6705 Wheel kit $219.45 2 (includes item 2) usually ships 10-16 days
2 275-6705 Wheel kit $219.45 2 (Cotter pin) (only available in kit) usually ships 10-16 days
3 475-1352 HUB CAP KIT, SWPR, TCO-TL, 2PK [S3, S3B] $34.21 1 usually ships 10-16 days
4 275-6706 Axle kit $212.52 1 (includes 5) usually ships 10-16 days
5 275-6706 Axle kit $212.52 2 (Cylinder pin) (only available in kit) usually ships 10-16 days
6 475-1119 WHEEL BEARING KIT, SWPR, 1-PK [S3] $22.99 1 usually ships 10-16 days
7 475-2467 ARM TENSIONER KIT, SWPR, CHAIN [S3] $408.10 1 (includes 8-16) usually ships 10-16 days
8 999-1383 Screw M6-1 x 16mm hex head stainless steel $3.96 3 ships same day
9 999-1261 Washer M6 flat stainless steel $0.99 9 ships same day
10 999-0789 Screw M4-.7 x 20mm hex head $0.99 1 ships same day
11 999-0955 Nut M4-.7 hex nylon lock $1.52 1 ships same day
12 999-9097 Washer M8 flat stainless steel $0.99 3 ships same day
13 475-2467 ARM TENSIONER KIT, SWPR, CHAIN [S3] $408.10 1 (Retainment ring) (only available in kit) usually ships 10-16 days
14 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 9 ships same day
15 999-0953 Nut M5-.8 hex nylon insert lock stainless steel $2.88 5 ships same day
16 999-1953 Screw M6-1 x 35mm socket stainless steel $2.07 6 ships same day
17 275-6777 Chain $98.78 1 usually ships 10-16 days
18 475-1705 CHAIN KIT, SWPR, BROOM DRIVE [S3, S3B] $71.94 1 usually ships 10-16 days
19 375-4412 Caster assembly with hardware $69.96 1 (includes 20 and 21) usually ships 10-16 days
20 375-4412 Caster assembly with hardware $69.96 1 (Bolt M10-1.5 x 55mm carriage) (only available in kit) usually ships 10-16 days
21 999-1120 Nut M10-1.5 nylon insert lock stainless steel $3.92 1 ships same day
22 375-4413 Main brush axle assembly $124.52 2 usually ships 10-16 days
23 375-4414 Main brush assembly $281.49 2 (includes 24) usually ships 10-16 days
24 375-4414 Main brush assembly $281.49 12 (Screw M3.9 x 38mm pan head) (only available in kit) usually ships 10-16 days
25 375-4415 Main brush adjustment assembly $259.05 1 (includes 26) usually ships 10-16 days
26 999-1661 Screw M3-.5 x 13mm pan head thread cutting $0.99 4 usually ships 1-5 days
27 275-6523 Knob kit $131.69 1 (includes 28-32) ships same day
28 999-1408 Screw M10-1.5 x 90mm hex head stainless steel $4.29 1 ships same day
29 999-1625 Nut M10-1.5 hex jam stainless steel $1.54 2 ships same day
30 999-1120 Nut M10-1.5 nylon insert lock stainless steel $3.92 1 ships same day
31 999-1428 Nut M10-1.5 hex zinc finish $0.99 1 ships same day
32 999-1320 Screw M6-1 x 20mm socket head stainless steel $0.99 1 ships same day
33 475-2095 LABEL SET, SWPR [S3/S3B] $184.36 1 usually ships 10-16 days
34 475-1486 ADJ LINK KIT, SWPR, REAR BRUSH [S3,S3B] $49.39 1 usually ships 10-16 days
