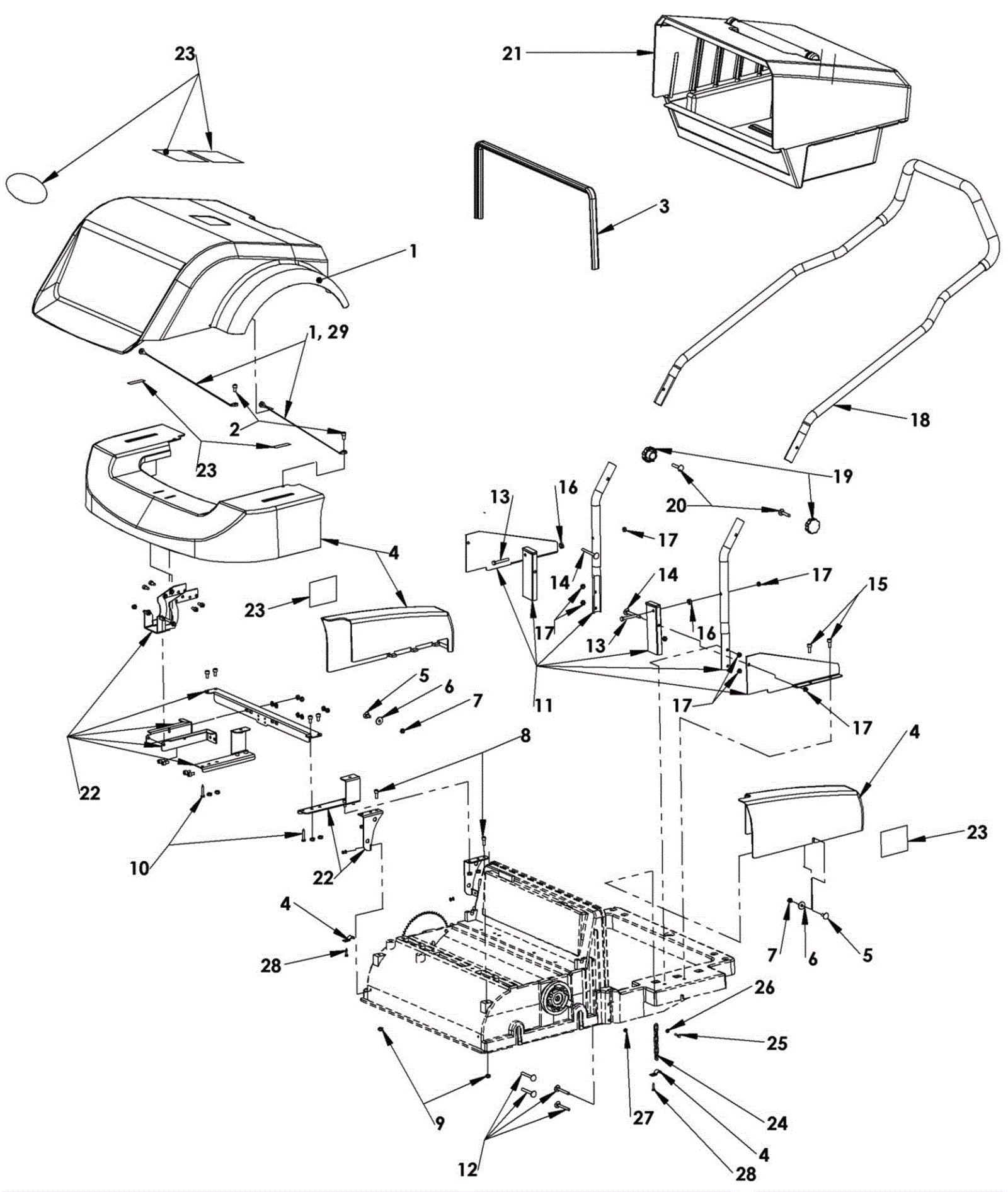

S3 Cover and Handle Assembly

#PartDescriptionPriceReqNotesAvailability
1 475-1943 COVER KIT,FRONT, SWPR, TCO-TL [S3/S3B] $127.16 1 (includes 2,5-10) usually ships 10-16 days
2 999-1268 Screw M6-1 x 12mm socket head stainless steel $0.99 2 ships same day
3 375-1642 Seal kit $77.55 1 usually ships 10-16 days
4 275-8996 Shroud assembly $143.55 1 usually ships 10-16 days
5 999-1646 Bolt M6-1 x 16mm carriage stainless steel $8.13 2 usually ships 1-5 days
6 999-1261 Washer M6 flat stainless steel $0.99 2 ships same day
7 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 2 ships same day
8 999-1647 Screw M6-1 x 16mm socket head stainless steel $0.99 22 ships same day
9 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 2 ships same day
10 475-1943 COVER KIT,FRONT, SWPR, TCO-TL [S3/S3B] $127.16 2 (Screw 5 x 30 TCUT) (only available in kit) usually ships 10-16 days
11 275-8998 Handle mounting assembly $394.79 1 (includes 12-17) usually ships 10-16 days
12 999-1950 Bolt M6-1 x 50mm carriage stainless steel $5.61 4 usually ships 12-18 days
13 999-0781 Screw M6-1 x 45mm hex head $0.99 2 ships same day
14 999-1951 Bolt M6-1 x 60mm carriage stainless steel $1.87 2 usually ships 12-18 days
15 999-1647 Screw M6-1 x 16mm socket head stainless steel $0.99 4 ships same day
16 999-1551 Nut M8-1.25 hex jam zinc plated $0.99 2 usually ships 1-5 days
17 999-0497 Nut M6-1 nylon insert lock stainless steel $0.99 12 ships same day
18 375-1641 Handle kit with soft grip $320.21 1 usually ships 10-16 days
19 375-1643 Handle knob kit with carriage bolt $21.23 1 (includes 20) usually ships 10-16 days
20 999-1952 Bolt M6-1 x 35mm carriage stainless steel $4.42 2 usually ships 12-18 days
21 475-2351 HOPPER KIT, SWPR, TCO-TL [S3/S3B] $315.26 1 usually ships 10-16 days
22 375-4406 Shroud mounting assembly $376.64 1 usually ships 10-16 days
23 475-2095 LABEL SET, SWPR [S3/S3B] $184.36 1 usually ships 10-16 days
24 275-6511 Static strap kit $4.88 1 (includes 25-28) usually ships 10-16 days
25 999-9106 Screw M4-.7 x 16mm hex head stainless steel $0.99 1 ships same day
26 999-9089 Washer M4 flat stainless steel $0.99 1 ships same day
27 999-1619 Nut M4 hex stainless steel $0.99 1 usually ships 12-18 days
28 999-1661 Screw M3-.5 x 13mm pan head thread cutting $0.99 2 usually ships 1-5 days
29 475-1977 COVER CABLE KIT, SWPR [S3, S3B] $90.97 1 usually ships 10-16 days
