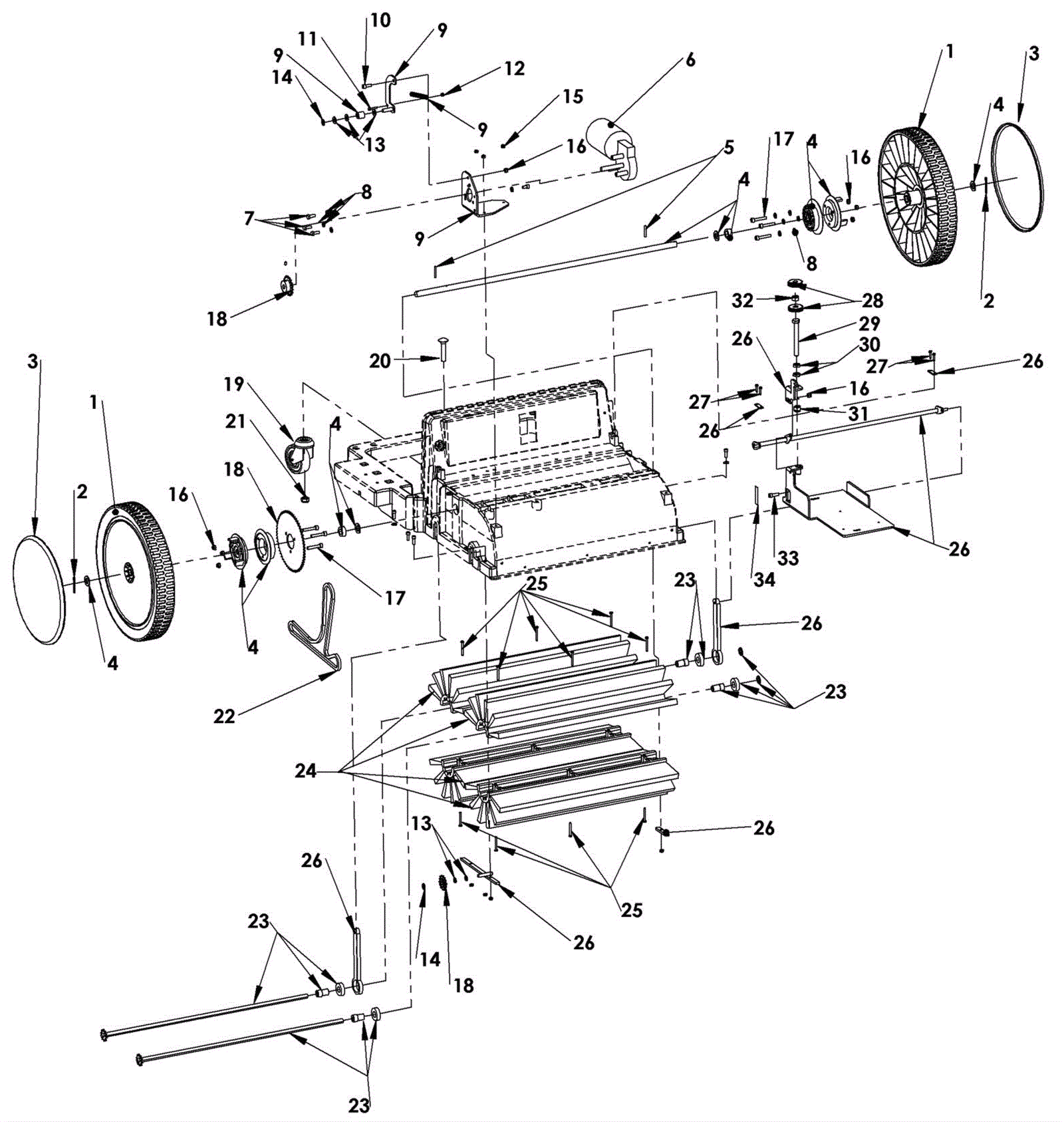

Main Brush and Wheel Assembly

#PartDescription ReqNotesAvailability
1 275-6705 Wheel kit 2 (includes item 2)
2 999-1980 Cotter pin 3.2 x 40mm 2
3 475-1352 HUB CAP KIT, SWPR, TCO-TL, 2PK [S3, S3B] 1
4 275-6706 Axle kit 1 (includes 5)
5 N/A Not available 2 (Cylinder pin) (only available in kit 275-6706)
6 275-6515 Propel motor kit 1 (includes 7 and 8)
7 999-1304 Screw M6-1 x 16mm hex head zinc 3
8 999-1261 Washer M6 flat stainless steel 9
9 375-4410 Main brush chain tensioner assembly 1 (includes 10-17)
10 999-1647 Screw M6-1 x 16mm socket head stainless steel 1
11 999-0789 Screw M4-.7 x 20mm hex head 1
12 999-0955 Nut M4-.7 hex nylon lock 1
13 999-1267 Washer M8 flat zinc 5
14 N/A Not available 2 (Retaining ring) (only available in kit 375-4410)
15 999-0953 Nut M5-.8 hex nylon insert lock stainless steel 3
16 999-0469 Nut M6-1 nylon insert lock zinc plated 7
17 999-1953 Screw M6-1 x 35mm socket stainless steel 6
18 375-4411 Drive wheel sprocket assembly 1
19 375-4412 Caster assembly with hardware 1 (includes 20 and 21)
20 N/A Not available 1 (Bolt M10-1.5 x 55mm Carriage) (only available in kit 375-4412)
21 999-1120 Nut M10-1.5 nylon insert lock stainless steel 1
22 275-6777 Chain 1
23 375-4413 Main brush axle assembly 2
24 375-4414 Main brush assembly 2 (includes 25)
25 N/A Not available 12 (Screw 3.9 x 38 pan head thread cutting) (only available in kit 375-4414)
26 375-4415 Main brush adjustment assembly 1 (includes 27)
28 275-6523 Knob kit 1 (includes 29-33)
29 999-1408 Screw M10-1.5 x 90mm hex head stainless steel 1
30 999-1625 Nut M10-1.5 hex jam stainless steel 2
31 999-1120 Nut M10-1.5 nylon insert lock stainless steel 1
32 999-1428 Nut M10-1.5 hex zinc finish 1
33 999-1320 Screw M6-1 x 20mm socket head stainless steel 1
34 475-2095 LABEL SET, SWPR [S3/S3B] 1
