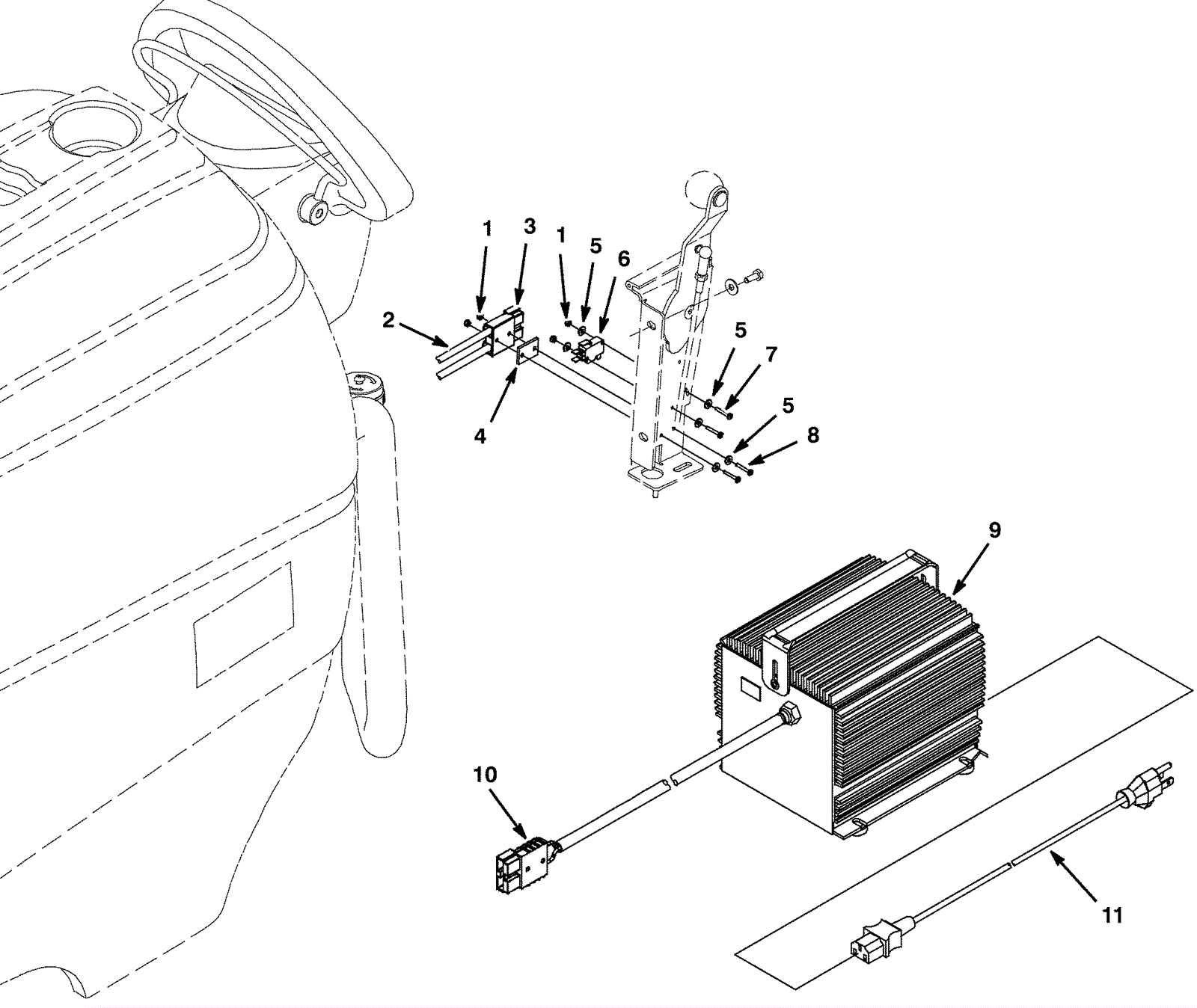

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-1161
|
Nut M3-.5 hex nylock stainless steel |
4 |
|
|
2 |
275-1587
|
Charger harness |
1 |
(includes 3) |
|
3 |
991-9284
|
50amp charger plug SB50 with pins (red) |
1 |
|
|
4 |
175-1197
|
Plate |
1 |
|
|
5 |
999-1158
|
Washer #6 flat stainless steel |
6 |
|
|
6 |
175-4273
|
Switch |
1 |
|
|
7 |
999-1040
|
Screw M3-.5 x 20mm pan head |
2 |
|
|
8 |
999-1221
|
Screw M3-.5 x 25mm pan head stainless steel |
2 |
|
|
9 |
175-3139
|
24V 19amp off board battery charger |
1 |
(includes 10- 11) |
|
10 |
991-9284
|
50amp charger plug SB50 with pins (red) |
1 |
|
|
11 |
275-0052
|
16/3 charger extension cord 10 foot |
1 |
|
|
