| # | Part | Description |
Req | Notes | Availability |
|---|

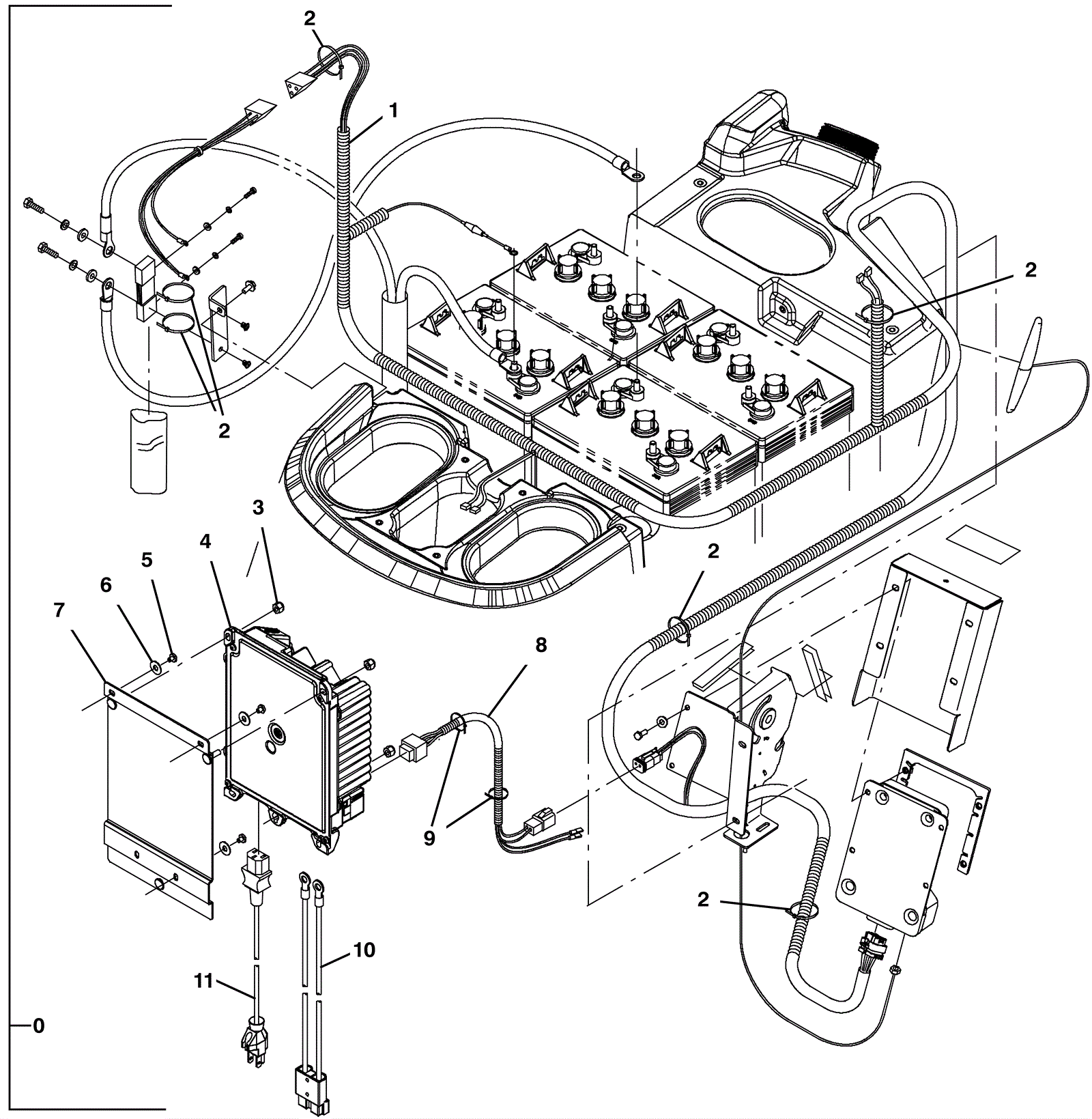

0 |
375-4007
|
Harness assembly |
1 |
(includes 1a-10) (kit needed to add iris battery manager functionality to telemetry models with on-board charger) |
|
1a |
375-4003
|
Iris telemetry wiring harness |
1 |
(includes 1b) |
|
1b |
275-7904
|
Fuse (Tennant Industrial) |
1 |
|
|
2 |
175-7795
|
Cable tie |
6 |
|
|
3 |
999-1201
|
Nut 1/4-28 nylon insert lock hex stainless steel |
3 |
|
|
4 |
375-4008
|
24V onboard charger |
1 |
|
|
5 |
175-0598
|
Screw 5mm-.8 x 6 pan head |
3 |
|
|
6 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
3 |
|
|
7 |
375-4009
|
Charger weldment bracket |
1 |
|
|
8 |
375-4010
|
Battery charger wiring harness |
1 |
|
|
9 |
175-0037
|
Wire tie |
2 |
|
|
10 |
375-4011
|
Cable assembly |
1 |
|
|
11 |
275-1585
|
16/3 charger power cord 15 foot (black) |
1 |
|
|
