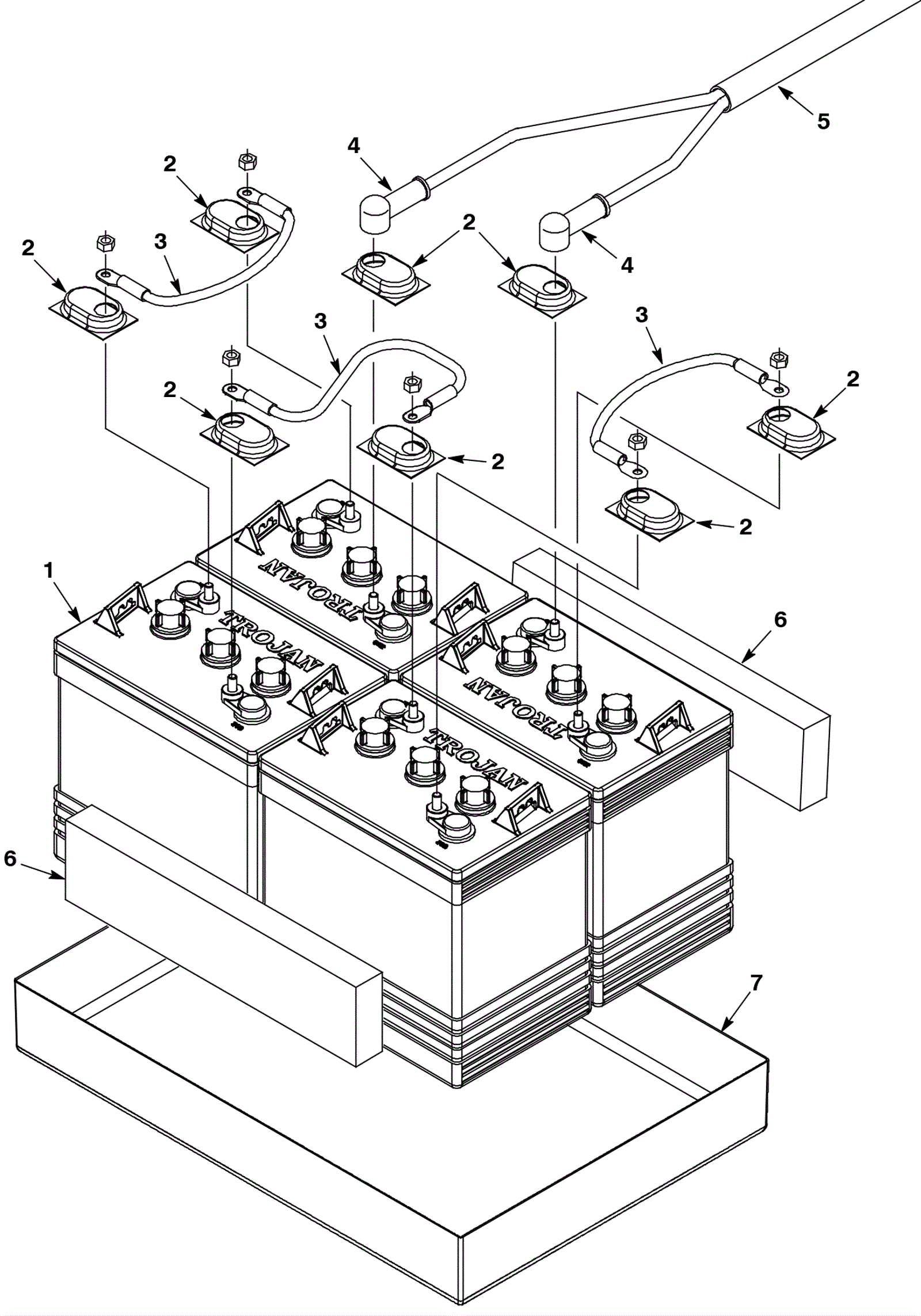

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
162-0003
|
6V 225Ah wet battery (SNSR) |
4 |
|
|
1b |
162-0043
|
6V 224Ah AGM battery (Group GC2) (SNSR) |
4 |
|
|
2a |
175-2121
|
Battery terminal cover (clear) |
8 |
(235 ah lead-acid) |
|
2b |
275-5948
|
Battery terminal cover (black) |
8 |
(235 ah lead-acid) |
|
3 |
998-0010
|
Battery jumper cable - ring type (red) |
3 |
|
|
4 |
175-1103
|
Battery cable boot (black) |
8 |
|
|
5a |
375-3996
|
Fused battery harness |
1 |
(after SN 10632987) |
|
5b |
275-1428
|
Battery harness |
1 |
(before SN 10632988) |
|
6 |
175-1352
|
Battery insert |
2 |
|
|
7 |
175-8751
|
Battery tray |
1 |
|
|
