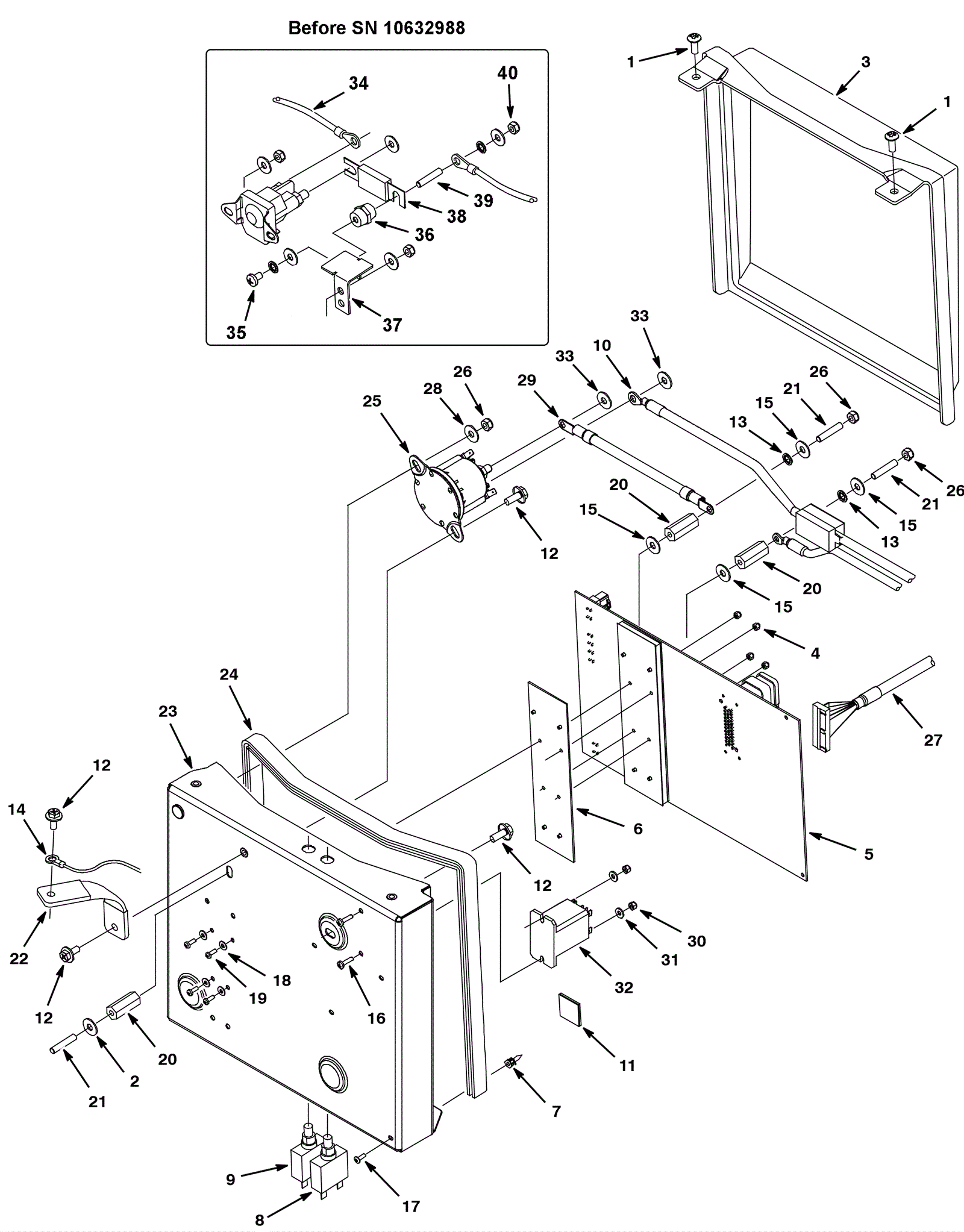

| # | Part | Description |
Req | Notes | Availability |
|---|
1 |
999-1084
|
Screw M6-1 x 16mm truss head slotted stainless steel |
2 |
|
|
2 |
999-0335
|
Washer 1/4 x 5/8 SAE flat stainless steel |
2 |
|
|
3 |
275-1423
|
Electronics cover |
1 |
|
|
4 |
999-1161
|
Nut M3-.5 hex nylock stainless steel |
4 |
|
|
5a |
275-6272
|
Logic circuit board kit |
1 |
(includes 5b) |
|
5b |
275-1425
|
Static ground strap (Tennant Industrial) |
1 |
|
|
6 |
275-1426
|
Heat sink thermal pad |
1 |
|
|
7 |
275-1430
|
Circuit board support |
4 |
|
|
8 |
175-2557
|
5amp circuit breaker |
1 |
|
|
9 |
175-2336
|
10amp circuit breaker |
1 |
|
|
10 |
375-3996
|
Fused battery harness |
1 |
(after SN 10632987) |
|
11 |
175-3233
|
Cable tie mount |
3 |
|
|
12 |
999-1383
|
Screw M6-1 x 16mm hex head stainless steel |
4 |
|
|
13 |
999-0238
|
Washer 1/4 internal star lock zinc plated |
2 |
(after SN 10632987) |
|
14 |
275-1429
|
Harness |
1 |
|
|
15 |
275-4965
|
Washer 6.4b x 16d flat stainless steel |
4 |
|
|
16 |
999-9113
|
Screw M4-.7 x 16mm pan head phillips stainless steel |
2 |
(after SN 10306156) |
|
17 |
999-0434
|
Screw 6 x 3/8 pan head phillips |
4 |
|
|
18 |
275-1431
|
Washer 0.14b x 0.31d flat |
4 |
|
|
19 |
999-1040
|
Screw M3-.5 x 20mm pan head |
4 |
|
|
20 |
175-8826
|
Spacer |
3 |
|
|
21 |
175-7843
|
Screw M6-1 x 30mm set stainless steel |
3 |
|
|
22 |
275-1432
|
Static strap |
1 |
|
|
23a |
375-3997
|
Electrical housing kit |
1 |
(includes 24) (after SN 10632987) |
|
23b |
275-1433
|
Electrical housing kit |
1 |
(includes 24) (before SN 10632988) |
|
24 |
175-8827
|
Foam gasket |
1 |
|
|
25a |
375-1275
|
150amp relay |
1 |
|
|
26 |
999-0439
|
Nut M6-1 hex coarse thread |
3 |
|
|
27 |
275-1437
|
Ribbon cable |
1 |
|
|
28 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
1 |
|
|
29a |
375-3998
|
Cable controller (red) |
1 |
(after SN 10632987) |
|
29b |
275-1435
|
Control cable (red) |
1 |
(before SN 10632988) |
|
30 |
999-0954
|
Nut M4-.7 nylon insert lock stainless steel |
2 |
(after SN 10306156) |
|
31 |
999-0412
|
Washer #8 SAE flat |
2 |
(after SN 10306156) |
|
32 |
175-6635
|
24V relay |
1 |
(after SN 10306156) |
|
33 |
375-3999
|
Washer |
2 |
(after SN 10632987) |
|
34 |
275-1428
|
Battery harness |
1 |
(before SN 10632988) |
|
35 |
999-0807
|
Screw M6-1 x 10mm flat head phillips |
1 |
(between SN 10473940 and SN 10632987) |
|
36 |
175-7864
|
Wire stand off |
1 |
(before SN 10632988) |
|
37 |
275-1434
|
Stand-off bracket |
1 |
(before SN 10632988) |
|
38 |
275-1438
|
100amp fuse |
1 |
(before SN 10632988) |
|
39 |
175-7843
|
Screw M6-1 x 30mm set stainless steel |
1 |
(between SN 10473940 and SN 10632987) |
|
40 |
999-1308
|
Nut M6-1 hex stainless steel |
1 |
(between SN 10473940 and SN 10632987) |
|
