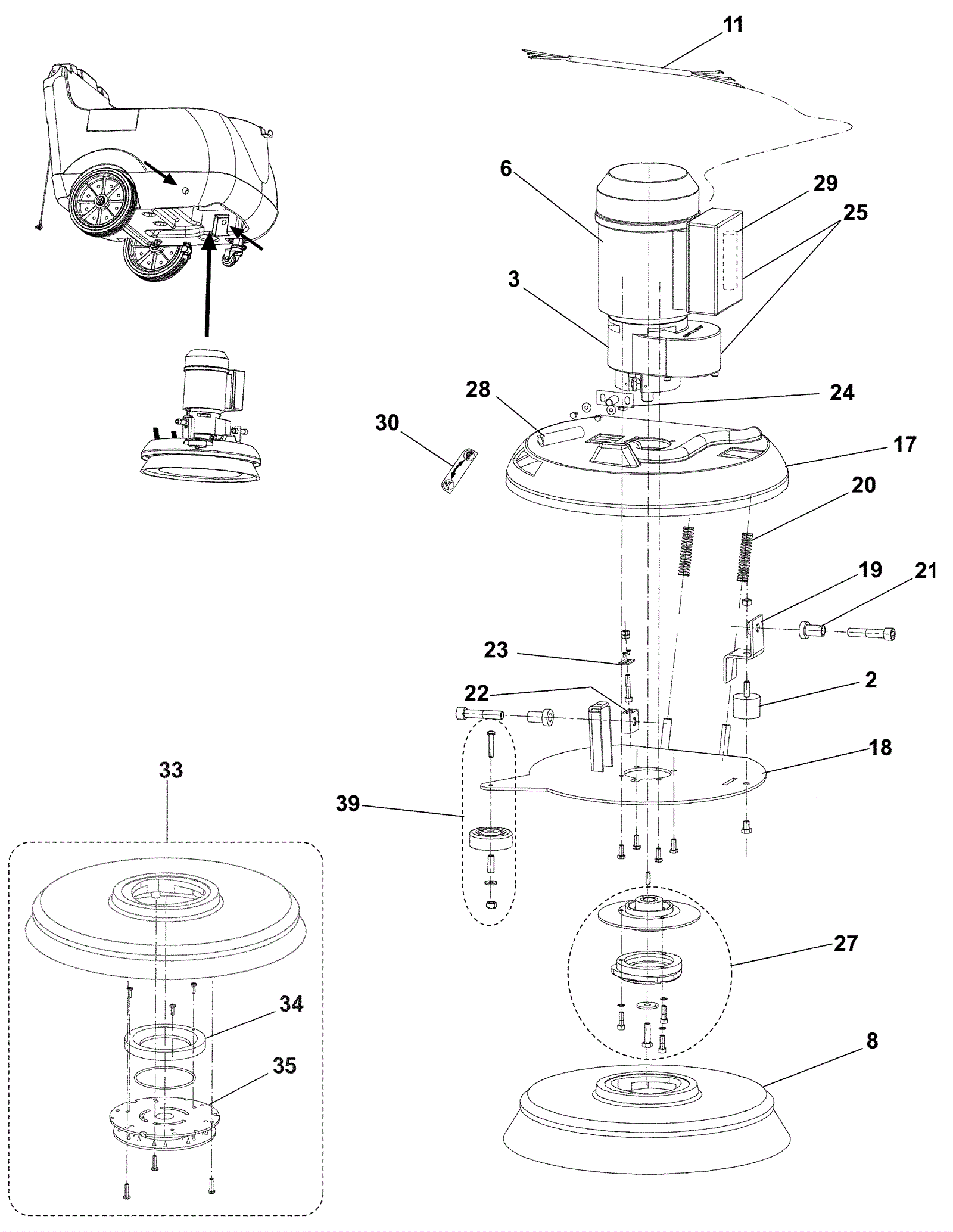

| # | Part | Description |
Req | Notes | Availability |
|---|
2 |
272-1919
|
Vibration damping M8 (set of 2) |
1 |
|
|
3 |
N/A
|
Not available |
1 |
(Reduction gear) |
|
6 |
270-0106
|
Brush motor |
1 |
|
|
8a |
181-2004
|
17 inch midgrit lite scrubbing brush - 180 grit (blue) |
1 |
|
|
8b |
181-2005
|
Brush midrit 240 |
1 |
|
|
8c |
181-2006
|
Brush prolite |
1 |
|
|
8d |
181-2007
|
Brush union mix |
1 |
|
|
11 |
N/A
|
Not available |
1 |
(Brush motor cable) |
|
17 |
272-5495
|
Brush protection |
1 |
|
|
18 |
272-5496
|
Brush support plate (OBSOLETE) |
1 |
|
|
19 |
N/A
|
Not available |
1 |
(Bracket) |
|
20 |
272-5317
|
Spring |
2 |
|
|
21 |
272-5497
|
Bushing (OBSOLETE) |
2 |
|
|
22 |
272-5498
|
Brush deck adjuster block (OBSOLETE) |
1 |
|
|
23 |
272-5499
|
Plate (OBSOLETE) |
1 |
|
|
24a |
272-5506
|
Copper hose (OBSOLETE) |
1 |
(after SN 054920335) |
|
24b |
272-5500
|
Copper hose |
1 |
(before SN 054920336) |
|
25 |
170-9272
|
Reduction gear motor |
1 |
|
|
27 |
172-4845
|
Polygonal holder with flange kit |
1 |
|
|
28 |
272-0748
|
640mm hose (OBSOLETE) |
1 |
|
|
29a |
572-3025
|
CAPACITOR 450 V 40 UF |
1 |
|
|
29b |
572-3022
|
CAPACITOR 400 V 65 UF |
1 |
|
|
30 |
N/A
|
Not available |
1 |
(after SN 054920335) (Decal) |
|
32 |
272-5502
|
Brush system hardware kit |
1 |
|
|
33 |
181-2008
|
Pad driver |
1 |
|
|
34 |
272-5503
|
Nylon ring |
1 |
|
|
35 |
272-5504
|
Pad retainer |
1 |
|
|
39 |
272-5507
|
Bumper roller kit |
1 |
|
|
