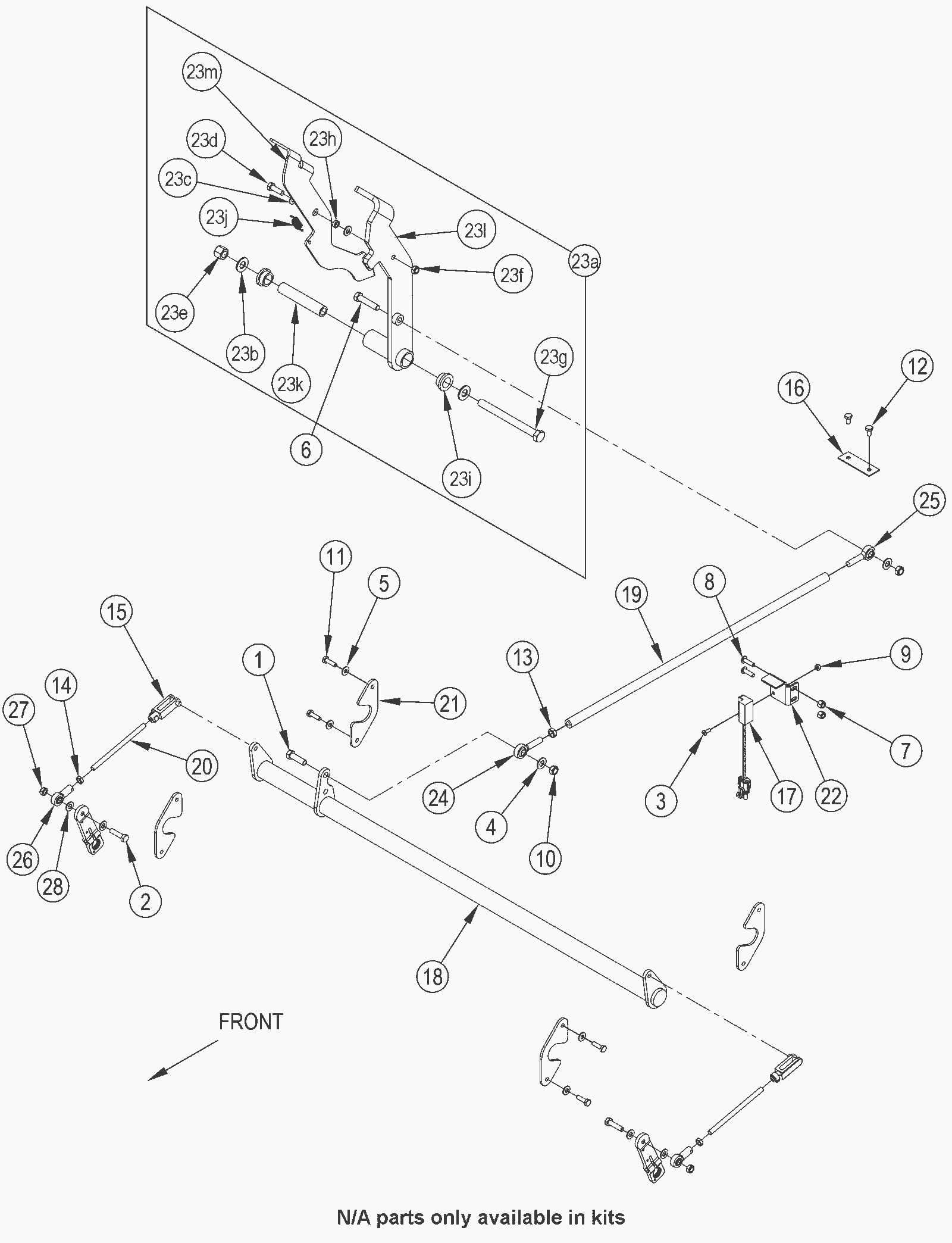

Brake Linkage Assembly

#PartDescription ReqNotesAvailability
1 N/A Not available 1 (screw 3/8-16 x 1 1/4 hex head) (only available with KIT2)
2 999-0829 Screw 5/16-18 x 1 1/4 hex head plain finish 2 (included in KIT2)
3 999-0333 Screw 10-24 x 1/2 pan head phillips stainless steel 1 (included in KIT2)
4 999-0120 Washer 3/8 SAE flat 2 (included in KIT1 and KIT2)
5 999-0123 Washer 1/4 SAE flat zinc plated 4 (included in KIT2)
6 999-1006 Screw 3/8-16 x 1 3/4 hex head stainless steel 1 (included in KIT1 and KIT2)
7 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel 2 (included in KIT2)
8 999-1136 Screw 1/4-20 x 7/8 pan head phillips stainless steel 2 (included in KIT2)
9 N/A Not available 1 (nut 10-24 hex nylon loc thin) (only available with KIT2)
10 N/A Not available 2 (nut 3/8-16 hex nylon loc thin) (only available with KIT1 and KIT2)
11 999-0822 Screw 1/4-20 x 7/8 hex head plain finish 4 (included in KIT2)
12 999-1532 Screw 1/4-20 x 1/2 hex head stainless steel 2 (included in KIT1 and KIT2)
13 999-0169 Nut 3/8-24 hex jam plain finish 1 (included in KIT2)
14 999-0763 Nut 5/16-24 hex jam plain finish 2 (included in KIT2)
15 172-9531 Clevis assembly 2
16 272-7653 Brake lock catch 1 (included in KIT1)
17 372-3090 Proximity sensor 1
18 372-1450 Weldment brake bar 1
19 372-1451 Brake rod 1
20 372-1452 Brake rod 2
21 372-1453 Pivot brake 4
22 372-1454 Switch mount bracket 1
23a N/A Not available 1 (brake pedal assembly) (includes 6, 23b-23m) (only available with KIT1)
23b 999-0114 Washer 1/2 SAE flat 2 (included in KIT1)
23c 999-9004 Washer 5/16 SAE flat stainless steel 2 (included in KIT1)
23d 999-0031 Bolt 5/16-18 x 1 hex head grade 5 zinc plated 1 (included in KIT1)
23e 999-1208 Nut 1/2-13 nylon insert lock stainless steel 1 (included in KIT1)
23f N/A Not available 1 (nut 5/16-18 hex nylon loc thin) (only available with KIT1)
23g N/A Not available 1 (screw 1/2-13 x 5 1/2 hex head) (only available with KIT1)
23h N/A Not available 1 (bushing) (only available with KIT1)
23i N/A Not available 2 (bearing) (only available with KIT1)
23j N/A Not available 1 (extension spring) (only available with KIT1)
23k N/A Not available 1 (bushing) (only available with KIT1)
23l N/A Not available 1 (brake pedal weldment) (only available with KIT1)
23m N/A Not available 1 (park brake pedal) (only available with KIT1)
24 372-1455 Right hand rod end 1
25 372-1456 Left hand rod end 1
26 272-2959 Rod end 2
27 N/A Not available 2 (nut 5/16-18 hex nylon loc thin) (only available with KIT2)
28 999-9004 Washer 5/16 SAE flat stainless steel 4 (included in KIT2)
KIT1 372-1457 Brake pedal kit 1 (includes 4, 6, 10, 12, 16, 23a-23m)
KIT2 372-1458 Brake linkage hardware kit 1 (includes 1-14, 27-28)
