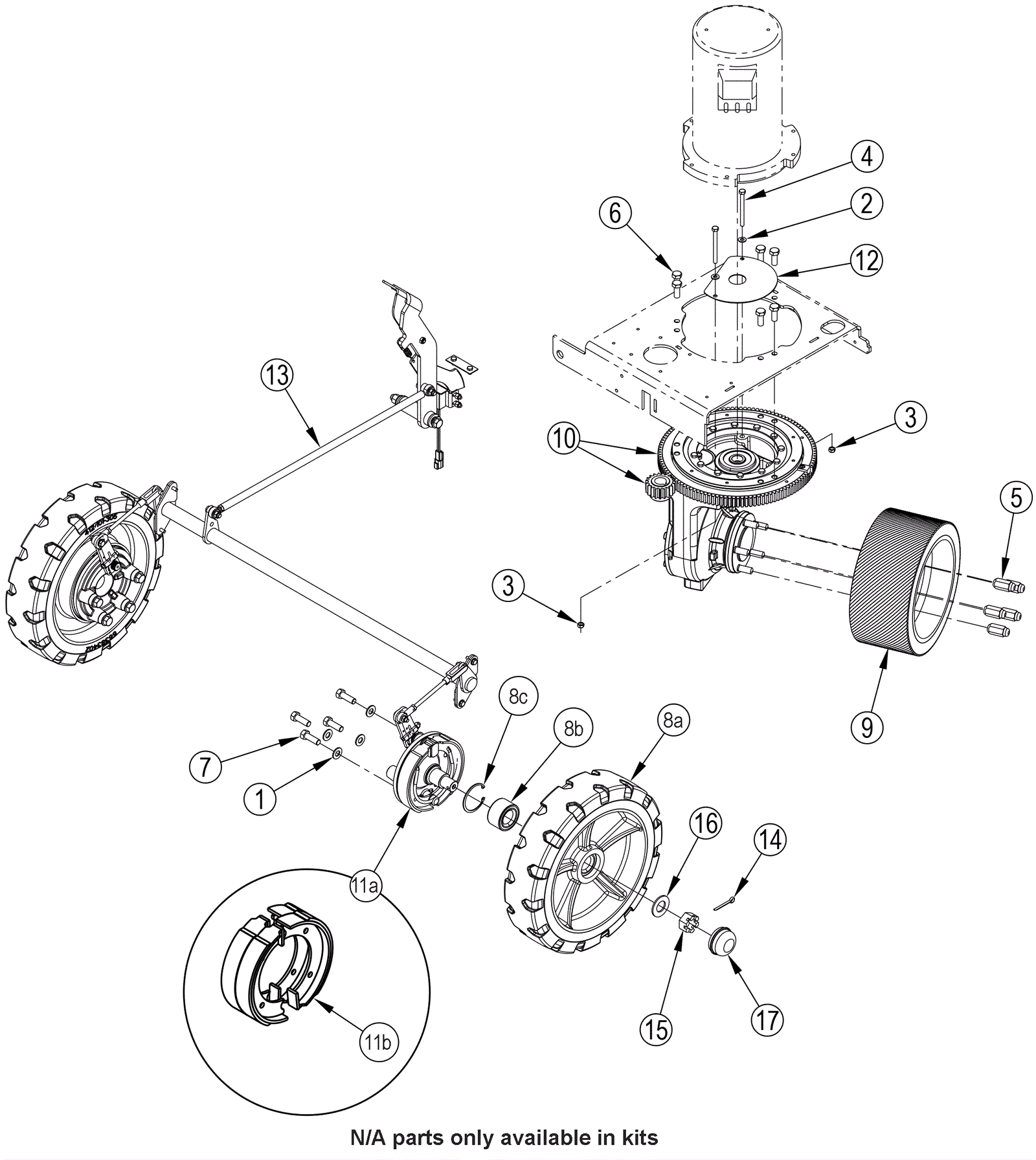

Wheel System Assembly

#PartDescription ReqNotesAvailability
1 999-0114 Washer 1/2 SAE flat 8 (included in KIT1)
2 999-9004 Washer 5/16 SAE flat stainless steel 2 (included in KIT1 and KIT4)
3 N/A Not available 2 (nut 5/16-18 hex nylon loc thin) (only available with KIT1 and KIT4)
4 999-0977 Screw 5/16-18 x 3 1/2 hex head stainless steel 2 (included in KIT1 and KIT4)
5 N/A Not available 5 (nut M14 x 1.5 lug) (only available with KIT1 and KIT3)
6 N/A Not available 6 (screw M12-1.75 x 30mm hex loc) (only available with KIT1)
7 999-1889 Screw 1/2-20 x 1 1/2 hex head plain finish 8 (included in KIT1)
8a 272-3779 Mold-on wheel 16.2 x 4 2
8b 272-3780 Wheel bearing 1 (for 8a)
8c 272-3781 Snap ring 1 (for 8a)
9 372-2979 Drive wheel 1
10 372-2980 Traction drive gearbox (OBSOLETE) 1 (included in KIT2)
11 372-2981 Brake and spindle assembly 2
12 N/A Not available 1 (splash shield) (only available with KIT4)
13a N/A Not available 1 (see Brake Linkage Assembly)
13b 272-3777 Brake shoe kit 1 (contains 4 brake shoes)
14 170-7716 Cotter pin 2
15 999-1890 Nut 1-14 slotted 2
16 472-3629 WSH-FLT 18-8 SS-1.062X2X.13 2
17 272-3783 Grease cap 2
KIT1 372-3324 Wheel system hardware kit 1 (includes 1-7)
KIT2 372-2986 Ring/pinion gear kit 1 (includes 10)
KIT3 372-2978 Lug nut kit 1 (includes 5)
KIT4 372-2984 Drive motor kit 1 (includes 2-4, 12)
