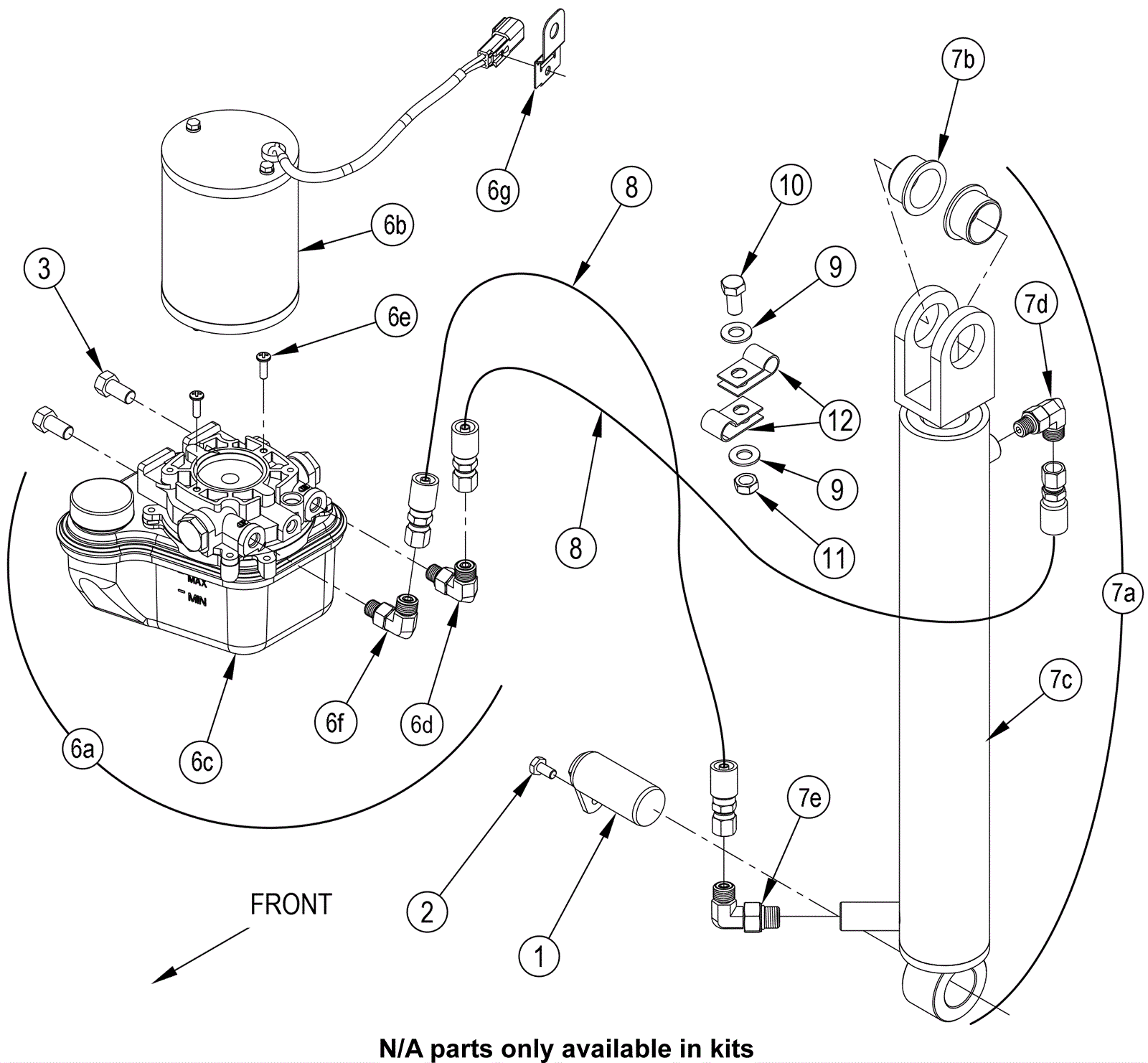

CS7010 Hydraulic System Assembly - ORFS Equipped Machines

#PartDescriptionPriceReqNotesAvailability
1 272-3209 Left hinge pin weldment $39.03 1 usually ships 1-5 days
2 999-1532 Screw 1/4-20 x 1/2 hex head stainless steel $0.99 1 (included in KIT1) ships same day
3 N/A Not available Call for price 2 (screw 3/8-16 x 3/4 hex head loc) (only available with KIT1) usually ships 3-26 days
6a 372-3258 Hydraulic power pack assembly $1,565.99 1 (includes 6b-6g) usually ships 16-41 days
6b 372-3259 36V motor $402.90 1 usually ships 16-41 days
6c 372-2834 Hydraulic pump/reservoir assembly $1,714.77 1 usually ships 16-41 days
6d 272-4850 90 degree elbow $44.79 1 usually ships 1-5 days
6e 999-1487 Screw 10-32 x 5/8 pan head phillips stainless steel $0.99 2 ships same day
6f 372-3262 Elbow fitting $21.41 1 usually ships 16-41 days
6g 372-3263 Connector clip $5.50 1 usually ships 16-41 days
7a N/A Not available Call for price 1 (hopper lift cylinder assembly) (includes 7b-7e) usually ships 3-26 days
7b 372-2818 Flange bearing $16.50 2 usually ships 16-41 days
7c 372-2838 Hydraulic cylinder $671.43 1 usually ships 16-41 days
7d 272-4850 90 degree elbow $44.79 1 usually ships 1-5 days
7e 272-4727 Fitting $51.28 1 usually ships 1-5 days
8 372-3264 Hose $55.65 2 usually ships 16-41 days
9 999-0120 Washer 3/8 SAE flat $0.99 2 ships same day
10 372-2116 Screw 3/8-16 x 3/4 hex head $11.99 1 usually ships 16-41 days
11 999-0324 Nut 3/8-16 nylon insert lock jam zinc plated $0.99 1 ships same day
12 372-3106 Clamp $6.05 2 usually ships 16-41 days
N/S 372-2836 Hydraulic reservoir kit $283.73 1 (for 6c) usually ships 16-41 days
N/S 372-2837 Hydraulic reservoir cap $39.03 1 (for 6c) usually ships 16-41 days
N/S 372-2839 Seal kit $132.86 1 (for 7c) usually ships 16-41 days
KIT1 372-3261 Hydraulic system hardware kit $6.05 1 (includes 2-5) usually ships 16-41 days
