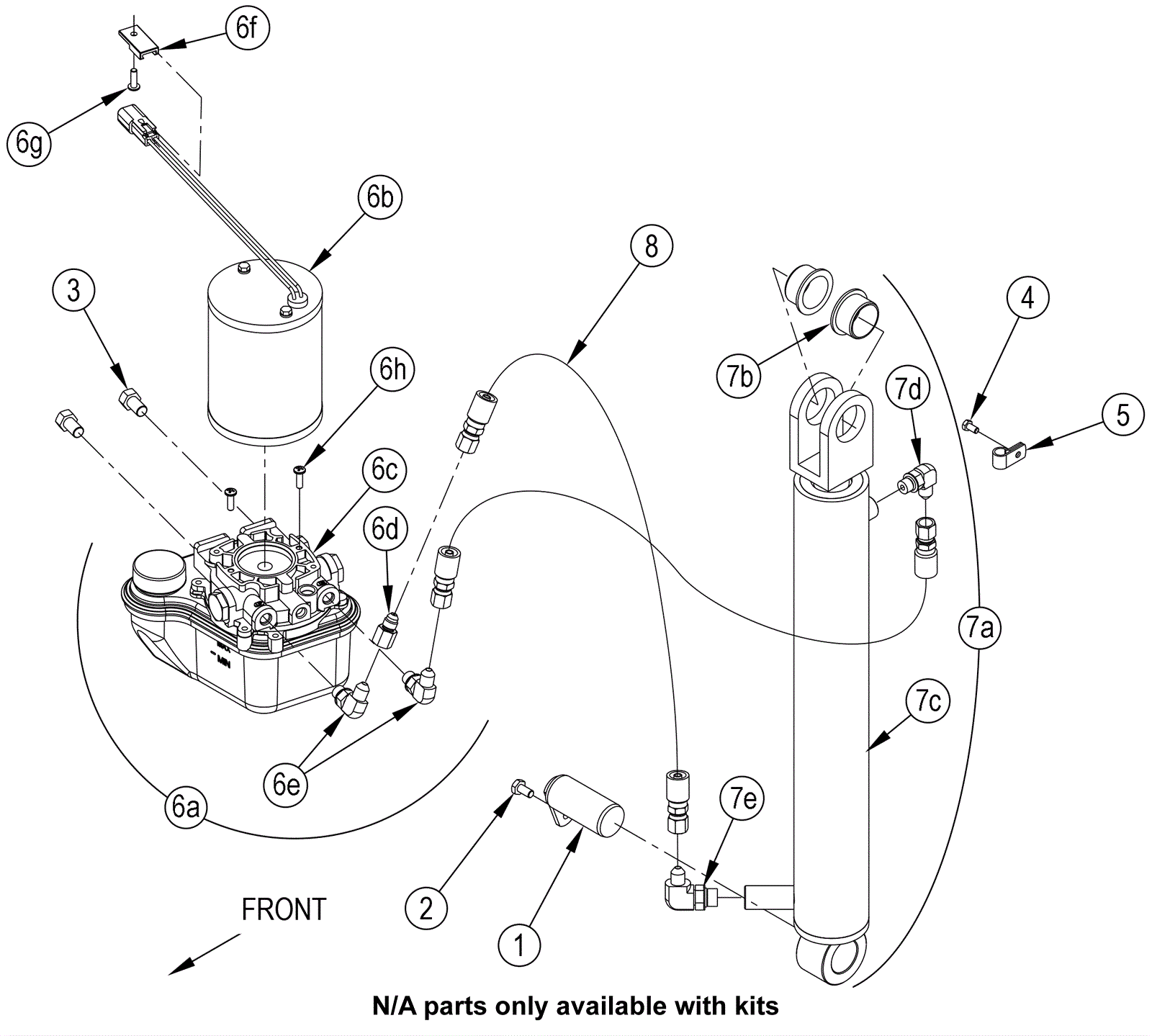

CS7010 Hydraulic System Assembly - 37 Degree Flare Equipped Machines

#PartDescriptionPriceReqNotesAvailability
1 272-3209 Left hinge pin weldment $39.03 1 usually ships 1-5 days
2 999-1532 Screw 1/4-20 x 1/2 hex head stainless steel $0.99 1 (included in KIT1) ships same day
3 999-0882 Screw 3/8-16 x 3/4 hex head hot dipped galvanized $1.14 2 (included in KIT1) ships same day
4 N/A Not available Call for price 1 (screw 10-24 x 3/8 hex full thread) (only available with KIT1) usually ships 3-26 days
5 N/A Not available Call for price 1 (p clamp) (only available with KIT1) usually ships 3-26 days
6a 372-3258 Hydraulic power pack assembly $1,565.99 1 (includes 6b-6h) usually ships 16-41 days
6b 372-3259 36V motor $402.90 1 usually ships 16-41 days
6c 372-2834 Hydraulic pump/reservoir assembly $1,714.77 1 usually ships 16-41 days
6d 372-2835 Orifice fitting $28.74 1 usually ships 16-41 days
6e 272-2983 90 degree elbow $33.96 2 usually ships 1-5 days
6f 372-3260 Deutsh connector clip $6.05 1 usually ships 16-41 days
6g 999-0332 Screw 10-24 x 5/8 pan head phillips stainless steel $1.54 1 ships same day
6h 999-1487 Screw 10-32 x 5/8 pan head phillips stainless steel $0.99 2 ships same day
7a N/A Not available Call for price 1 (hopper lift cylinder assembly) (includes 7b-7e) usually ships 3-26 days
7b 372-2818 Flange bearing $16.50 2 usually ships 16-41 days
7c 372-2838 Hydraulic cylinder $671.43 1 usually ships 16-41 days
7d 272-2983 90 degree elbow $33.96 1 usually ships 1-5 days
7e 272-3151 90 degree elbow $57.08 1 usually ships 1-5 days
8 372-2840 Hose assembly $37.69 2 usually ships 16-41 days
N/S 372-2836 Hydraulic reservoir kit $283.73 1 (for 6c) usually ships 16-41 days
N/S 372-2837 Hydraulic reservoir cap $39.03 1 (for 6c) usually ships 16-41 days
N/S 372-2839 Seal kit $132.86 1 (for 7c) usually ships 16-41 days
KIT1 372-3261 Hydraulic system hardware kit $6.05 1 (includes 2-5) usually ships 16-41 days
