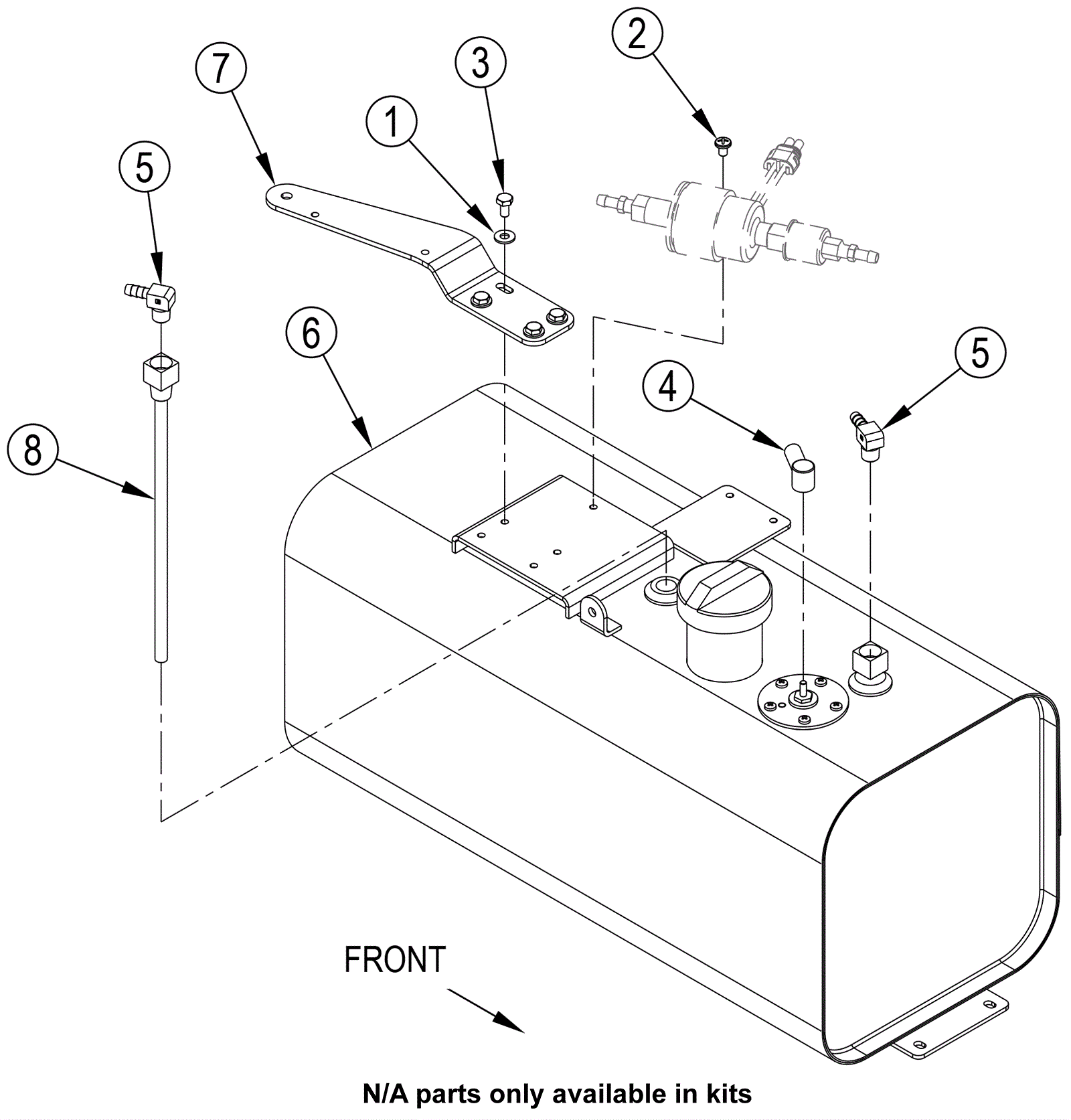

CS7010 Diesel Fuel Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0123 Washer 1/4 SAE flat zinc plated $0.99 4 ships same day
2 272-1562 Screw 1/4-20 x 3/5 pan head thread forming $10.85 1 ships same day
3 272-9677 Screw 1/4-20 x 1/2 hex head $12.31 4 usually ships 13-18 days
4 172-2303 Rubber boot $13.76 1 usually ships 1-5 days
5 372-1569 90 degree elbow $16.95 2 usually ships 13-18 days
6 372-1571 Fuel tank assembly $1,240.50 1 usually ships 13-18 days
7 372-1572 Tank support bracket $41.54 1 usually ships 13-18 days
8 372-3253 Fuel return tube $100.10 1 usually ships 13-18 days
N/S 272-7868 Fuel cap $34.14 1 usually ships 1-5 days
N/S 372-3197 Fuel level sender $551.66 1 usually ships 13-18 days
N/S 372-3198 Fuel withdrawl tube $107.50 1 usually ships 13-18 days
