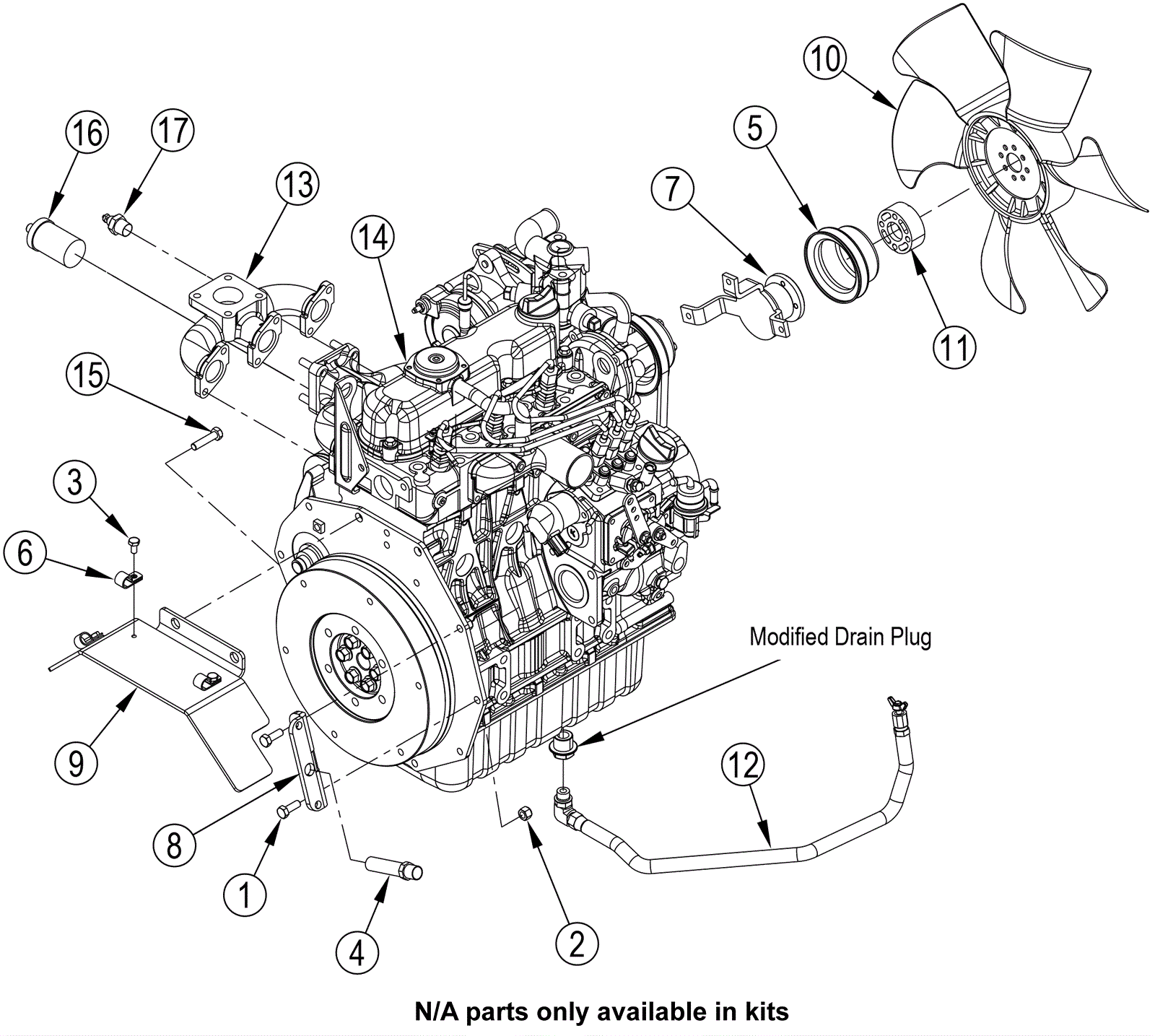

CS7010 Diesel Engine Sub Assembly

#PartDescriptionPriceReqNotesAvailability
1 181-0983 Screw 5/16-18 x 7/8 hex head $11.99 2 usually ships 1-5 days
2 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 2 ships same day
3 272-9677 Screw 1/4-20 x 1/2 hex head $11.99 3 usually ships 1-5 days
4 272-7817 Speed sensor $440.37 1 usually ships 1-5 days
5 272-7755 89mm fan pulley $101.86 1 usually ships 1-5 days
6 172-2122 P clamp $11.99 3 usually ships 16-41 days
7 372-2783 Low fan kit $850.49 1 usually ships 16-41 days
8 372-2769 Mag pickup bracket $131.43 1 usually ships 16-41 days
9 372-3246 Guard plate (OBSOLETE) Call for price 1 usually ships 16-41 days
10 372-2248 Fan $186.96 1 usually ships 16-41 days
11 372-2781 Fan spacer $49.86 1 usually ships 16-41 days
12 372-2793 Drain hose assembly $156.64 1 usually ships 16-41 days
13 372-3247 Exhaust manifold $261.33 1 usually ships 16-41 days
14a 372-2791 Engine $16,701.60 1 (after December 2018) usually ships 16-41 days
14b 372-2791 Engine $16,701.60 1 (before January 2019) usually ships 16-41 days
15 999-0786 Screw M8-1.25 x 35mm hex head stainless steel $1.12 1 ships same day
16 272-7813 Oil pressure switch $283.73 1 (after December 2018) usually ships 16-41 days
17 272-7814 Temperature switch $164.67 1 (after December 2018) usually ships 16-41 days
N/S 999-1053 Washer 5/16 internal star lock stainless steel $0.99 1 (before January 2019) ships same day
N/S 372-2792 Alternator $1,327.08 1 usually ships 16-41 days
N/S 272-7808 Fuel filter cartridge $17.90 1 usually ships 1-5 days
N/S 272-7809 Oil filter cartridge $25.36 1 usually ships 16-41 days
N/S 372-2793 Drain hose assembly $156.64 1 usually ships 16-41 days
N/S 472-9174 ALTERNATOR BELT $216.68 1 usually ships 16-41 days
N/S 272-7747 Fan belt $76.52 1 usually ships 1-5 days
N/S 272-7796 Thermostat kit $96.09 1 usually ships 16-41 days
N/S 272-7812 Starter motor $1,640.40 1 usually ships 1-5 days
N/S 272-7815 Throttle shut down actuator $1,565.99 1 usually ships 1-5 days
N/S 372-2763 Controller governor $2,236.71 1 usually ships 16-41 days
N/S 272-7817 Speed sensor $440.37 1 usually ships 1-5 days
N/S 372-2761 Radiator hose $223.84 1 usually ships 16-41 days
N/S 372-2762 Radiator hose $55.65 1 usually ships 16-41 days
N/S 272-7818 Electronic fuel pump $313.32 1 usually ships 1-5 days
N/S 272-3327 Strainer $41.84 1 usually ships 1-5 days
N/S 372-2797 Fuel return tube (OBSOLETE) Call for price 1 usually ships 16-41 days
N/S 372-3249 Lower gasket set $179.06 1 usually ships 16-41 days
N/S 272-7844 Water pump $1,073.64 1 usually ships 16-41 days
N/S 372-3193 Alternator pulley $179.06 1 usually ships 16-41 days
N/S 372-3252 Glow plug $209.34 1 usually ships 16-41 days
N/S 272-3272 Safety element $40.45 1 usually ships 1-5 days
N/S 272-3271 Primary element $37.61 1 ships same day
N/S 272-7795 Oil fill cap $41.84 1 usually ships 1-5 days
N/S 372-3194 Radiator cap $22.41 1 usually ships 16-41 days
