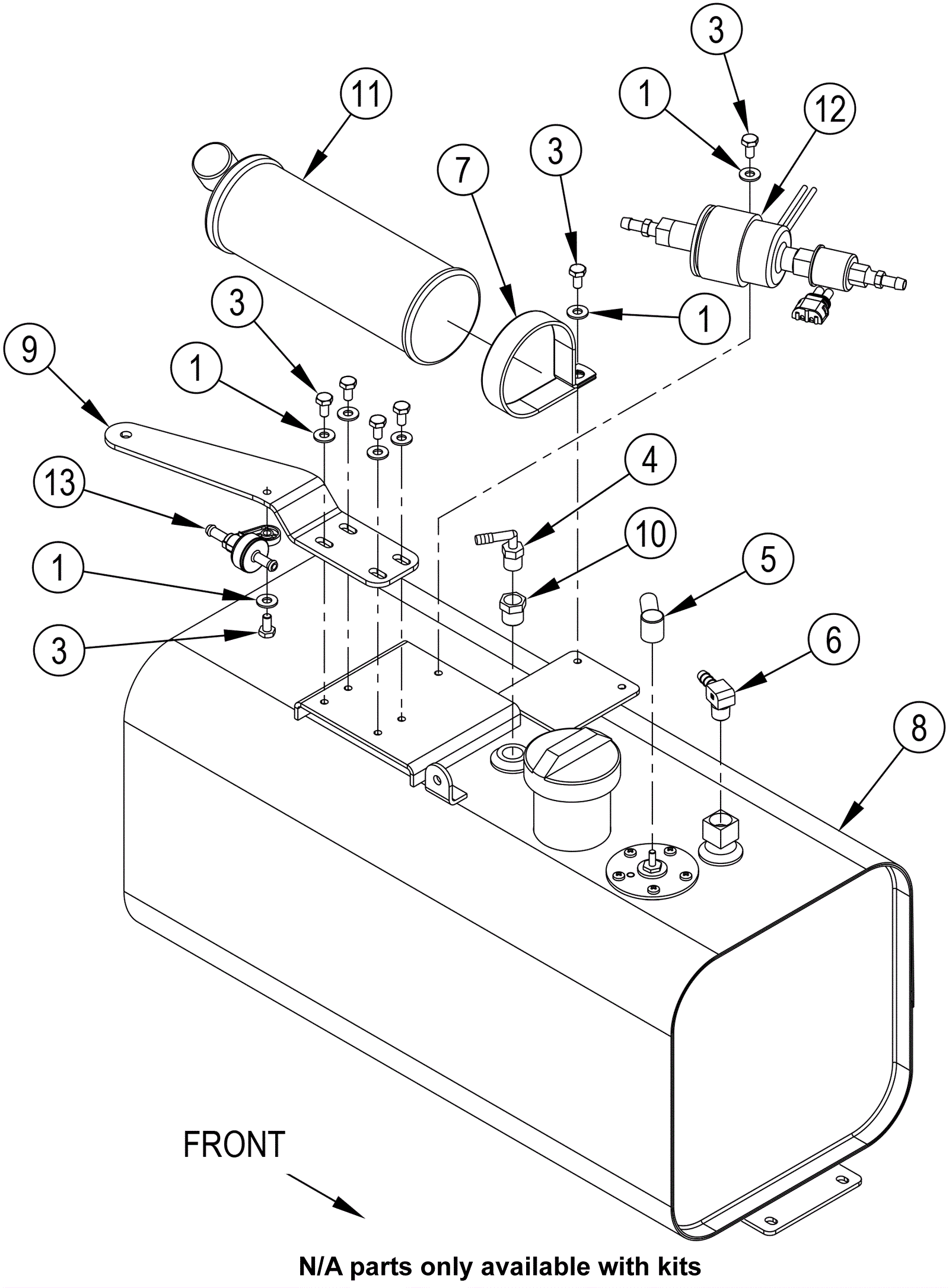

CS7010 Gasoline/Petrol Tank Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0123 Washer 1/4 SAE flat zinc plated $0.99 7 ships same day
3 272-9677 Screw 1/4-20 x 1/2 hex head $12.89 7 usually ships 13-18 days
4 172-1337 90 degree barb 1/4 $27.26 1 usually ships 13-18 days
5 172-2303 Rubber boot $14.41 1 usually ships 1-5 days
6 372-1569 90 degree elbow $17.74 1 usually ships 13-18 days
7 172-9261 P clamp $12.89 1 usually ships 1-5 days
8 372-1571 Fuel tank assembly $1,298.80 1 usually ships 13-18 days
9 372-1572 Tank support bracket $43.48 1 usually ships 13-18 days
10 172-4127 Bushing 3/8 x 1/4 $17.74 1 usually ships 13-18 days
11 372-1573 Evaporative canister $208.89 1 usually ships 13-18 days
12a 372-3195 Fuel pump electronic $368.72 1 usually ships 13-18 days
12b 372-3196 Fuel pump gasket $8.18 2 usually ships 13-18 days
13 372-1574 Petrol check valve assembly $281.00 1 usually ships 13-18 days
N/S 272-7868 Fuel cap $35.75 1 usually ships 1-5 days
N/S 372-3197 Fuel level sender $577.59 1 usually ships 13-18 days
N/S 372-3198 Fuel withdrawl tube $112.55 1 usually ships 13-18 days
