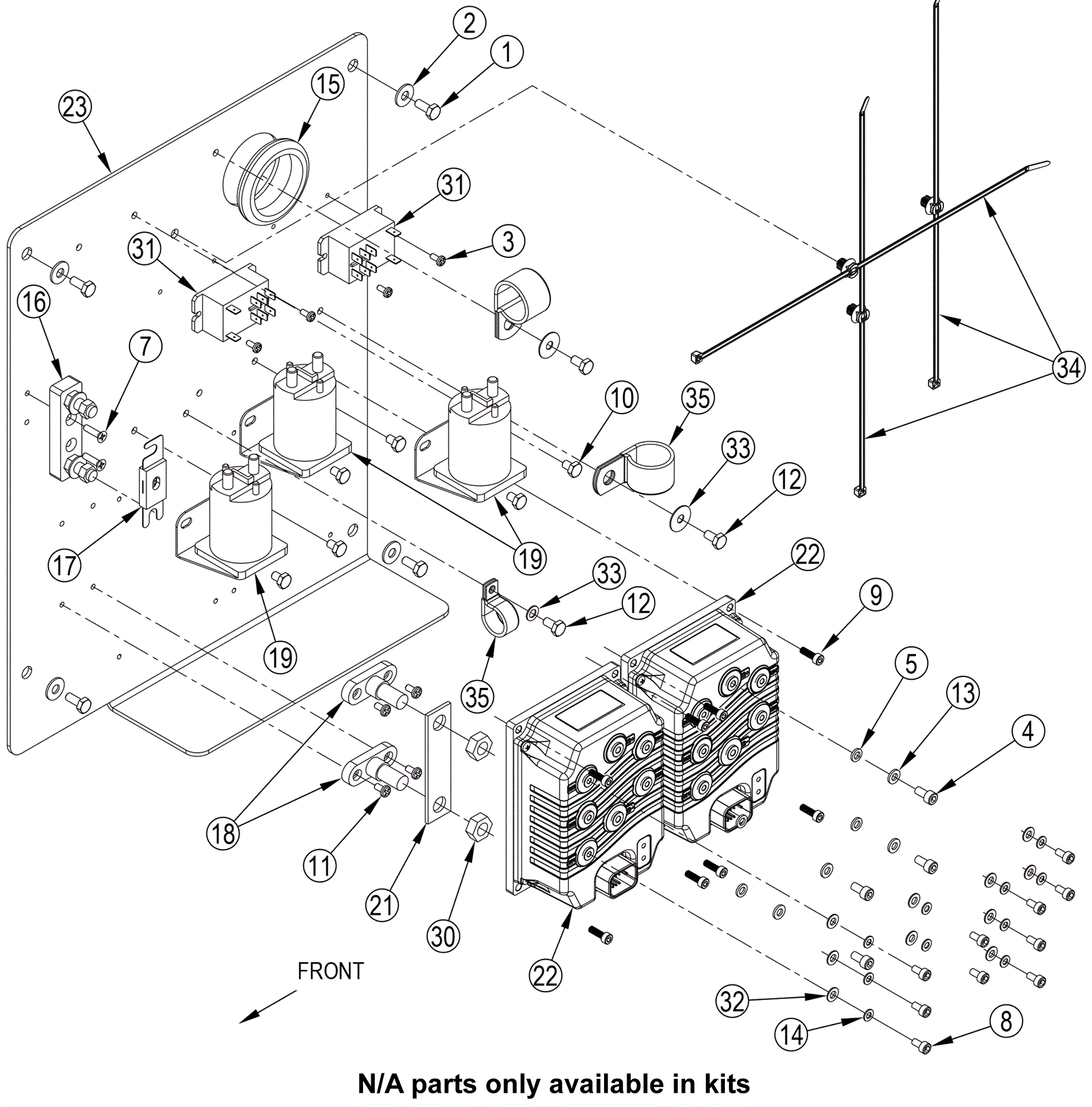

CS7010 Contactor Panel Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel $0.99 4 ships same day
2 999-0016 Washer 1/4 flat plain finish $0.99 4 ships same day
3 999-0363 Screw 8-32 x 3/8 hex head unslotted thread rolling $0.99 4 ships same day
4 172-0768 Screw 6 x 12 socket thread to head $11.35 4 usually ships 13-18 days
5 172-0471 Washer 6.4mm x 11mm x 1.6mm flat $14.18 4 usually ships 1-5 days
7 999-1549 Screw 10-24 x 3/4 flat head phillips stainless steel $0.99 2 usually ships 1-5 days
8 372-3159 Screw M5-0.8 x 10 socket head $6.51 10 usually ships 13-18 days
9 372-3160 Screw M5 x 16 socket head $12.89 8 usually ships 13-18 days
10 999-0360 Screw 1/4-20 x 3/8 hex head thread rolling unslotted $0.99 6 ships same day
11 999-1152 Screw 10-24 x 3/8 pan head phillips thread rolling zinc $0.99 4 ships same day
12 272-9677 Screw 1/4-20 x 1/2 hex head $12.89 3 usually ships 13-18 days
13 372-3161 Washer 6mm $6.51 4 usually ships 13-18 days
14 372-3162 Washer 5mm $6.51 10 usually ships 13-18 days
15 172-4032 Grommet $12.89 1 usually ships 1-5 days
16 272-9750 Fuse block $93.17 1 usually ships 1-5 days
17 472-5774 FUSE 400 AMP $168.42 1 usually ships 13-18 days
18 472-5775 STUD TYPE JUNCTION BOX $67.56 2 usually ships 13-18 days
19 272-8183 36V 200amp contactor $103.32 3 usually ships 13-18 days
21 372-1517 Ground bar $25.75 1 usually ships 13-18 days
22 372-3163 Power module $914.51 2 usually ships 13-18 days
23 372-3164 Electrical panel $116.68 1 usually ships 13-18 days
30 999-0714 Nut 1/2-20 hex jam stainless steel $1.25 2 ships same day
31 172-1779 36V relay SPST $90.50 2 usually ships 13-18 days
32 999-1862 Washer #10 flat SAE stainless steel $0.99 10 ships same day
33 N/A Not available Call for price 3 usually ships 3-26 days
34 472-5079 CABLE TIE-MOUNT $9.70 3 usually ships 13-18 days
35 172-1154 P clamp $14.18 3 usually ships 1-5 days
N/S 372-3165 Cable 6 awg x 4.0 $10.15 1 usually ships 13-18 days
N/S 372-3166 Cable 6 awg x 10.0 $12.27 1 usually ships 13-18 days
N/S 372-3167 Cable 1 awg x 9.00 $50.45 1 usually ships 13-18 days
N/S 372-3168 Cable 6 awg x 8.2 $13.02 1 usually ships 13-18 days
N/S 372-3169 Cable 6 awg x 14.3 $15.61 1 usually ships 13-18 days
