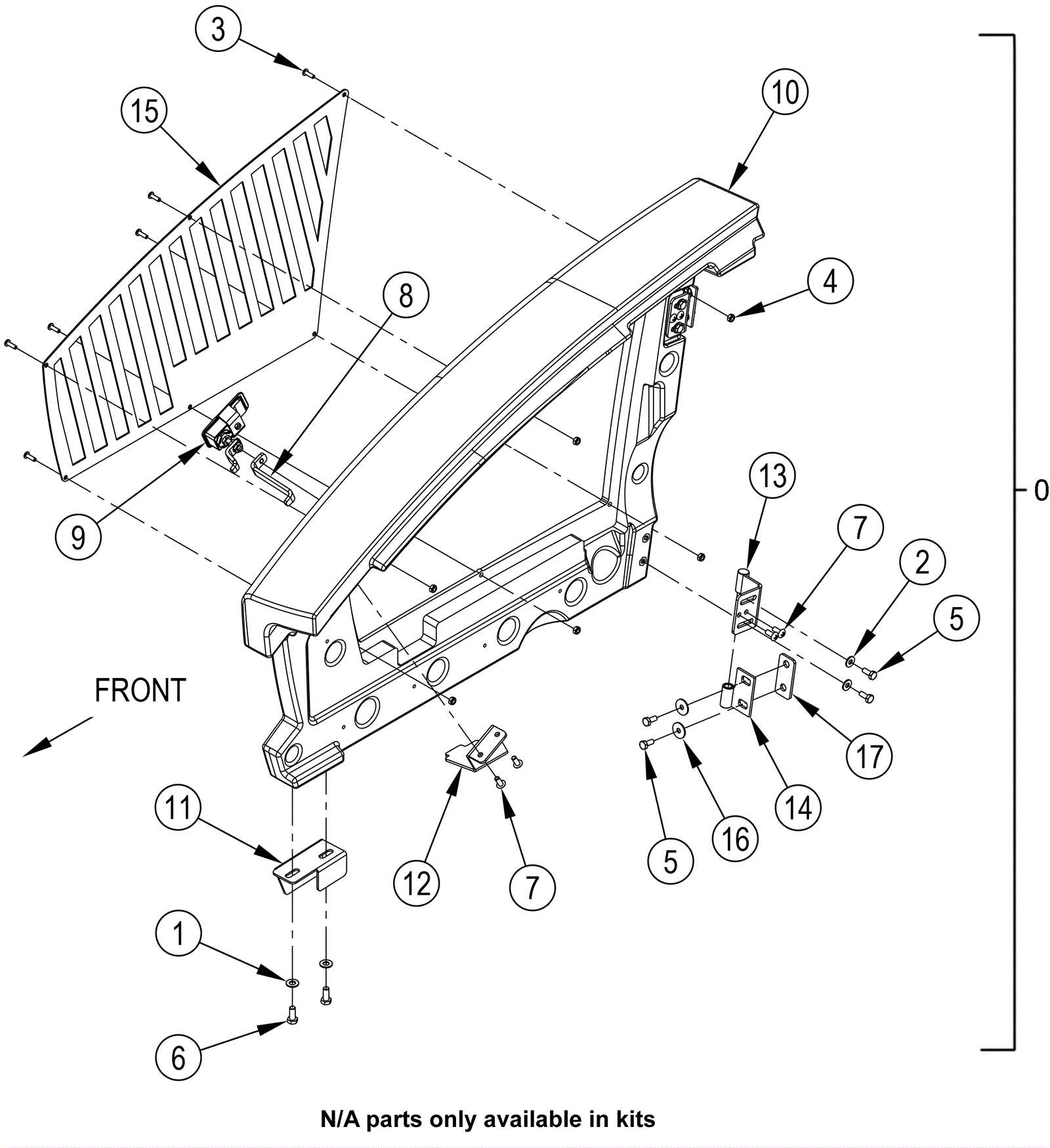

| # | Part | Description | Price | Req | Notes | Availability |
|---|
0a |
372-1399
|
Right hand door |
$902.91
|
1 |
(includes 1-10a, 11-17) |
usually ships 16-41 days |
0b |
372-3095
|
Right hand door assembly |
$946.69
|
1 |
(includes 1-19, 10b, 11-17) |
usually ships 16-41 days |
1 |
999-9004
|
Washer 5/16 SAE flat stainless steel |
$1.69
|
2 |
(included in KIT2) |
ships same day |
2 |
999-0123
|
Washer 1/4 SAE flat zinc plated |
$0.99
|
4 |
(included in KIT1) |
ships same day |
3 |
999-0332
|
Screw 10-24 x 5/8 pan head phillips stainless steel |
$1.54
|
6 |
|
ships same day |
4 |
999-0442
|
Nut 10-24 nylon insert lock stainless steel |
$1.76
|
6 |
|
ships same day |
5 |
999-1032
|
Screw 1/4-20 x 5/8 hex head stainless steel |
$0.99
|
8 |
(included in KIT1) |
ships same day |
6 |
999-1343
|
Screw 5/16-18 x 5/8 hex head stainless steel |
$1.25
|
2 |
(included in KIT2) |
ships same day |
7 |
N/A
|
Not available |
Call for price
|
6 |
(screw 1/4-14 x 5/8 pan head type b) (only available with KIT1 and KIT2) |
usually ships 3-26 days |
8 |
N/A
|
Not available |
Call for price
|
1 |
(latch cam) (only available with KIT2) |
usually ships 3-26 days |
9 |
N/A
|
Not available |
Call for price
|
1 |
(lift and turn latch) (only available with KIT2) |
usually ships 3-26 days |
10a |
372-1428
|
Right hand door |
$380.41
|
1 |
|
usually ships 16-41 days |
10b |
372-3097
|
Right hand fuel cell door |
$380.41
|
1 |
|
usually ships 16-41 days |
11 |
N/A
|
Not available |
Call for price
|
1 |
(door bracket) (only available with KIT2) |
usually ships 3-26 days |
12 |
N/A
|
Not available |
Call for price
|
1 |
(bumper bracket) (only available with KIT2) |
usually ships 3-26 days |
13 |
N/A
|
Not available |
Call for price
|
2 |
(upper hinge weldment) (only available with KIT1) |
usually ships 3-26 days |
14 |
N/A
|
Not available |
Call for price
|
2 |
(lower hinge weldment) (only available with KIT1) |
usually ships 3-26 days |
15 |
372-1429
|
Right hand grille |
$144.42
|
1 |
|
usually ships 16-41 days |
16 |
N/A
|
Not available |
Call for price
|
4 |
(flat washer) (only available with KIT1) |
usually ships 3-26 days |
17 |
N/A
|
Not available |
Call for price
|
1 |
(hinge shim) |
usually ships 3-26 days |
KIT1 |
372-1430
|
Right hand hinge kit |
$164.67
|
1 |
(includes 2, 5, 7, 13-14, 16) |
usually ships 16-41 days |
KIT2 |
372-1415
|
Right hand door latch |
$261.33
|
1 |
(includes 1, 6-9, 11-12) |
usually ships 16-41 days |
