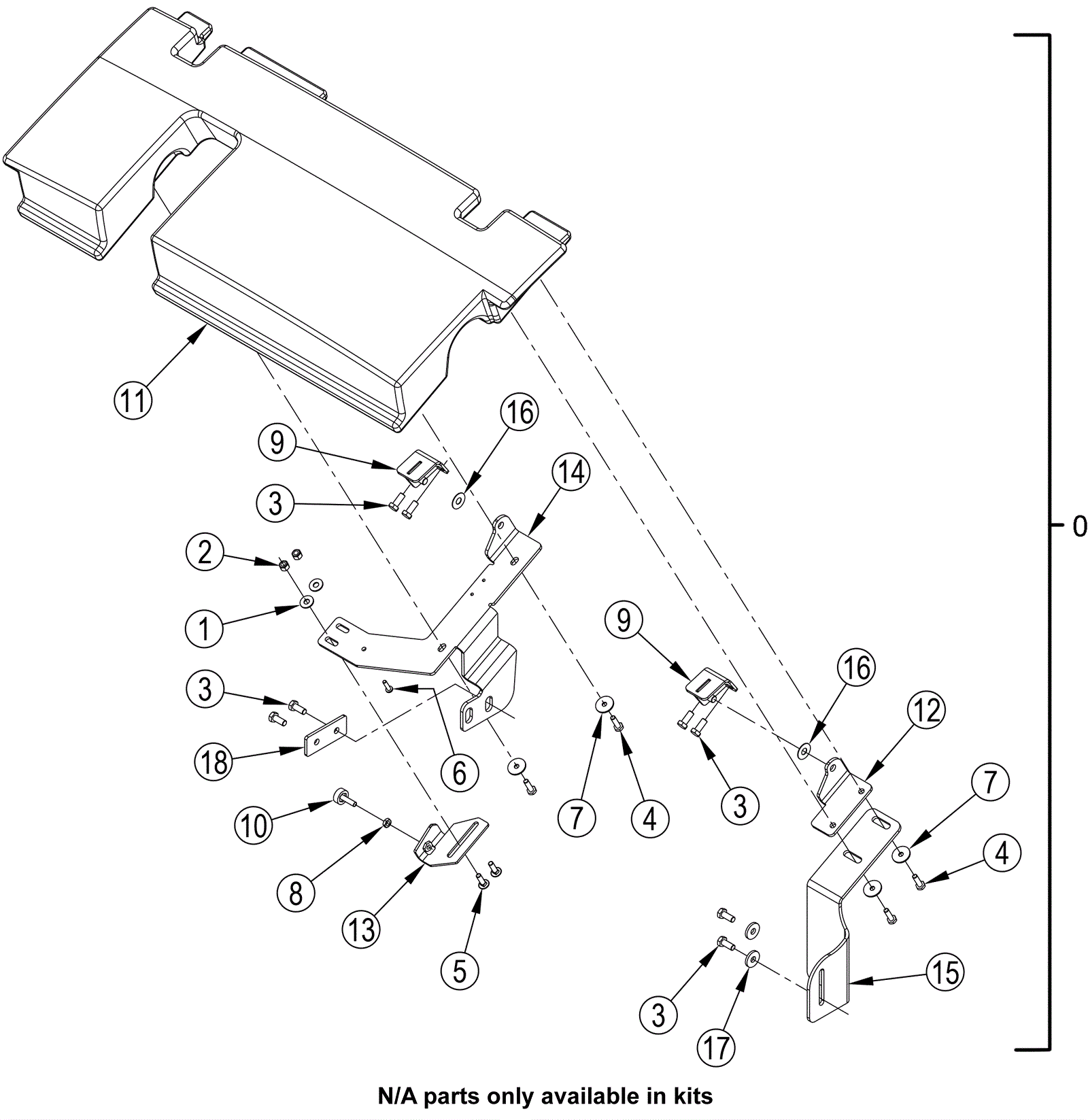

| # | Part | Description | Price | Req | Notes | Availability |
|---|
0 |
372-1397
|
Front engine cover assembly |
$432.49
|
1 |
(includes 1-18) |
usually ships 16-41 days |
1 |
999-6684
|
Washer 1/4 flat stainless steel |
$0.99
|
2 |
(included in KIT1) |
ships same day |
2 |
999-0294
|
Nut 1/4-20 hex nylon lock type NE stainless steel |
$1.18
|
2 |
(included in KIT1) |
ships same day |
3 |
999-1232
|
Screw 5/16-18 x 3/4 hex head stainless steel |
$0.99
|
8 |
(included in KIT1) |
ships same day |
4 |
999-0275
|
Screw 1/4-20 x 3/4 hex washer hd unslotted thread rolling |
$0.99
|
4 |
(included in KIT1) |
ships same day |
5 |
N/A
|
Not available |
Call for price
|
2 |
(screw 1/4-20 x 7/8 carriage) (only available with KIT1) |
usually ships 3-26 days |
6 |
999-1864
|
Screw 10-16 x 3/4 pan head phillips type AB stainless steel |
$0.99
|
1 |
(included in KIT1) |
usually ships 1-5 days |
7 |
N/A
|
Not available |
Call for price
|
4 |
(washer) (only available with KIT1) |
usually ships 3-26 days |
8 |
999-0181
|
Nut 1/4-20 hex jam plain finish |
$0.99
|
1 |
(included in KIT1) |
ships same day |
9 |
N/A
|
Not available |
Call for price
|
2 |
(hinge weldment) (only available with KIT1) |
usually ships 3-26 days |
10 |
N/A
|
Not available |
Call for price
|
1 |
(leg leveler) (only available with KIT1) |
usually ships 3-26 days |
11 |
372-1424
|
Engine cover |
$258.14
|
1 |
|
usually ships 16-41 days |
12 |
N/A
|
Not available |
Call for price
|
1 |
(engine cover bracket) (only available with KIT1) |
usually ships 3-26 days |
13 |
N/A
|
Not available |
Call for price
|
1 |
(latch bracket weldment) (only available with KIT1) |
usually ships 3-26 days |
14 |
N/A
|
Not available |
Call for price
|
1 |
(cover support bracket) (only available with KIT1) |
usually ships 3-26 days |
15 |
N/A
|
Not available |
Call for price
|
1 |
(cover support bracket) (only available with KIT1) |
usually ships 3-26 days |
16 |
999-1530
|
Washer 3/8 flat nylon |
$0.99
|
2 |
(included in KIT1) |
ships same day |
17 |
172-2067
|
Washer 11/32 x 1/8 flat |
$11.99
|
2 |
(included in KIT1) |
usually ships 16-41 days |
18 |
372-3096
|
Bracket retainer plate (OBSOLETE) |
Call for price
|
2 |
(included in KIT1) |
usually ships 16-41 days |
KIT1 |
472-7772
|
FRONT ENGINE COVER HINGE KIT |
$1,163.09
|
1 |
(includes 1-10, 12-18) |
usually ships 16-41 days |
