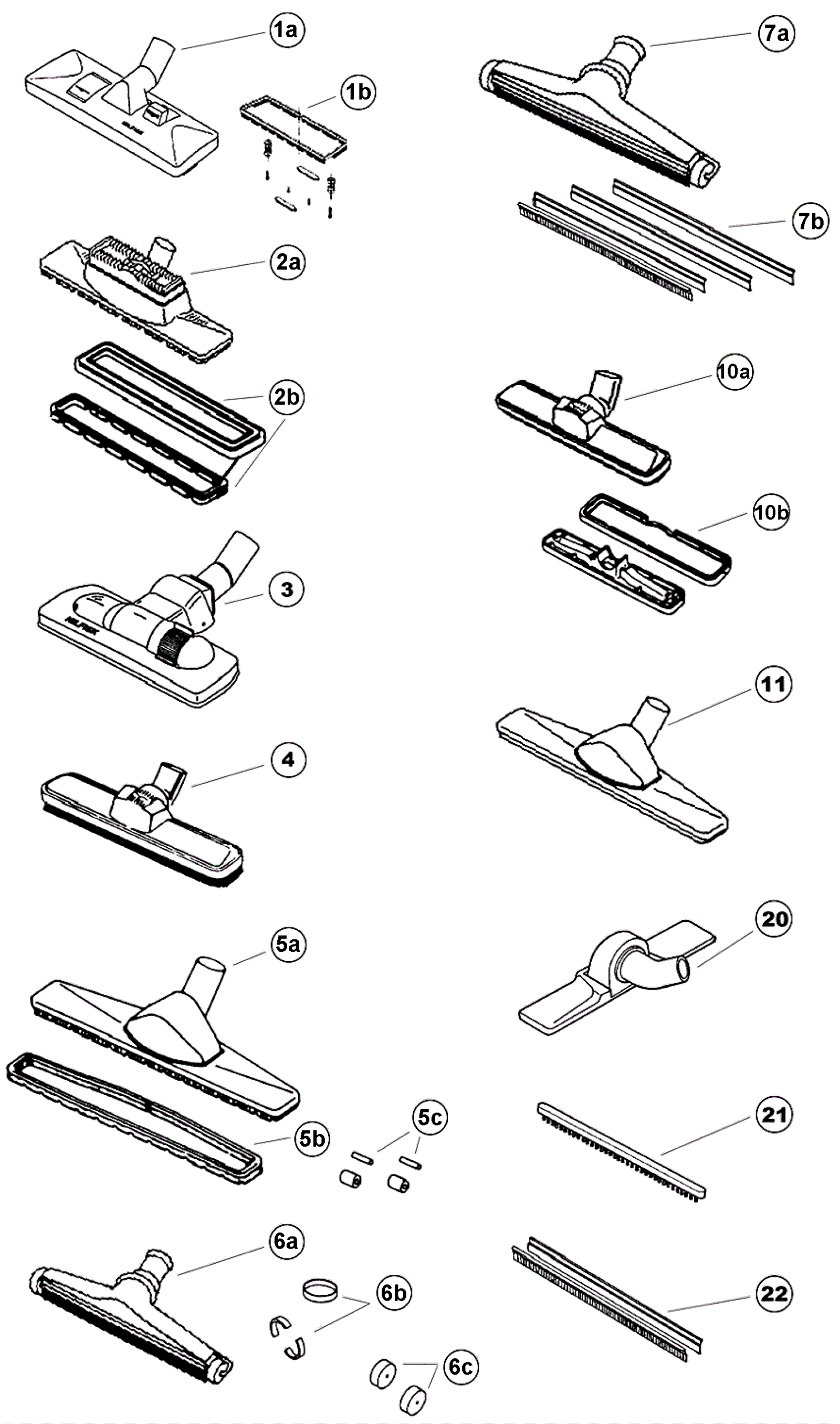

| # | Part | Description |
Req | Notes | Availability |
|---|
1a |
181-0560
|
Combination nozzle assembly |
1 |
|
|
1b |
372-2678
|
Combination nozzle kit (OBSOLETE) |
1 |
|
|
2a |
181-0560
|
Combination nozzle assembly |
1 |
|
|
2b |
372-2680
|
Nozzle brush and bumper (OBSOLETE) |
1 |
|
|
3 |
181-0560
|
Combination nozzle assembly |
1 |
|
|
4 |
372-2681
|
Brush nozzle (OBSOLETE) |
1 |
|
|
5a |
372-2682
|
Brush nozzle (OBSOLETE) |
1 |
|
|
5b |
N/A
|
Not available |
1 |
(nozzle for 372-2682) |
|
5c |
N/A
|
Not available |
1 |
(roller with axle kit) |
|
6a |
N/A
|
Not available |
1 |
(floor nozzle) |
|
6b |
N/A
|
Not available |
1 |
(locking rings) |
|
6c |
372-2683
|
Wheels for nozzle kit |
1 |
|
|
7a |
372-2684
|
Floor nozzle (OBSOLETE) |
1 |
|
|
7b |
372-2685
|
Rubber lips (OBSOLETE) |
1 |
|
|
7c |
372-2686
|
Blades (OBSOLETE) |
1 |
|
|
10a |
372-2687
|
Carpet nozzle (OBSOLETE) |
1 |
|
|
10b |
N/A
|
Not available |
1 |
(bumper and bottom for nozzle) |
|
11 |
372-2688
|
15 inch carpet nozzle (OBSOLETE) |
1 |
|
|
20a |
372-2689
|
1 1/4 inch hard floor nozzle (OBSOLETE) |
1 |
|
|
20b |
372-2690
|
1 1/4 inch soft floor nozzle (OBSOLETE) |
1 |
|
|
21a |
372-2691
|
Hard brush strip (OBSOLETE) |
1 |
|
|
21b |
372-2692
|
Soft brush strip |
1 |
|
|
22 |
372-2693
|
11 inch blades (OBSOLETE) |
1 |
|
|
