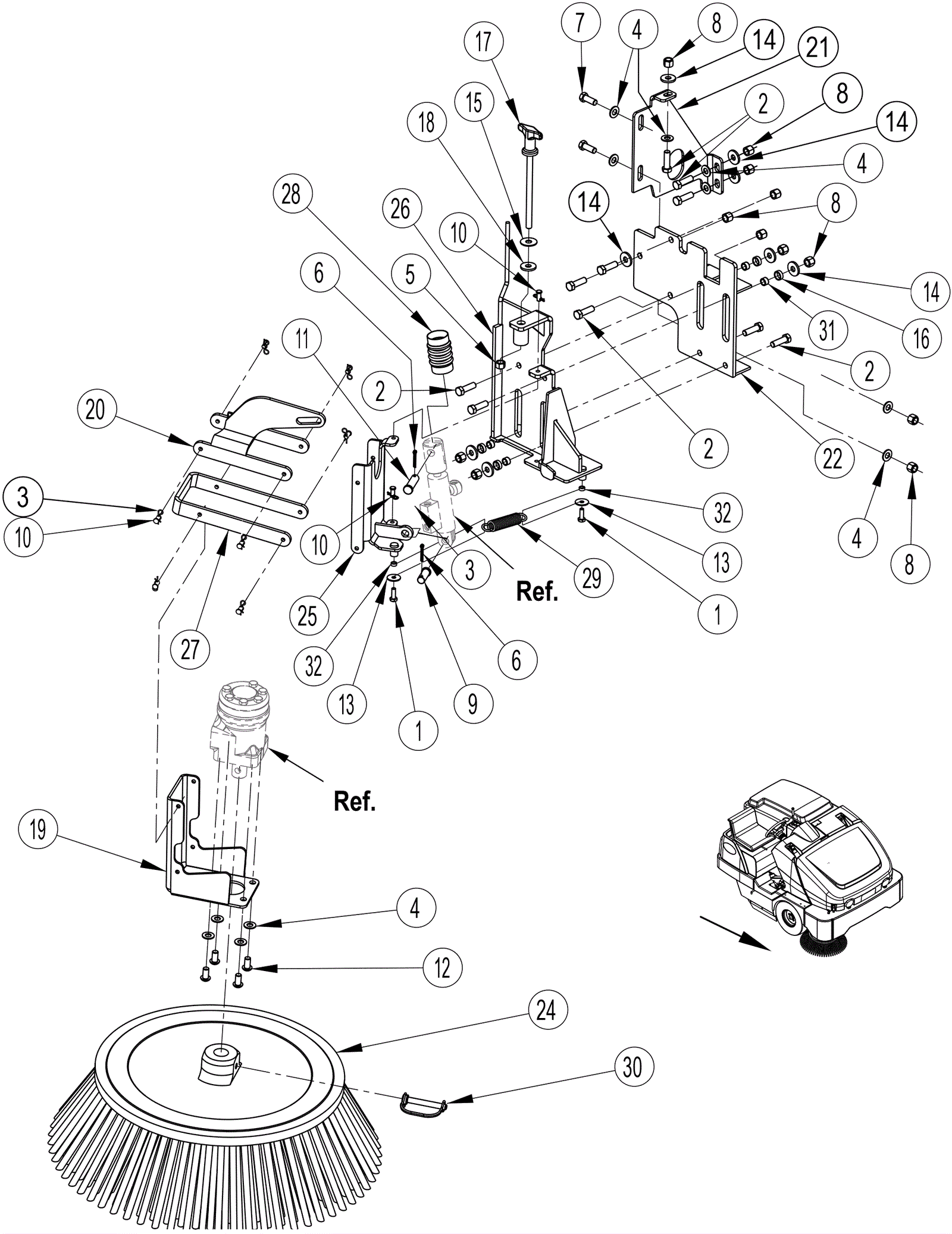

EXTERRA Side Broom Assembly

#PartDescriptionPriceReqNotesAvailability
1 272-1596 Bolt 1/4-20 x 3/4 hex head lock $13.76 2 usually ships 1-5 days
2 999-0649 Bolt 3/8-16 x 1 1/4 hex head stainless steel $7.25 10 ships same day
3 172-4443 Pin .059 x .375 cot hair $12.31 10 usually ships 1-5 days
4 999-0120 Washer 3/8 SAE flat $0.99 11 ships same day
5 999-0635 Nut 3/8-16 hex stainless steel $0.99 1 ships same day
6 997-2503 Cotter pin 1/8 x 1 $0.99 2 ships same day
7 999-0562 Bolt 3/8-16 x 1 hex head stainless steel $1.50 2 ships same day
8 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.99 12 ships same day
9 172-4442 Clevis pin 1/2 x 1-1/4 $12.31 1 usually ships 1-5 days
10 472-3511 PIN CLEVIS .250 X .625 $12.31 10 usually ships 17-28 days
11 272-3868 Clevis pin 1/2 x 1 3/4 inch $12.31 1 usually ships 1-5 days
12 472-3512 SCR SOC HD BUT LOC 3/8-16X.75 $12.31 4 usually ships 17-28 days
13 172-0553 Washer 17/64 x 1/16 flat $10.85 2 usually ships 17-28 days
14 372-1137 Washer $12.31 8 usually ships 1-5 days
15 172-0308 Fiber washer $5.39 1 usually ships 17-28 days
16 172-0139 Bushing $13.76 4 usually ships 1-5 days
17 272-5850 Knob $49.63 1 usually ships 1-5 days
18 272-5851 Rubber washer $15.48 1 usually ships 17-28 days
19 372-2499 Side broom motor mount $127.61 1 usually ships 17-28 days
20 372-2500 Side broom weldment linkage (OBSOLETE) Call for price 1 usually ships 17-28 days
21 372-2501 Bracket $72.63 1 usually ships 17-28 days
22 372-2502 Right hand bracket weldment $238.01 1 usually ships 17-28 days
24 372-2503 Polypropylene side broom $192.01 1 ships same day
25 372-2504 Side broom pivot bracket $238.01 1 usually ships 17-28 days
26 372-2505 Side broom mount bracket $245.37 1 usually ships 17-28 days
27 372-2506 Side broom linkage (OBSOLETE) Call for price 1 usually ships 17-28 days
28 372-2507 Side broom cylinder bellows $42.98 1 usually ships 17-28 days
29 372-2508 Side broom spring $18.38 1 usually ships 17-28 days
30 372-2509 T-lock pin $19.98 1 usually ships 17-28 days
31 372-2510 Bushing $14.91 4 usually ships 17-28 days
32 172-2657 Bushing $34.14 2 usually ships 1-5 days
