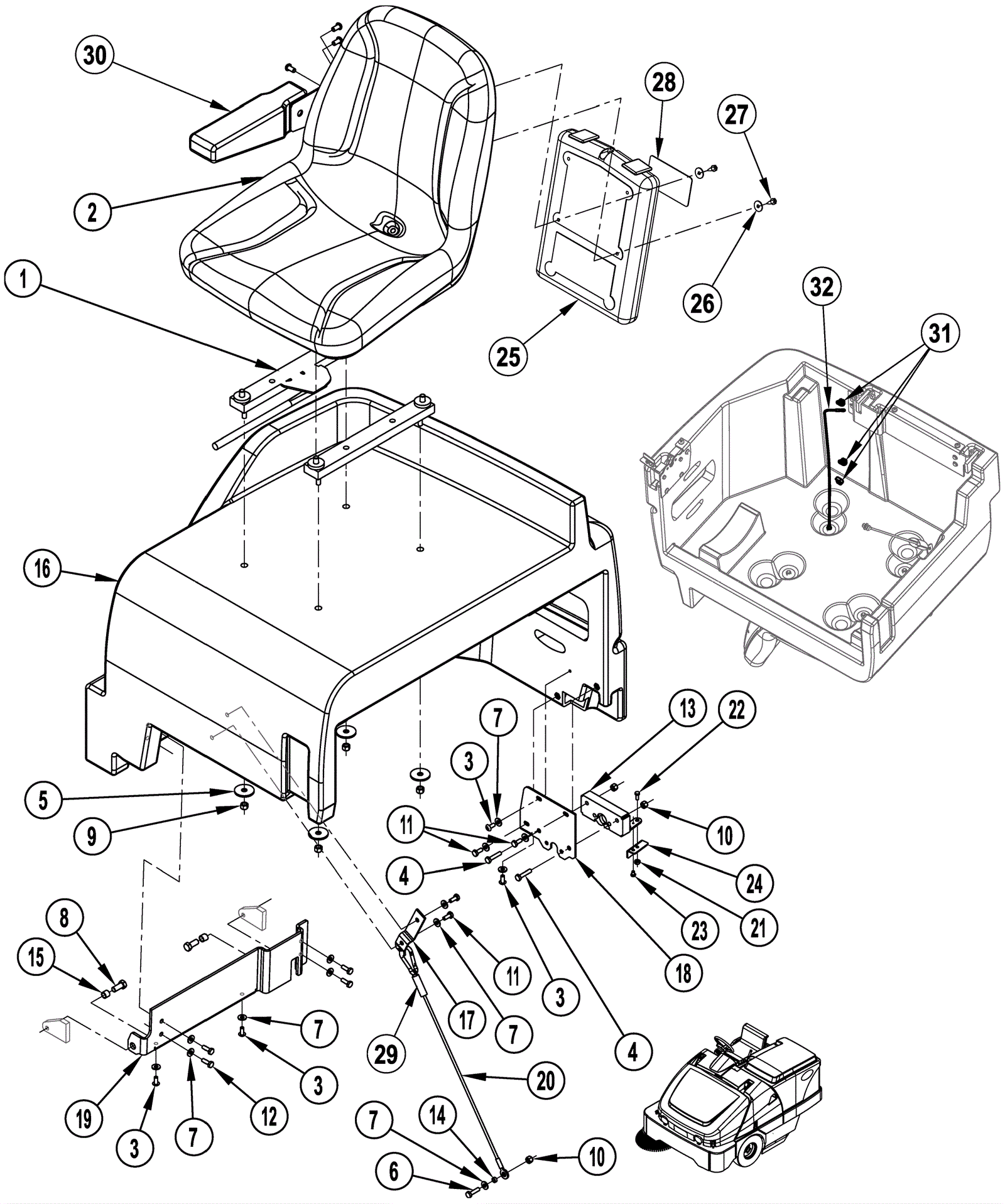

EXTERRA Seat Assembly

#PartDescriptionPriceReqNotesAvailability
1 170-8321 Seat adjuster kit $222.53 1 usually ships 1-5 days
2a 272-7645 Seat (OBSOLETE) $239.03 1 usually ships 1-5 days
2b 472-7888 SEAT KIT $536.05 1 usually ships 17-28 days
3 172-6241 Screw 1/4-14 x 5/8 pan phillips stainless steel $12.31 4 usually ships 1-5 days
4 999-0298 Bolt 1/4-20 x 1 1/4 hex head stainless steel $0.99 2 ships same day
5 272-1513 Washer 13/32 x 1 1/2 x 1/8 flat $10.85 4 usually ships 1-5 days
6 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel $0.99 1 ships same day
7 999-0123 Washer 1/4 SAE flat zinc plated $0.99 13 ships same day
8 999-0812 Screw 3/8-16 x 7/8 hex head grade 5 plain finish $0.99 2 ships same day
9 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 4 ships same day
10 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 3 ships same day
11 272-1465 Screw 1/4-20 X 5/8 hex head lock $12.31 4 usually ships 1-5 days
12 272-1596 Bolt 1/4-20 x 3/4 hex head lock $13.76 4 usually ships 1-5 days
13 272-7623 Right side latch $134.98 1 usually ships 1-5 days
14 172-2657 Bushing $34.14 1 usually ships 1-5 days
15 172-3101 Bushing $35.60 2 usually ships 1-5 days
16a 372-2492 Seat support (grey) $995.83 1 usually ships 17-28 days
16b 372-2493 Seat support (green) (OBSOLETE) Call for price 1 (advance models) usually ships 17-28 days
17 372-2494 Bracket $18.38 1 usually ships 17-28 days
18 372-2495 Bracket seat latch mounting $27.06 1 usually ships 17-28 days
19 572-0988 SEAT PIVOT WELDT $192.01 1 usually ships 17-28 days
20 572-0989 CABLE ASSEMBLY KIT $45.28 1 usually ships 17-28 days
21 999-0442 Nut 10-24 nylon insert lock stainless steel $1.76 1 ships same day
22 999-1369 Screw 10-24 x 1/2 hex head thread cutting stainless steel $0.99 1 ships same day
23 172-4627 Screw 10-24 x 1/4 hex washer head thread form $12.31 1 usually ships 1-5 days
24 372-2496 Handle latch $21.85 1 usually ships 17-28 days
25 472-6624 BOX WATERPROOF SUNBELT $88.99 1 (advance models) usually ships 17-28 days
26 172-0553 Washer 17/64 x 1/16 flat $10.85 2 (advance models) usually ships 17-28 days
27 172-4338 Screw 1/4-14 x .75 hex tek $10.52 2 (advance models) usually ships 1-5 days
28 472-6632 DECAL WARNING SUNBELT $38.29 1 (advance models) usually ships 17-28 days
29 372-2283 Shrink tube 3/4 x 2 1/2 $23.01 1 usually ships 17-28 days
30 372-2497 Arm rest $107.65 1 usually ships 17-28 days
31 272-8754 Conduit clip $12.31 3 usually ships 1-5 days
32 372-2498 Wire assembly $12.98 1 usually ships 17-28 days
