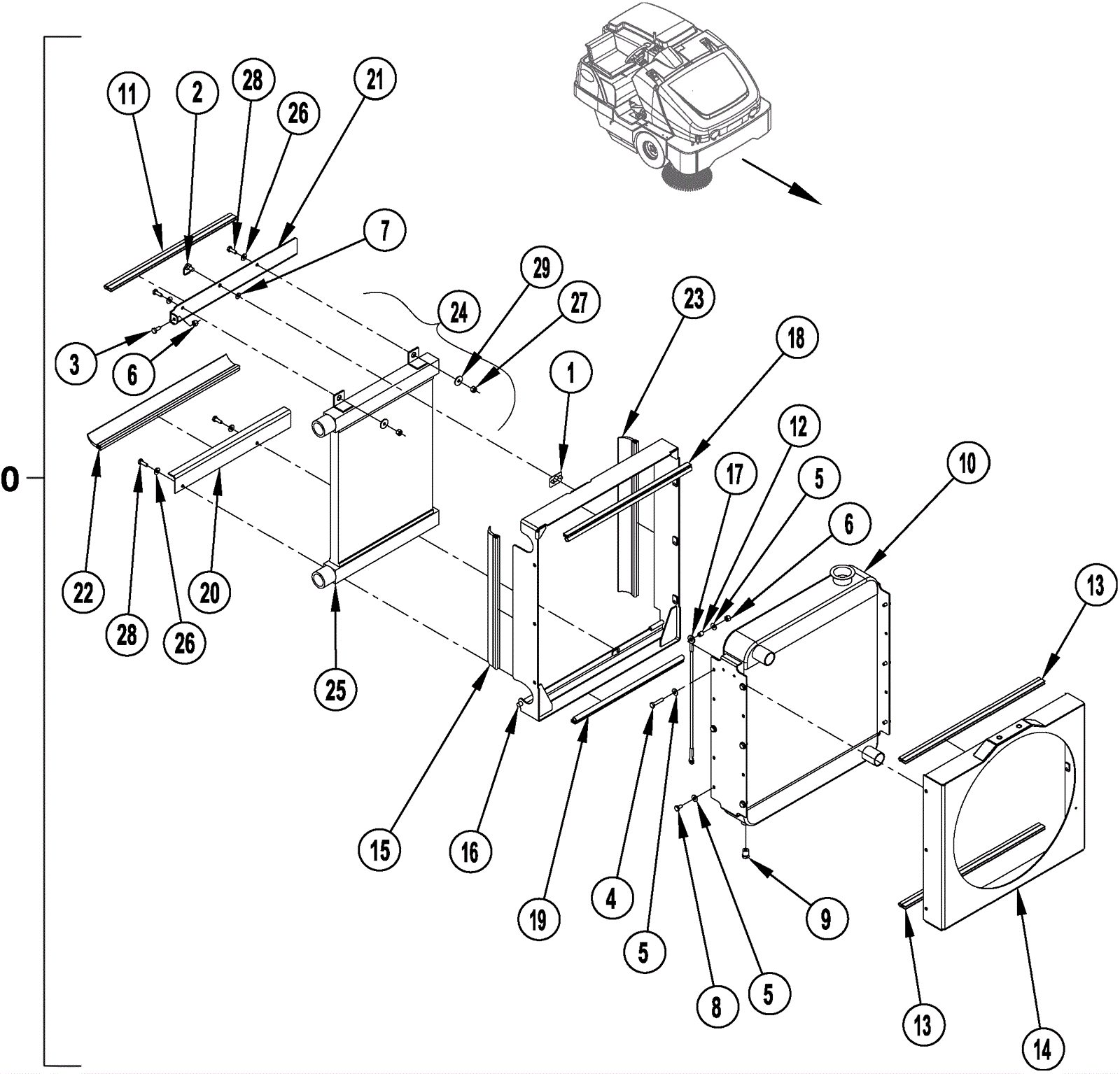

EXTERRA Radiator Assembly

#PartDescriptionPriceReqNotesAvailability
0a N/A Not available Call for price 1 (includes 1-24) (radiator assembly for GM engine models) usually ships 3-26 days
0b N/A Not available Call for price 1 (includes 1-24) (radiator assembly for Kubota engine models) usually ships 3-26 days
1 272-5979 U clip screw $35.75 1 usually ships 1-5 days
2 272-5980 Fastener $32.24 1 usually ships 1-5 days
3 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel $0.99 1 ships same day
4 999-0298 Bolt 1/4-20 x 1 1/4 hex head stainless steel $0.99 1 ships same day
5 999-0123 Washer 1/4 SAE flat zinc plated $0.99 13 ships same day
6 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 2 ships same day
7 272-5978 Washer $12.89 1 usually ships 1-5 days
8 272-9727 Screw 1/4-20 x 1/2 hex head lock $12.89 11 usually ships 1-5 days
9 372-1564 Pipe plug $12.89 1 usually ships 13-18 days
10a 272-7992 Radiator $1,763.86 1 usually ships 13-18 days
10b 272-7993 Radiator cap $85.44 1 (standard) usually ships 1-5 days
10c 472-6419 SMALL RADIATOR CAP 13 PSI $40.44 1 usually ships 13-18 days
11 372-2479 Gasket $94.68 1 usually ships 13-18 days
12 172-0400 Bushing $17.83 1 usually ships 1-5 days
13 472-9102 GASKET $34.23 2 usually ships 13-18 days
14a 372-2480 Radiator shroud (OBSOLETE) Call for price 1 (GM models) usually ships 13-18 days
14b 372-2481 Radiator shroud $585.32 1 (Kubota models) usually ships 13-18 days
15 372-2482 Radiator gasket $103.32 1 usually ships 13-18 days
16 372-2483 Cooler weldment shroud $554.94 1 usually ships 13-18 days
17 372-2484 Cable assembly $10.45 1 usually ships 13-18 days
18 372-2485 Trim seal $118.76 1 usually ships 13-18 days
19 372-2486 Trim seal $118.76 1 usually ships 13-18 days
20 372-2487 Bracket $131.95 1 usually ships 13-18 days
21 372-2488 Bracket $86.94 1 usually ships 13-18 days
22 372-2489 Radiator gasket $107.84 1 usually ships 13-18 days
23 372-2490 Radiator gasket $106.34 1 usually ships 13-18 days
24 372-2491 Oil cooler assembly $1,923.82 1 (includes 25-29) usually ships 13-18 days
25 272-7942 Oil cooler $994.48 1 usually ships 1-5 days
26 999-0123 Washer 1/4 SAE flat zinc plated $0.99 4 ships same day
27 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 2 ships same day
28 272-1596 Bolt 1/4-20 x 3/4 hex head lock $14.41 4 usually ships 1-5 days
29 172-0553 Washer 17/64 x 1/16 flat $11.35 2 usually ships 13-18 days
