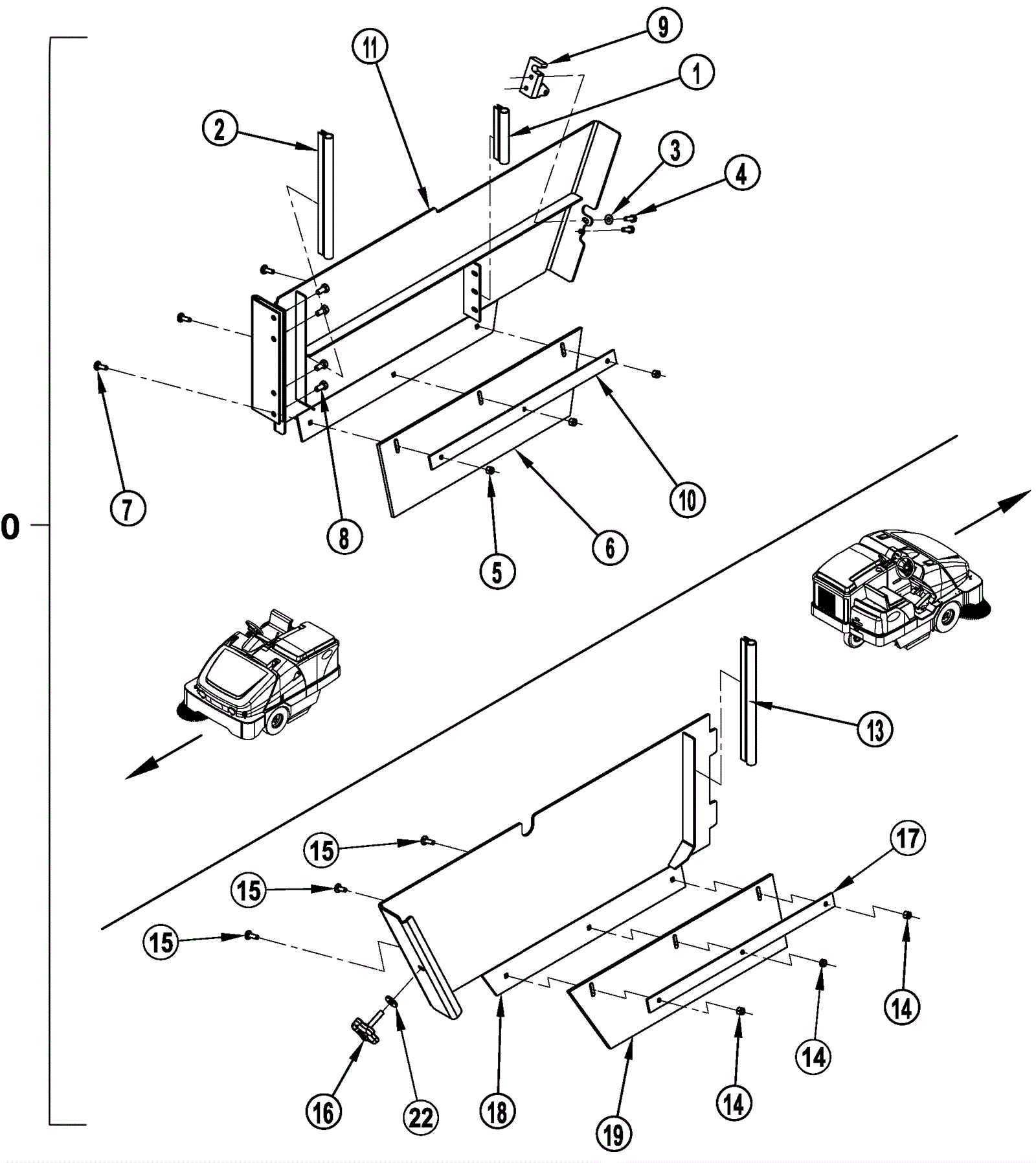

EXTERRA Main Broom Assembly 2

#PartDescriptionPriceReqNotesAvailability
0a 372-2467 Right broom door assembly $528.67 1 (includes 1-11) usually ships 17-28 days
0b 372-2466 Left broom door assembly $521.29 1 (includes 13-19) usually ships 17-28 days
1 372-2472 Gasket $37.05 1 usually ships 17-28 days
2 372-2476 Gasket $38.62 1 usually ships 17-28 days
3 999-0123 Washer 1/4 SAE flat zinc plated $0.99 1 ships same day
4 272-1596 Bolt 1/4-20 x 3/4 hex head lock $13.76 2 usually ships 1-5 days
5 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 3 ships same day
6 372-2478 Door flap $27.64 1 ships same day
7 272-3545 Screw 1/4-20 x 8/9 carriage $12.31 3 usually ships 1-5 days
8 272-9785 Screw 5/16-18 x 5/8 hex head lock $12.31 4 usually ships 17-28 days
9 272-9692 Right hand latch $72.63 1 usually ships 17-28 days
10 372-2477 Door flap strap $32.69 1 usually ships 17-28 days
11 472-4138 DOOR-BROOM RT WELDT $436.79 1 usually ships 17-28 days
13 372-2476 Gasket $38.62 1 usually ships 17-28 days
14 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 3 ships same day
15 272-3545 Screw 1/4-20 x 8/9 carriage $12.31 3 usually ships 1-5 days
16 272-2260 Knob 5/16 $18.38 1 usually ships 1-5 days
17 372-2477 Door flap strap $32.69 1 usually ships 17-28 days
18 472-4137 DOOR-BROOM LT WELDT $314.39 1 usually ships 17-28 days
19 372-2478 Door flap $27.64 1 ships same day
22 172-2067 Washer 11/32 x 1/8 flat $12.31 1 usually ships 17-28 days
