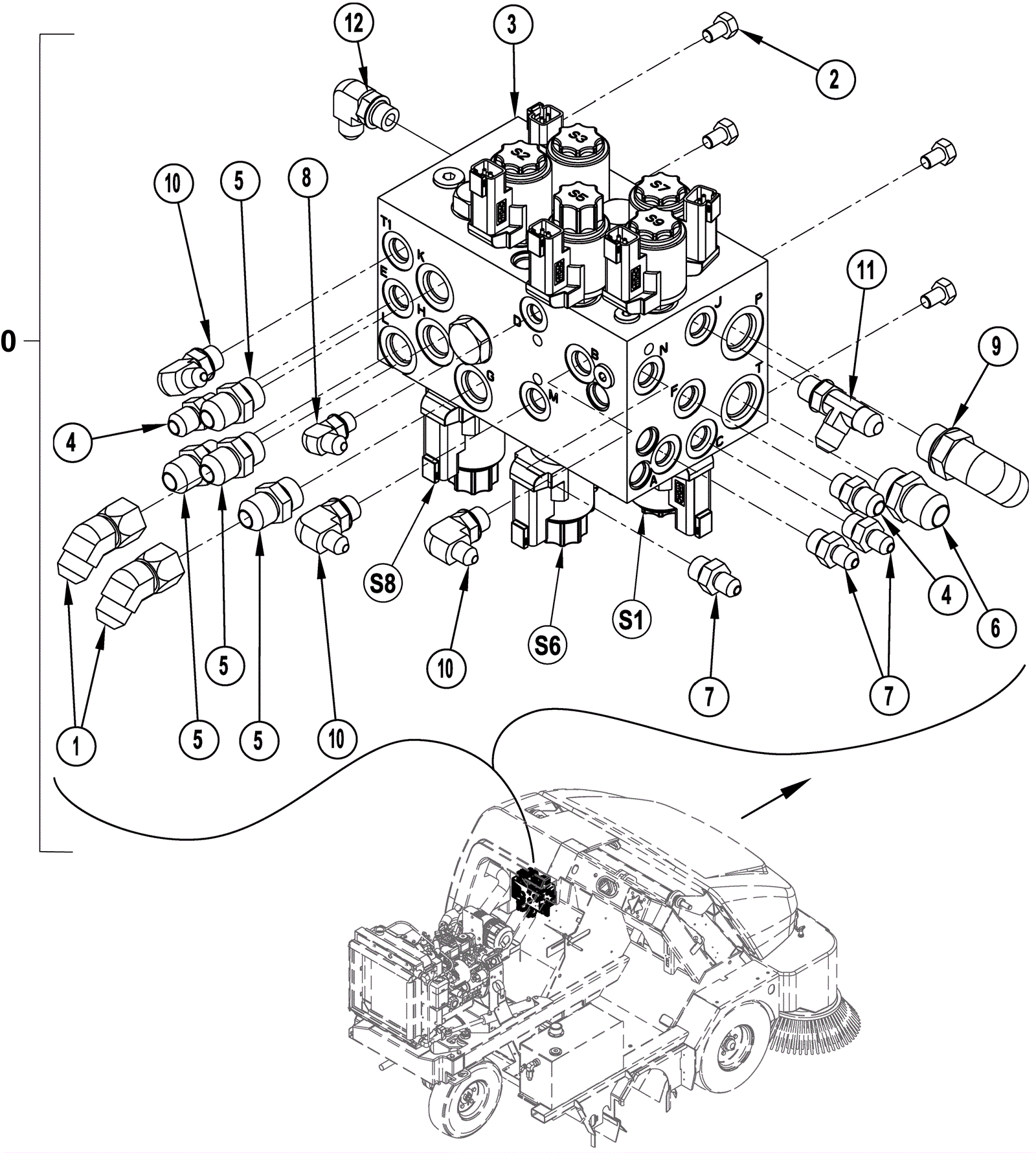

EXTERRA Hydraulic Manifold Assembly

#PartDescriptionPriceReqNotesAvailability
0 372-2356 Manifold Assembly $4,593.51 1 (includes 1-10) usually ships 17-28 days
1 272-7949 45 degree elbow with nut $37.05 2 usually ships 1-5 days
2 272-1810 Screw 5/16-18 x 1/2 hex lock $13.76 4 usually ships 1-5 days
3 372-2408 Hydraulic manifold $4,899.80 1 usually ships 17-28 days
4 272-3170 Connector $13.17 2 usually ships 17-28 days
5 272-3186 Connector $11.57 4 usually ships 17-28 days
6 372-2409 O-ring connector $23.01 1 usually ships 17-28 days
7 272-3163 Connector $33.43 3 usually ships 1-5 days
8 272-2983 90 degree elbow $34.87 1 usually ships 1-5 days
9 372-2410 O-ring elbow $52.67 1 usually ships 17-28 days
10 272-3151 90 degree elbow $58.62 3 usually ships 1-5 days
11 272-3155 Run o-ring tee $34.14 1 usually ships 1-5 days
12 272-3188 90 degree elbow $36.32 1 usually ships 1-5 days
N/S 472-6302 CARTRIDGE $123.12 (for S1 and S2) usually ships 17-28 days
N/S 472-6303 CARTRIDGE $229.88 (for S3 and S7) usually ships 17-28 days
N/S 472-6301 CARTRIDGE $176.52 (for S5 and S9) usually ships 17-28 days
N/S 472-6379 CARTRIDGE $183.90 (for S6) usually ships 17-28 days
N/S 272-3854 Cartridge $192.01 (for S8) usually ships 17-28 days
N/S 372-2411 Flow control cartridge $152.05 usually ships 17-28 days
N/S 372-2412 Flow divider cartridge $284.00 usually ships 17-28 days
N/S 372-2413 Seal kit $108.94 1 usually ships 17-28 days
N/S 272-7957 Relief valve cartridge $275.91 usually ships 1-5 days
N/S 372-2414 Piloted 3/2 directional valve cartridge $306.30 usually ships 17-28 days
N/S 272-3856 Replacement check valve $57.16 usually ships 1-5 days
N/S 372-2415 PO check valve cartridge $169.11 usually ships 17-28 days
N/S 372-2416 Orifice $37.05 usually ships 17-28 days
N/S 372-2417 Orifice $60.06 usually ships 17-28 days
N/S 372-2418 Solenoid coil with connector $88.99 (for S1-S7 and S9) usually ships 17-28 days
N/S 372-2419 Solenoid coil with connector $104.61 (for S8) usually ships 17-28 days
N/S 272-7962 Seal kit $19.98 (for S1, S2, S4-S6, and S9) usually ships 17-28 days
N/S 472-6294 SEAL KIT $51.21 (for S3 and S7) usually ships 17-28 days
N/S 372-2420 PO check valve seal kit $69.01 usually ships 17-28 days
N/S 372-2421 Cavity plug $41.54 usually ships 17-28 days
N/S 272-3856 Replacement check valve $57.16 usually ships 1-5 days
N/S 272-7957 Relief valve cartridge $275.91 usually ships 1-5 days
