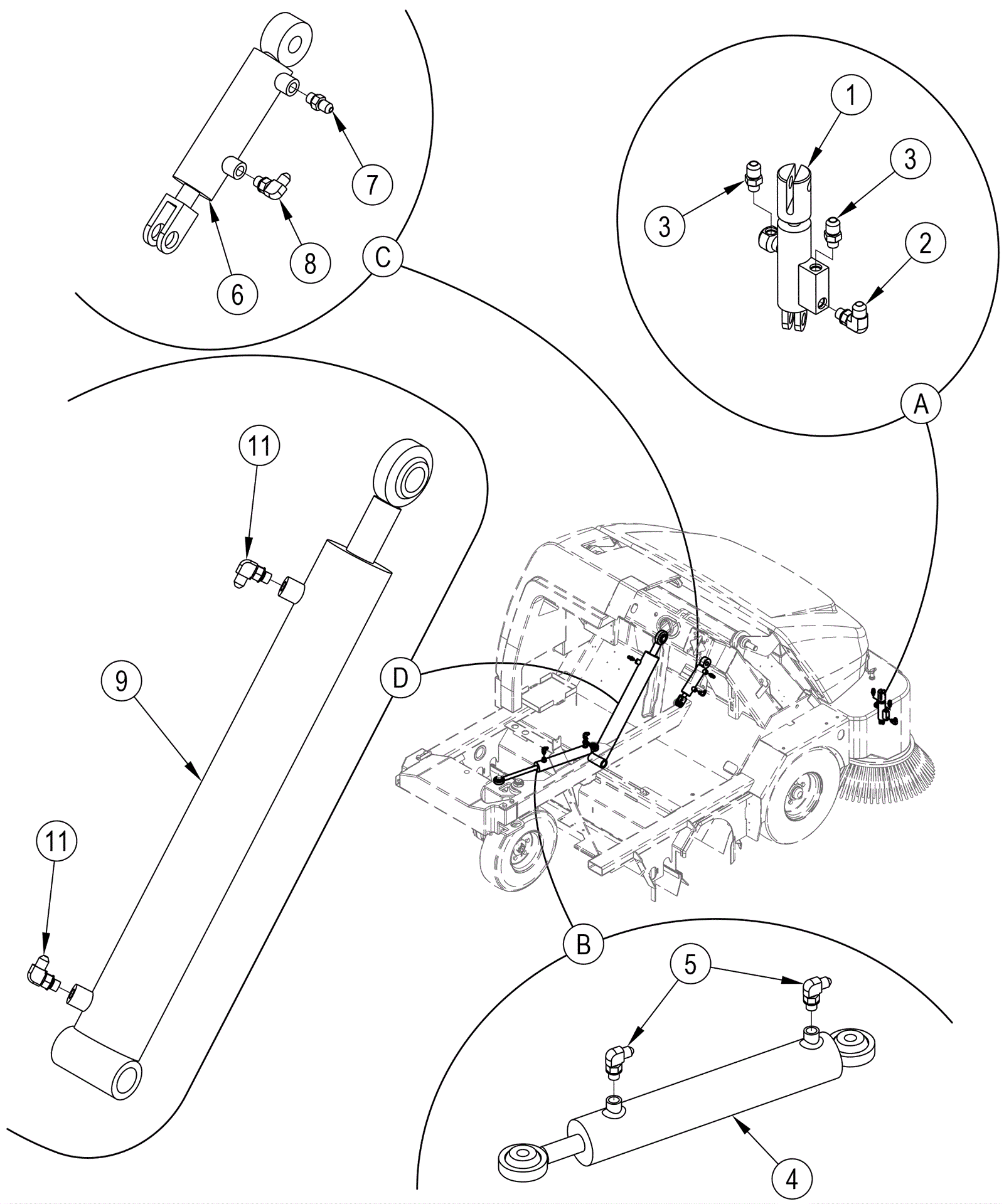

| # | Part | Description | Price | Req | Notes | Availability |
|---|
1 |
372-2402
|
Right hand side broom cylinder |
$490.19
|
1 |
|
usually ships 17-28 days |
2 |
372-2403
|
O-ring elbow |
$42.98
|
1 |
|
usually ships 17-28 days |
3 |
372-2404
|
O-ring connector |
$13.76
|
2 |
|
usually ships 17-28 days |
4 |
372-2405
|
Steering cylinder |
$490.19
|
1 |
|
usually ships 17-28 days |
5 |
272-2983
|
90 degree elbow |
$34.87
|
2 |
|
usually ships 1-5 days |
6 |
372-2406
|
Hopper door cylinder |
$360.40
|
1 |
|
usually ships 17-28 days |
7 |
272-3192
|
Connector |
$13.17
|
1 |
|
usually ships 1-5 days |
8 |
272-2983
|
90 degree elbow |
$34.87
|
1 |
|
usually ships 1-5 days |
9 |
372-2407
|
Hopper lift hydraulic cylinder |
$727.47
|
1 |
|
usually ships 17-28 days |
11 |
272-2983
|
90 degree elbow |
$34.87
|
1 |
|
usually ships 1-5 days |
N/S |
472-4267
|
SEAL KIT |
$100.74
|
1 |
(included in KITA) |
usually ships 17-28 days |
N/S |
472-7384
|
SEAL KIT |
$108.94
|
1 |
(included in KITB) |
usually ships 17-28 days |
N/S |
472-4261
|
SEAL KIT FOR 7-17-05010 |
$88.63
|
1 |
(included in KITC) |
usually ships 17-28 days |
N/S |
472-7385
|
SEAL KIT |
$87.54
|
1 |
(included in KITD) |
usually ships 17-28 days |
KITA |
372-2354
|
Right hand broom cylinder assembly |
$536.05
|
1 |
(includes 1-3, 472-4267) |
usually ships 17-28 days |
KITB |
372-2357
|
Steering cylinder assembly |
$643.69
|
1 |
(includes 4-5, 472-7384) |
usually ships 17-28 days |
KITC |
372-2358
|
Hopper door cylinder assembly |
$314.39
|
1 |
(includes 6-8, 472-4261) |
usually ships 17-28 days |
KITD |
372-2359
|
Hopper lift cylinder assembly |
$750.46
|
1 |
(includes 9-11, 472-7385) |
usually ships 17-28 days |
