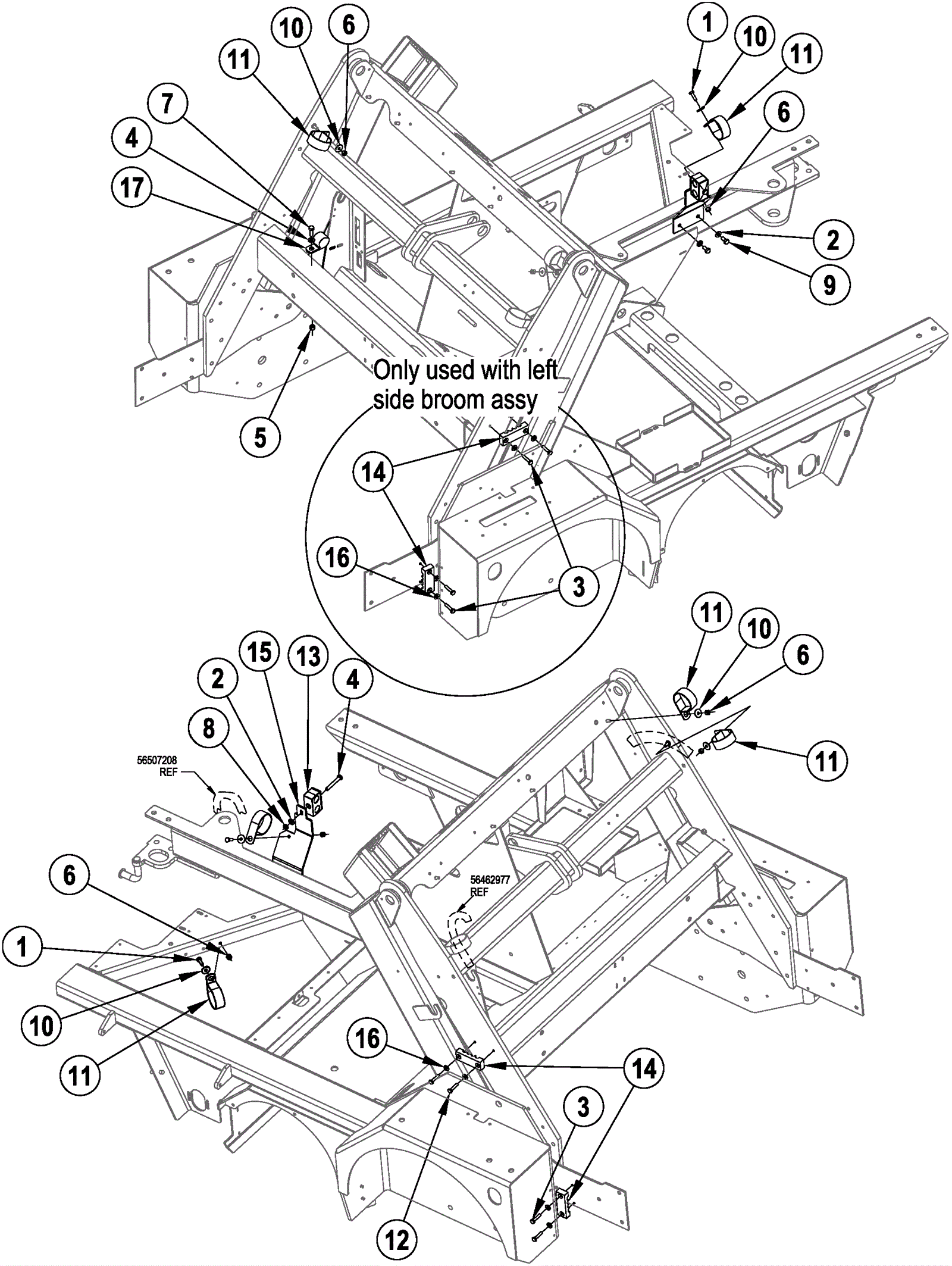

EXTERRA Hydraulic Mounting Assembly

#PartDescriptionPriceReqNotesAvailability
1 999-0822 Screw 1/4-20 x 7/8 hex head plain finish $0.99 2 ships same day
2 999-0024 Washer 5/16 flat stainless steel $1.34 4 ships same day
3 999-0298 Bolt 1/4-20 x 1 1/4 hex head stainless steel $0.99 4 (qty 8 only if equipped with left hand broom) ships same day
4 172-4318 Screw 5/16-18 x 2.25 hex $12.31 1 usually ships 1-5 days
5 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 1 ships same day
6 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 5 ships same day
7 999-0031 Bolt 5/16-18 x 1 hex head grade 5 zinc plated $0.99 1 ships same day
8 999-0211 Nut 5/16-18 hex nylon insert lock zinc plated $0.99 1 ships same day
9 272-9785 Screw 5/16-18 x 5/8 hex head lock $12.31 2 usually ships 17-28 days
10 172-0553 Washer 17/64 x 1/16 flat $10.85 6 usually ships 17-28 days
11 272-2110 P clamp $5.39 5 usually ships 1-5 days
12 372-2398 Screw 1/4-20 x 1 1/2 $12.31 2 usually ships 17-28 days
13 372-2399 Hydraulic hose clamp $18.38 1 usually ships 17-28 days
14 372-2400 Hydraulic hose clamp $15.48 1 (qty 2 only if equipped with left hand broom) usually ships 17-28 days
15 372-2401 Hose clamp bracket $37.05 1 usually ships 17-28 days
16 999-0123 Washer 1/4 SAE flat zinc plated $0.99 4 (qty 8 only if equipped with left hand broom) ships same day
17 172-9261 P clamp $12.31 1 usually ships 1-5 days
18 999-0830 Screw 1/4-20 x 1 hex head plain finish $0.99 1 ships same day
