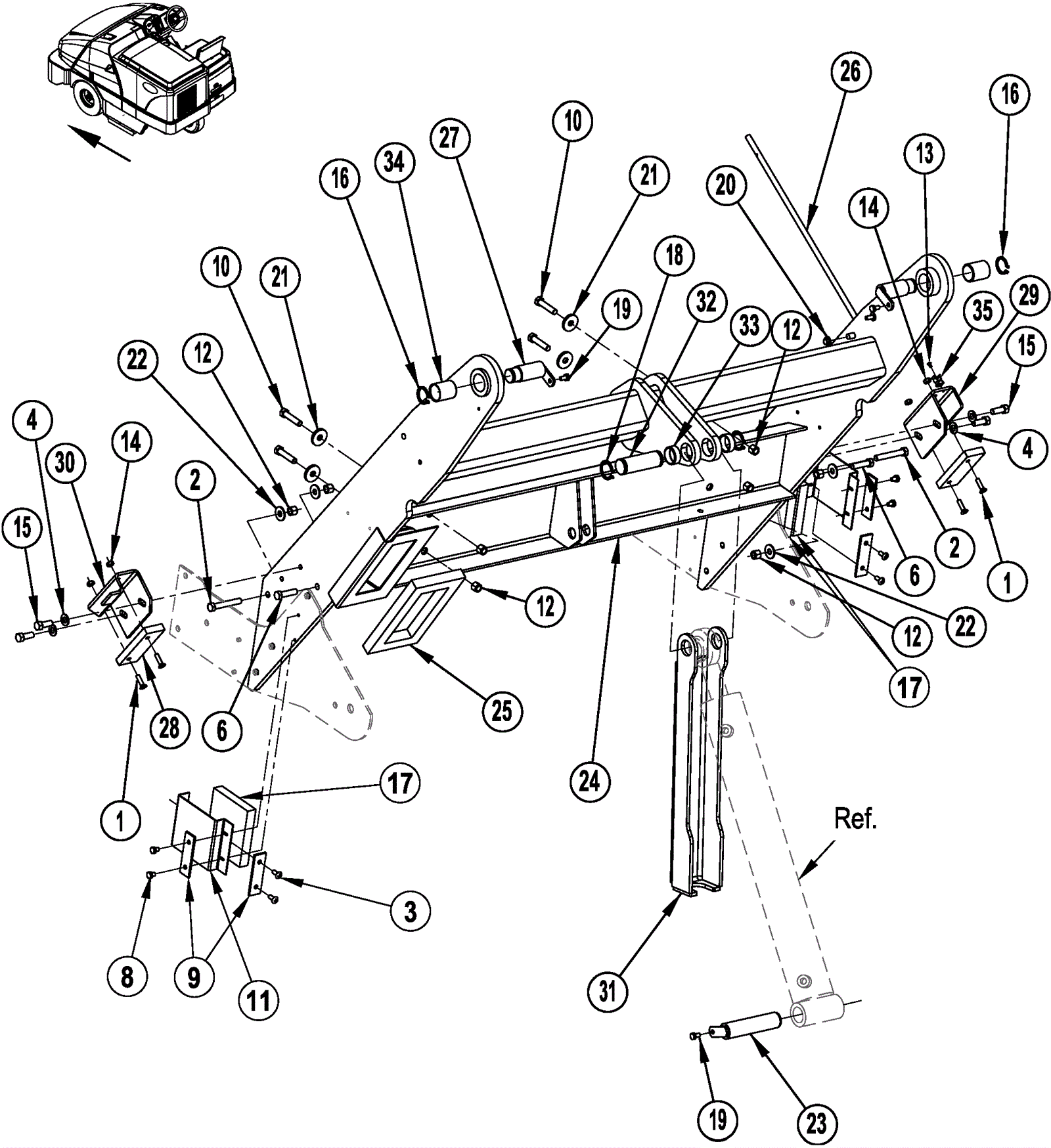

EXTERRA Hopper Assembly 3

#PartDescriptionPriceReqNotesAvailability
1 472-3447 SCR FLT SOC 1/4-20 X 1.00 $12.89 4 usually ships 13-18 days
2 999-0390 Bolt 3/8-16 x 2 1/2 hex hd grade 5 zinc plated $1.19 2 ships same day
3 172-6241 Screw 1/4-14 x 5/8 pan phillips stainless steel $12.89 4 usually ships 1-5 days
4 999-0120 Washer 3/8 SAE flat $0.99 4 ships same day
6 999-0649 Bolt 3/8-16 x 1 1/4 hex head stainless steel $1.21 2 ships same day
8 999-0360 Screw 1/4-20 x 3/8 hex head thread rolling unslotted $0.99 4 ships same day
9 372-2325 Front tire rear flap strap $12.89 4 usually ships 13-18 days
10 999-0542 Bolt 3/8-16 x 1 3/4 hex head grade 5 zinc plated $0.99 4 ships same day
11 372-2326 Hopper side flap $12.89 2 usually ships 13-18 days
12 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.99 8 ships same day
14 999-0152 Nut 1/4-20 nylon insert lock zinc plated $0.99 4 ships same day
15 272-6209 Screw 3/8-16 x 1 hex head $12.89 4 usually ships 1-5 days
16 172-4405 Ring ret ext $12.89 2 usually ships 1-5 days
17 372-2328 Hopper side foam $12.89 3 usually ships 13-18 days
18 472-3521 RING RET EXT SHAFT 1.125 $12.89 2 usually ships 13-18 days
19 272-9677 Screw 1/4-20 x 1/2 hex head $12.89 3 usually ships 13-18 days
20 172-4142 Nut 3/8 push cap $11.35 1 usually ships 13-18 days
21 172-1939 Washer 13/32 x 1 1/4 x 5/32 $12.89 4 usually ships 13-18 days
22 272-1835 Washer flat $12.89 4 usually ships 13-18 days
23 472-6010 PIN HOPPER HINGE WELDMENT $115.28 1 usually ships 13-18 days
24 372-2329 Hopper lift weldment arm $1,763.86 1 usually ships 13-18 days
25 372-2330 Air exhaust seal $17.74 1 usually ships 13-18 days
26 372-2331 Cover rod $28.94 1 usually ships 13-18 days
27 372-2332 Hopper hinge weldment pin $38.79 2 usually ships 13-18 days
28 372-2333 Hopper lift bumper $13.78 2 usually ships 13-18 days
29 372-2334 Right hand hopper stop $45.00 1 usually ships 13-18 days
30 372-2335 Left hand hopper stop $51.96 1 usually ships 13-18 days
31 372-2336 Prop rod $127.40 1 usually ships 13-18 days
32 372-2337 Cylinder pin $45.00 1 usually ships 13-18 days
33 372-2338 Sleeve bearing $20.91 2 usually ships 13-18 days
34 372-2339 Sleeve bearing $19.25 2 usually ships 13-18 days
35 372-2340 3/8 clip $53.61 1 usually ships 13-18 days
