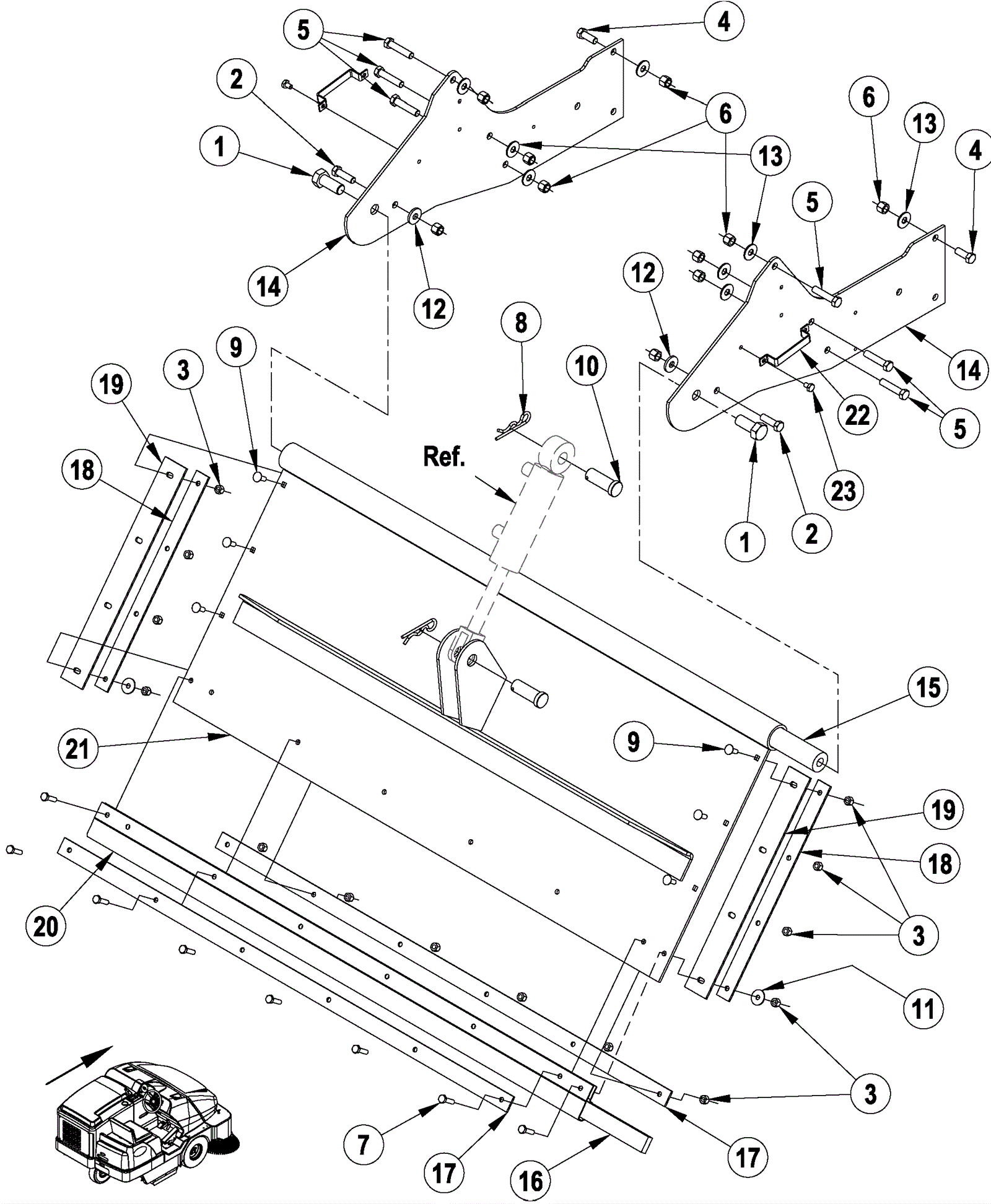

EXTERRA Hopper Assembly 2

#PartDescriptionPriceReqNotesAvailability
1 272-1650 Bolt 5/8-11 X 1 1/2 hex lock (OBSOLETE) $12.31 2 usually ships 1-5 days
2 999-0649 Bolt 3/8-16 x 1 1/4 hex head stainless steel $7.25 2 ships same day
3 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 14 ships same day
4 999-0562 Bolt 3/8-16 x 1 hex head stainless steel $1.50 2 ships same day
5 999-0542 Bolt 3/8-16 x 1 3/4 hex head grade 5 zinc plated $0.99 6 ships same day
6 999-0188 Nut 3/8-16 nylon insert lock zinc plated $0.99 10 ships same day
7 999-0297 Bolt 1/4-20 x 1 hex head stainless steel $2.53 8 ships same day
8 172-2001 Hair cotter pin $10.85 2 usually ships 17-28 days
9 272-3627 Screw 1/4-20 x 3/4 carriage head stainless steel $12.31 6 usually ships 17-28 days
10 472-3513 PIN CLEVIS .750X2.00 $12.31 2 usually ships 17-28 days
11 172-0553 Washer 17/64 x 1/16 flat $10.85 2 usually ships 17-28 days
12 372-1137 Washer $12.31 2 usually ships 1-5 days
13 272-1835 Washer flat $12.31 8 usually ships 17-28 days
14 372-2323 Side broom arm bracket $169.11 2 usually ships 17-28 days
15 372-2324 Hopper door pivot $150.47 1 usually ships 17-28 days
16 572-0620 SEAL HOPPER $18.38 1 ships same day
17 572-0621 CLAMP HOPPER BOTTOM $32.69 2 usually ships 17-28 days
18 572-0622 CLAMP HOPPER DOOR SIDE SEAL $18.38 2 usually ships 17-28 days
19 572-0623 SEAL HOPPER DOOR SIDE $29.23 2 usually ships 17-28 days
20 572-0624 SEAL HOPPER $129.05 1 usually ships 17-28 days
21 472-4157 HOPPER DOOR WELDT $934.35 1 usually ships 17-28 days
22 272-3775 Double clamp $13.76 2 usually ships 1-5 days
23 272-1538 Bolt 1/4-20 X 3/8 hex head lock $12.31 2 usually ships 1-5 days
