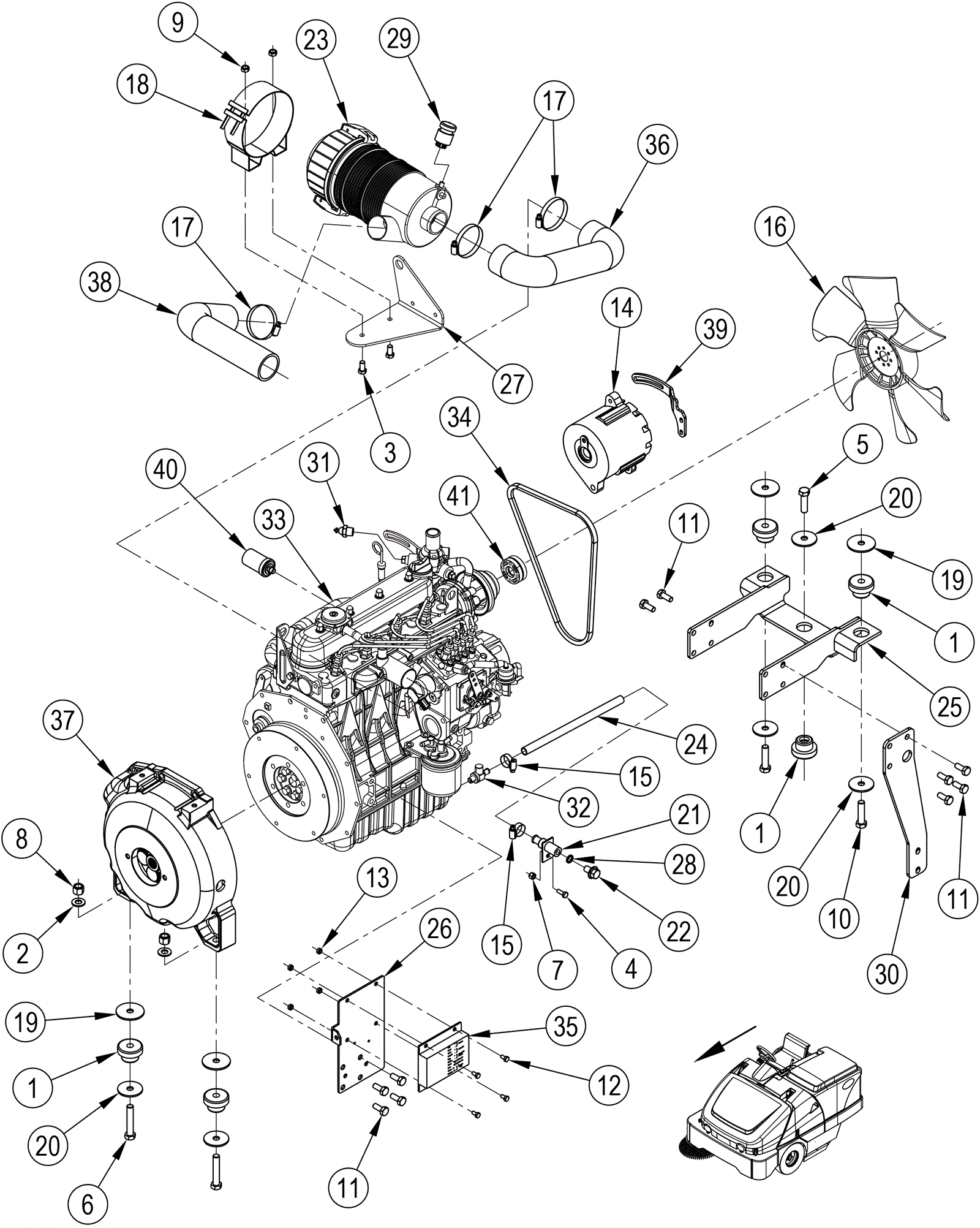

EXTERRA Kubota Diesel Engine Assembly 1

#PartDescriptionPriceReqNotesAvailability
1 172-9852 Isolator mount $53.61 5 usually ships 1-5 days
2 999-0114 Washer 1/2 SAE flat $0.99 2 ships same day
3 372-2116 Screw 3/8-16 x 3/4 hex head $12.89 2 usually ships 13-18 days
4 999-1099 Bolt 1/4-20 x 3/4 hex head stainless steel $0.99 1 ships same day
5 999-0372 Bolt 1/2-13 x 1 3/4 hex head $0.99 1 ships same day
6 999-1573 Screw 1/2-13 x 2 1/2 hex head stainless steel $9.75 2 usually ships 1-5 days
7 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 1 ships same day
8 999-1208 Nut 1/2-13 nylon insert lock stainless steel $2.53 2 ships same day
9 999-0324 Nut 3/8-16 nylon insert lock jam zinc plated $0.99 2 ships same day
10 372-2118 Screw 1/2-13 x 2 heax head $12.89 2 usually ships 13-18 days
11 172-4369 Screw M10-1 1/4 x 25mm hex head $12.89 10 usually ships 1-5 days
12 999-9116 Screw M6-1 x 12mm hex head stainless steel $0.99 4 ships same day
13 272-7824 Nut M6-1 self clinching $12.89 4 usually ships 1-5 days
14 272-7751 105amp alternator $521.71 1 usually ships 1-5 days
15 172-8494 #6 hose clamp SAE $11.35 2 usually ships 1-5 days
16 372-2248 Fan $201.03 1 usually ships 13-18 days
17 272-9977 #36 hose clamp SAE $8.80 3 usually ships 1-5 days
18 372-2122 Air cleaner band (OBSOLETE) $89.35 1 usually ships 13-18 days
19 372-2125 Isolator head washer $32.56 4 usually ships 13-18 days
20 372-1551 Washer $30.60 5 usually ships 13-18 days
21 372-2128 Remote oil drain outlet $79.22 1 usually ships 13-18 days
22 372-2129 Oil drain plug $12.89 1 usually ships 13-18 days
23a 472-8028 AIR CLEANER ASSY $344.77 1 usually ships 13-18 days
23b 372-2133 Safety air filter cartridge $76.04 1 usually ships 13-18 days
23c 372-2134 Primary air filter cartridge $100.16 1 usually ships 13-18 days
24 372-2142 Remote oil drain hose (OBSOLETE) Call for price 1 usually ships 13-18 days
25 372-2249 Diesel engine mount bracket $416.88 1 usually ships 13-18 days
26 272-7831 Fuel pump bracket $100.16 1 usually ships 1-5 days
27 372-2250 Air cleaner bracket $353.25 1 usually ships 13-18 days
28 372-2145 Seal $12.89 1 usually ships 13-18 days
29 372-2146 Air indicator $82.28 1 usually ships 13-18 days
30 372-2251 Muffler hanger bracket $101.65 1 usually ships 13-18 days
31 272-7814 Temperature switch $177.07 1 usually ships 13-18 days
32 372-2252 Engine oil drain valve $232.99 1 usually ships 13-18 days
33 N/A Not available Call for price 1 (4 cylinder diesel engine) usually ships 3-26 days
34 272-7759 V-belt $69.08 1 usually ships 1-5 days
35 272-7816 Governor controller $2,485.07 1 usually ships 13-18 days
36 372-2253 Air intake hose $139.81 1 usually ships 13-18 days
37 372-2254 Bell housing $1,539.52 1 usually ships 13-18 days
38 372-2255 Air intake hose $93.17 1 usually ships 13-18 days
39 272-7760 Diesel alternator bracket $91.65 1 usually ships 1-5 days
40 272-7813 Oil pressure switch $305.09 1 usually ships 13-18 days
41 372-2256 Spacer fan $62.89 1 usually ships 13-18 days
N/S 272-7807 Glow plug timer $344.77 1 usually ships 1-5 days
N/S 272-7751 105amp alternator $521.71 1 usually ships 1-5 days
N/S 272-7808 Fuel filter cartridge $19.25 1 usually ships 1-5 days
N/S 272-7809 Oil filter cartridge $27.26 1 usually ships 13-18 days
N/S 272-7759 V-belt $69.08 1 usually ships 1-5 days
N/S 272-7810 Thermostat $144.38 1 usually ships 1-5 days
N/S 272-7811 Thermostat gasket $76.04 1 usually ships 1-5 days
N/S 272-7812 Starter motor $1,763.86 1 usually ships 1-5 days
N/S 272-7813 Oil pressure switch $305.09 1 usually ships 13-18 days
N/S 372-2257 Engine operator manual $151.33 1 usually ships 13-18 days
N/S 372-2258 Seal crank oil front $320.69 1 usually ships 13-18 days
N/S 372-2259 Seal crank oil rear $208.89 1 usually ships 13-18 days
N/S 472-7711 COUPLING PUMP DRIVE-KUBOTA $368.72 1 usually ships 13-18 days
N/S 272-7832 Kubota diesel harness $761.66 1 usually ships 1-5 days
