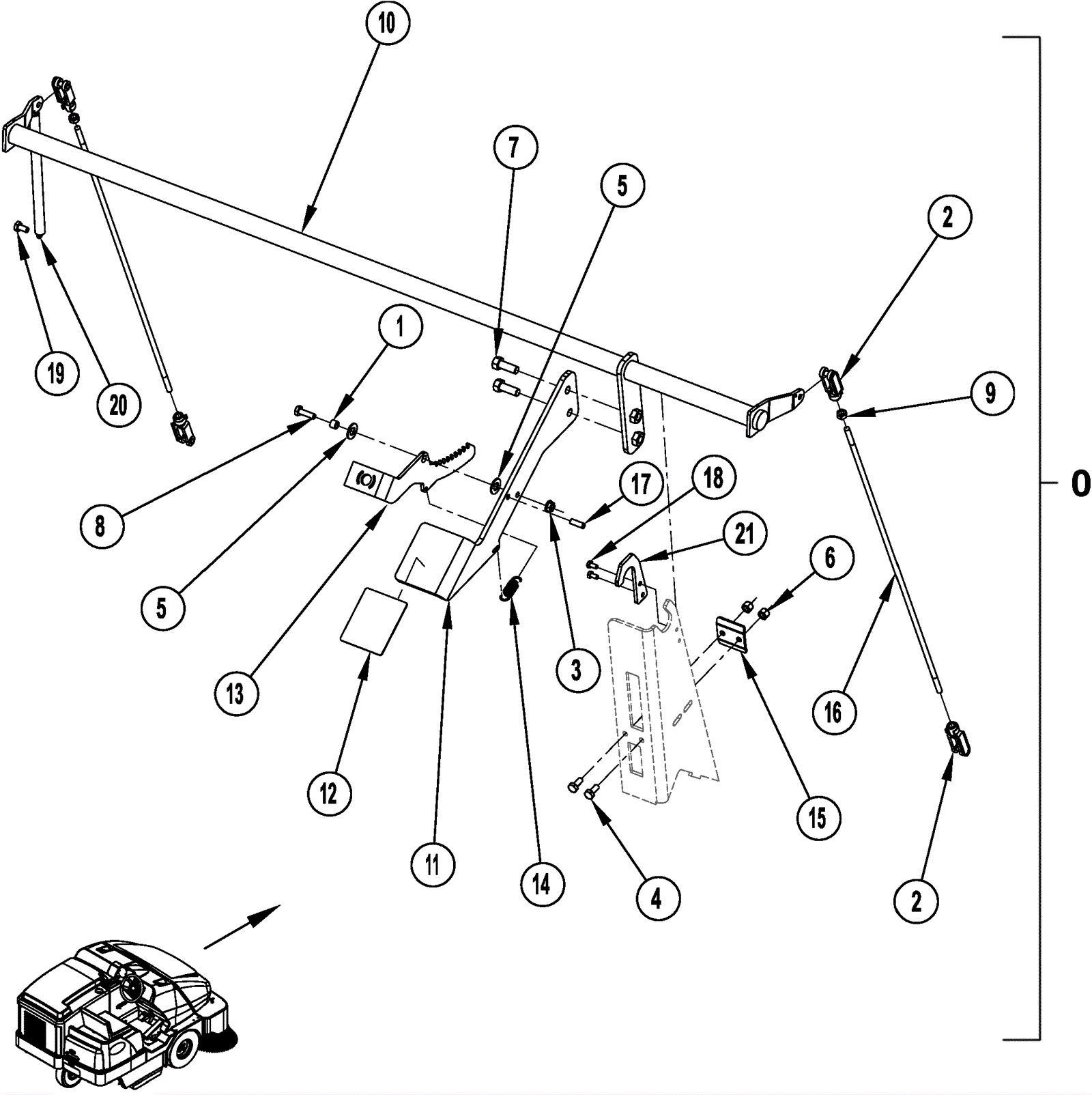

EXTERRA Brake Pedal Assembly

#PartDescriptionPriceReqNotesAvailability
0 372-2042 Break pedal assembly $750.46 1 (includes 1-21) usually ships 17-28 days
1 172-0162 Bushing $13.76 1 usually ships 1-5 days
2 172-9205 Clevis yoke $44.58 4 usually ships 1-5 days
3 999-0595 Nut 1/4-20 flange lock serrated zinc plated $0.99 1 ships same day
4 999-1032 Screw 1/4-20 x 5/8 hex head stainless steel $0.99 2 ships same day
5 999-0120 Washer 3/8 SAE flat $0.99 2 ships same day
6 999-0294 Nut 1/4-20 hex nylon lock type NE stainless steel $1.18 2 ships same day
7 272-6209 Screw 3/8-16 x 1 hex head $12.31 2 usually ships 1-5 days
8 181-0019 Screw 5/16-18 x 3/4 hex head $10.85 1 usually ships 1-5 days
9 172-4974 Nut 1/4-28 hex machine $12.31 2 usually ships 1-5 days
10 372-2043 Brake connecting rod weldment $222.53 1 usually ships 17-28 days
11 472-4134 BRAKE PEDAL $69.01 1 usually ships 17-28 days
12 372-2044 Pedal mat $12.31 1 usually ships 17-28 days
13 372-2045 Parking brake lever $34.14 1 usually ships 17-28 days
14 372-2046 Extension spring $13.76 1 usually ships 17-28 days
15 372-2047 Plate $18.38 1 usually ships 17-28 days
16 372-2048 Rod $24.60 2 usually ships 17-28 days
17 172-4386 Spring pin $12.31 1 usually ships 1-5 days
18 999-0793 Screw 10-24 x 3/8 hex washer slot thread cutting zinc $0.99 2 ships same day
19 272-9677 Screw 1/4-20 x 1/2 hex head $12.31 1 usually ships 1-5 days
20 272-0091 Spring extension 1/2 x 6 cl11j $38.62 1 usually ships 1-5 days
21 372-2049 Brake rod locking tab $12.31 1 usually ships 17-28 days
