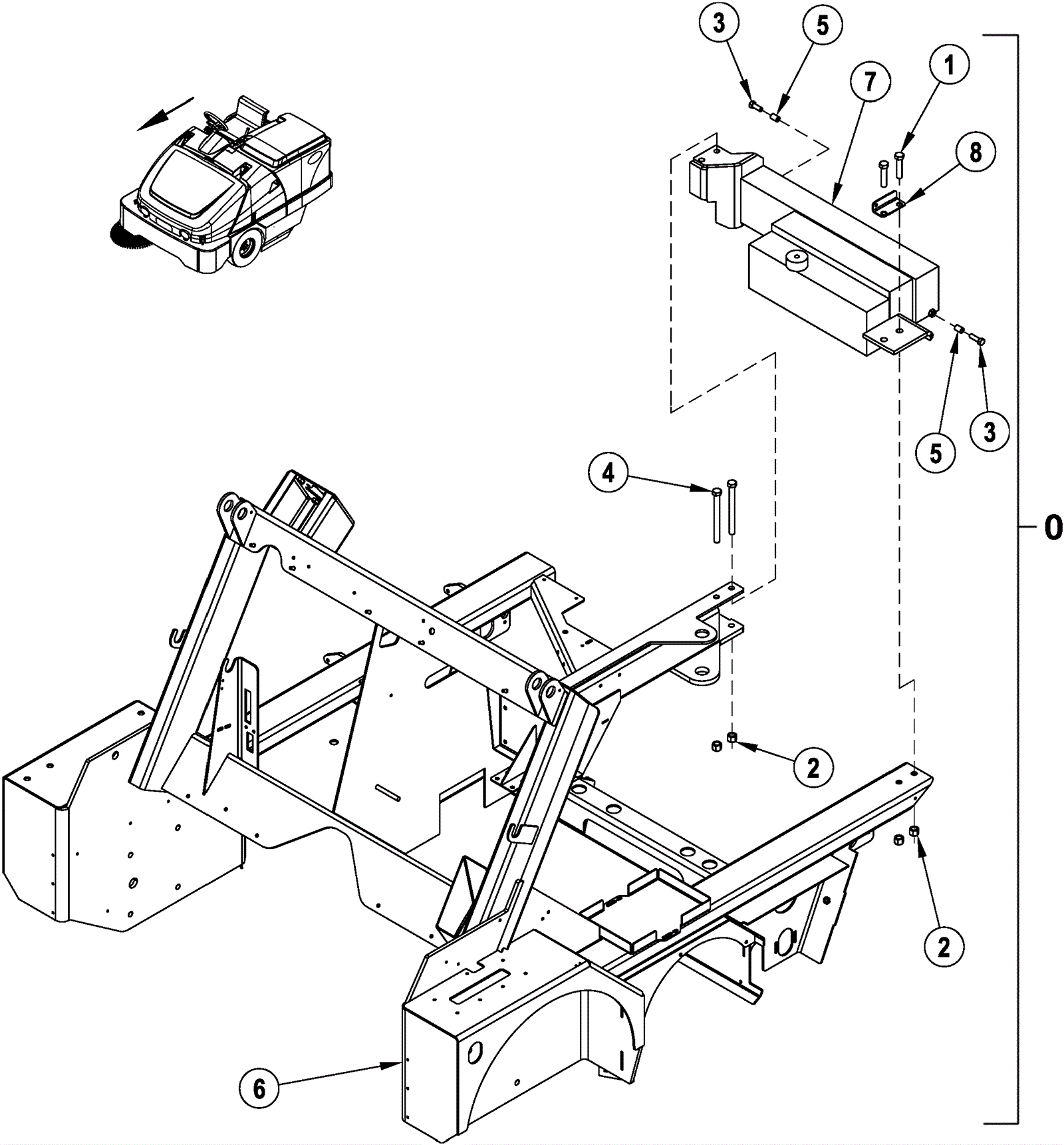

EXTERRA Chassis Assembly

#PartDescriptionPriceReqNotesAvailability
0 372-2008 Chassis assembly $9,458.97 1 (includes 1-8) usually ships 13-18 days
1 999-0558 Bolt 1/2-13 x 1 1/2 hex head stainless steel $1.67 2 ships same day
2 999-1208 Nut 1/2-13 nylon insert lock stainless steel $2.53 4 ships same day
3 272-6209 Screw 3/8-16 x 1 hex head $12.89 2 usually ships 1-5 days
4 472-3484 SCR HX 1/2-13 X 5.50 $12.89 2 usually ships 13-18 days
5 172-2214 Bushing $62.89 2 usually ships 13-18 days
6 372-2039 Chassis weldment $8,015.81 1 usually ships 13-18 days
7 372-2040 Rear bumper weldment $2,084.54 1 usually ships 13-18 days
8 372-2041 Lanyard cover bracket $19.25 1 usually ships 13-18 days
