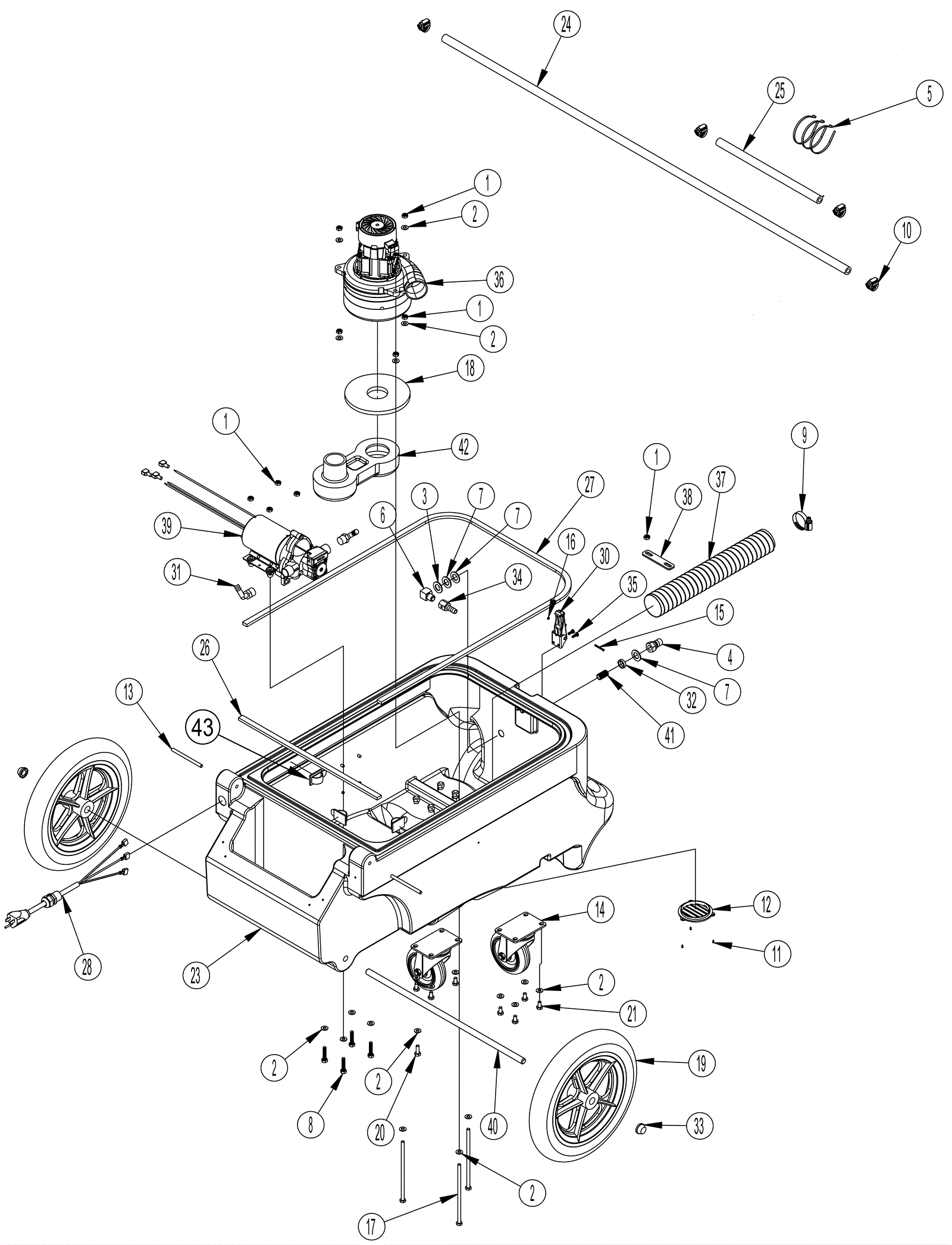

BEXT PRO 100 Base Assembly

#PartDescriptionPriceReqNotesAvailability
1 172-9138 Hardware base kit $46.00 1 (Nut) usually ships 16-41 days
2 172-9138 Hardware base kit $46.00 1 (Washer) usually ships 16-41 days
3 172-9138 Hardware base kit $46.00 1 (Washer) usually ships 16-41 days
4 209-0336 Male quick disconnect $16.95 1 usually ships 16-41 days
5 209-0652 8 inch tie (black) $7.67 3 usually ships 1-5 days
6 209-0609 90 degree elbow $10.85 1 usually ships 16-41 days
7 172-9138 Hardware base kit $46.00 1 (Washer) usually ships 16-41 days
8 172-9138 Hardware base kit $46.00 1 (Bolt) usually ships 16-41 days
9 209-0657 Hose clamp $10.85 1 usually ships 1-5 days
10 209-0604 Hose clamp $10.85 4 ships same day
11 172-9138 Hardware base kit $46.00 1 (Screw) usually ships 16-41 days
12 209-0659 Louver $10.85 1 usually ships 1-5 days
13 209-0648 Hinge pin $12.31 2 usually ships 1-5 days
14 209-0480 Caster wheel (gray) $27.92 2 ships same day
15 172-9138 Hardware base kit $46.00 1 (Screw) usually ships 16-41 days
16 172-9138 Hardware base kit $46.00 1 (Nut) usually ships 16-41 days
17 172-9138 Hardware base kit $46.00 1 (Bolt) usually ships 16-41 days
18 209-0005 Vacuum motor gasket $13.76 1 usually ships 16-41 days
19 209-0357 12 inch wheel $58.62 2 usually ships 16-41 days
20 172-9138 Hardware base kit $46.00 1 (Screw) usually ships 16-41 days
21 172-9138 Hardware base kit $46.00 1 (Screw) usually ships 16-41 days
23 N/A Not available Call for price 1 (100psi no heat base) usually ships 3-26 days
24 172-9136 Hose (red) $10.85 1 usually ships 1-5 days
25 209-6088 Hose (red) $9.26 1 usually ships 1-5 days
26 272-6804 Gasket $9.26 1 usually ships 16-41 days
27 209-6090 Gasket $9.26 1 usually ships 16-41 days
28 272-6805 Pigtail power cord $21.42 1 usually ships 16-41 days
29 172-9140 100PSI pump kit $781.56 1 (Tab) usually ships 16-41 days
30 172-0094 Latch $44.58 1 ships same day
31 172-9140 100PSI pump kit $781.56 1 (Hose barb) usually ships 16-41 days
33 170-5410 Axle cap (OBSOLETE) $10.85 2 usually ships 16-41 days
34 209-0039 Hose barb 1/4 $9.26 1 ships same day
35 172-9138 Hardware base kit $46.00 1 (Bolt) usually ships 16-41 days
36a 209-0330 120V 3 stage vacuum motor $222.53 1 ships same day
36b 209-0658 Carbon brush kit $18.38 1 usually ships 16-41 days
37 209-0344 Vacuum hose $12.31 1 usually ships 16-41 days
38 209-0345 Vacuum hose bar (OBSOLETE) $5.28 1 usually ships 1-5 days
39 172-9140 100PSI pump kit $781.56 1 (Pump) usually ships 16-41 days
40 209-0356 Axle rod $16.95 1 usually ships 16-41 days
41 209-0124 Nipple $11.57 1 usually ships 16-41 days
42 209-0132 Vacuum manifold $116.47 1 usually ships 16-41 days
43 170-7622 Wire tie tab $12.31 3 usually ships 1-5 days
KIT 1 172-9138 Hardware base kit $46.00 1 (includes: 1-3, 7-8, 11, 15-17, 20-21 and 35) usually ships 16-41 days
KIT 2 172-9140 100PSI pump kit $781.56 1 usually ships 16-41 days
N/S 272-6802 Main harness $192.01 1 usually ships 16-41 days
N/S 209-0354 25 foot power cord $95.66 1 usually ships 16-41 days
N/S 172-2906 Priming hose with quick disconnect $70.99 1 usually ships 16-41 days
