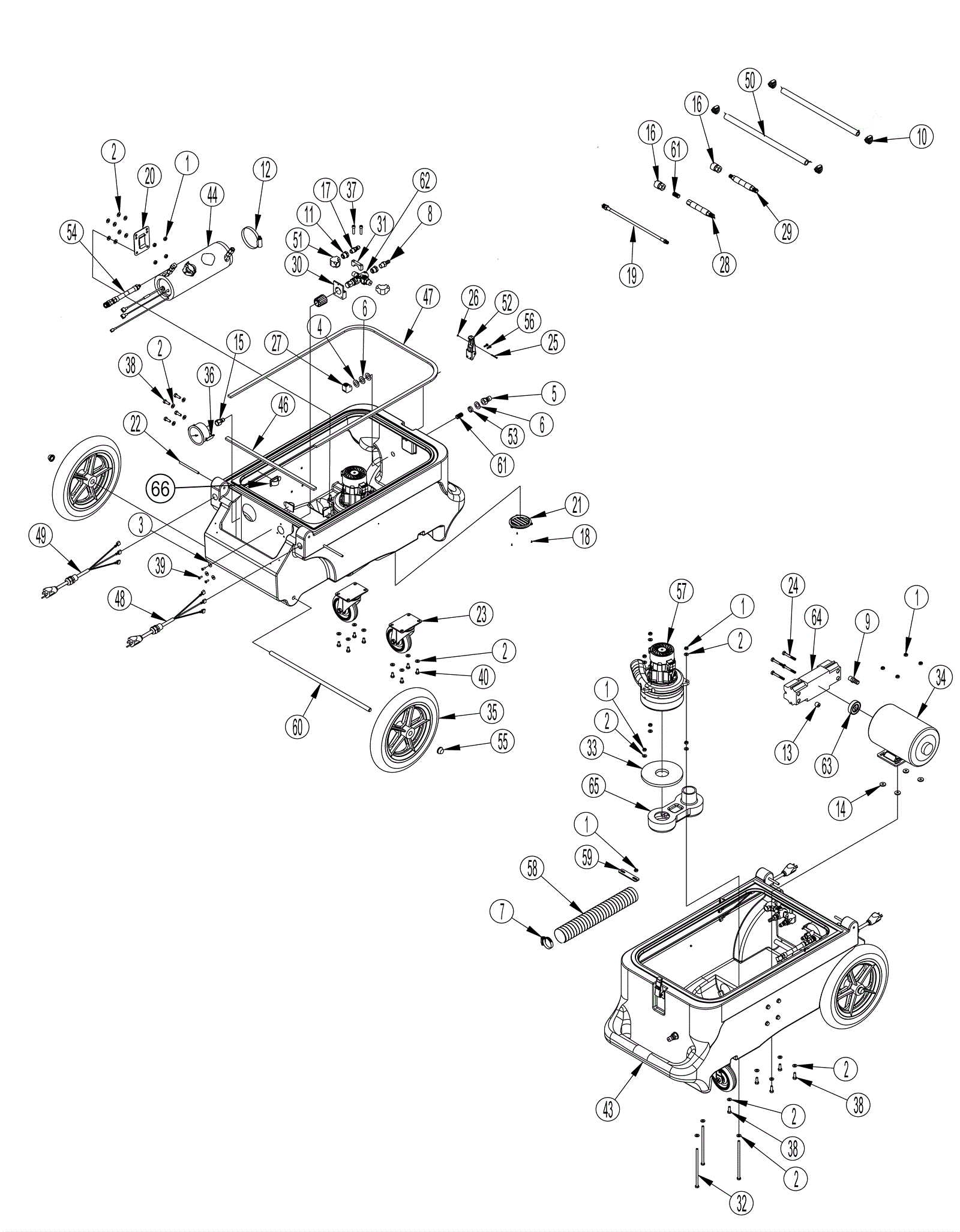

Base Assembly

#PartDescription ReqNotesAvailability
1 172-9138 Hardware base kit 1 (Nut)
2 172-9138 Hardware base kit 1 (Washer)
3 172-9138 Hardware base kit 1 (Washer)
4 172-9138 Hardware base kit 1 (Washer)
5 209-0336 Male quick disconnect 1
6 172-9138 Hardware base kit 1 (Washer)
7 209-0657 Hose clamp 1
8 172-9332 Unloader valve kit 1 (Hose barb)
9 209-0667 Pump kit 1 (Hose barb)
10 209-0604 Hose clamp 4
11 172-9332 Unloader valve kit 1 (Bushing)
12 209-0405 Hose clamp 1
13 209-0667 Pump kit 1 (Pipe)
14 172-9138 Hardware base kit 1 (Washer)
15 209-0624 1/4 inch quick connect brass 1
16 272-6812 1/4 inch quick connect 2
17 172-9332 Unloader valve kit 1 (Plug)
18 272-7839 Turbo exhaust in gasket 1 (Screw)
19 209-0622 Braided hose 1
20 209-0621 Heat exchanger mount 1
21 209-0659 Louver 1
22 209-0648 Hinge pin 2
23 209-0480 Caster wheel (gray) 2
24 172-9138 Hardware base kit 1 (Screw)
25 172-9138 Hardware base kit 1 (Screw)
26 172-9138 Hardware base kit 1 (Nut)
28 209-0384 Pulsation dampening hose 1
30 209-6095 Valve mounting plate 1
31 209-6096 Valve mounting clamp 1
32 172-9138 Hardware base kit 1 (Bolt)
33 209-0005 Vacuum motor gasket 1
34 209-0667 Pump kit 1 (Motor)
35 209-0357 12 inch wheel 2
36 209-0380 Pressure gauge 1
37 172-9138 Hardware base kit 1 (Screw)
38 172-9138 Hardware base kit 1 (Screw)
39 172-9138 Hardware base kit 1 (Screw)
40 172-9138 Hardware base kit 1 (Screw)
42 272-6802 Main harness 1
43 372-1158 400psi base 1
44 172-9141 120V heater 1
45 209-6097 Hose (red) 1
46 272-6804 Gasket 1
47 209-6090 Gasket 1
48 272-6805 Pigtail power cord 1
49 272-6811 Pigtail power cord (red) 1
50 172-2327 Wire reinforced clear hose (OBSOLETE) 1
51 172-9332 Unloader valve kit 1 (90 degree elbow)
52 172-0094 Latch 1
53 209-0125 Fiber bushing 1
54 209-0370 Hose assembly 1
55 170-5410 Axle cap (OBSOLETE) 2
56 172-9138 Hardware base kit 1 (Bolt)
57a 209-0330 120V 3 stage vacuum motor 1
57b 209-0658 Carbon brush kit 1
58 209-0344 Vacuum hose 1
59 209-0345 Vacuum hose bar (OBSOLETE) 1
60 209-0356 Axle rod 1
61 209-0124 Nipple 1
62 172-9332 Unloader valve kit 1 (Unloader valve)
63 209-0667 Pump kit 1 (Bearing and cam assembly)
64 209-0667 Pump kit 1 (Pump)
65 209-0132 Vacuum manifold 1
66 170-7622 Wire tie tab 3
KIT 1 172-9138 Hardware base kit 1 (includes: 1-4, 6, 14, 18, 24-26, 32, 37-40 and 56)
KIT 2 209-0667 Pump kit 1 (includes: 9, 13, 24, 34, 63 and 64)
KIT 3 172-9330 Pump head kit 1 (includes: 9, 13, 63 and 64)
KIT 4 172-9331 Pump motor kit 1 (includes: 34 and 63)
KIT 5 172-9332 Unloader valve kit 1 (includes: 8, 11, 17, 51 and 62)
N/S 209-0354 25 foot power cord 2
N/S 172-2906 Priming hose with quick disconnect 1
N/S 209-0333 Bi-metallic heat repair kit 1
N/S 209-0378 21 inch hose assembly 1
